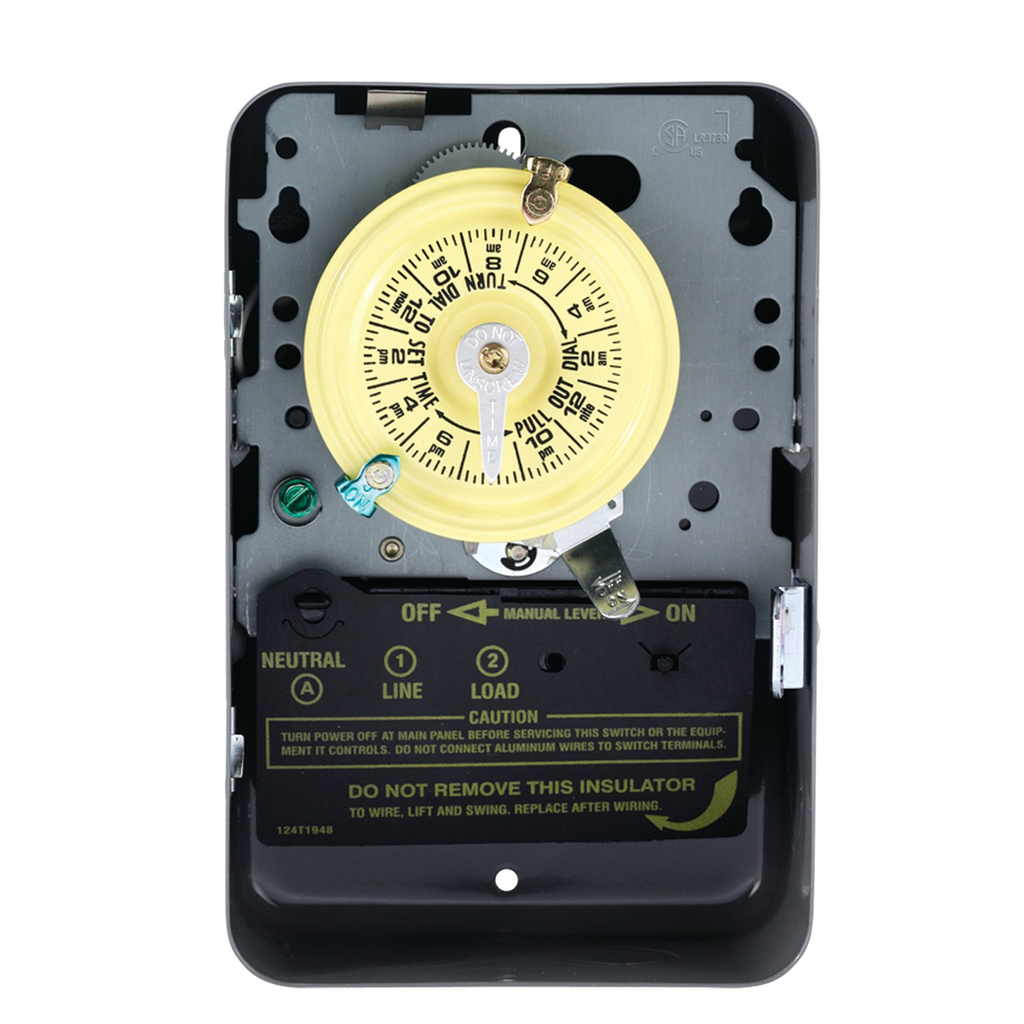

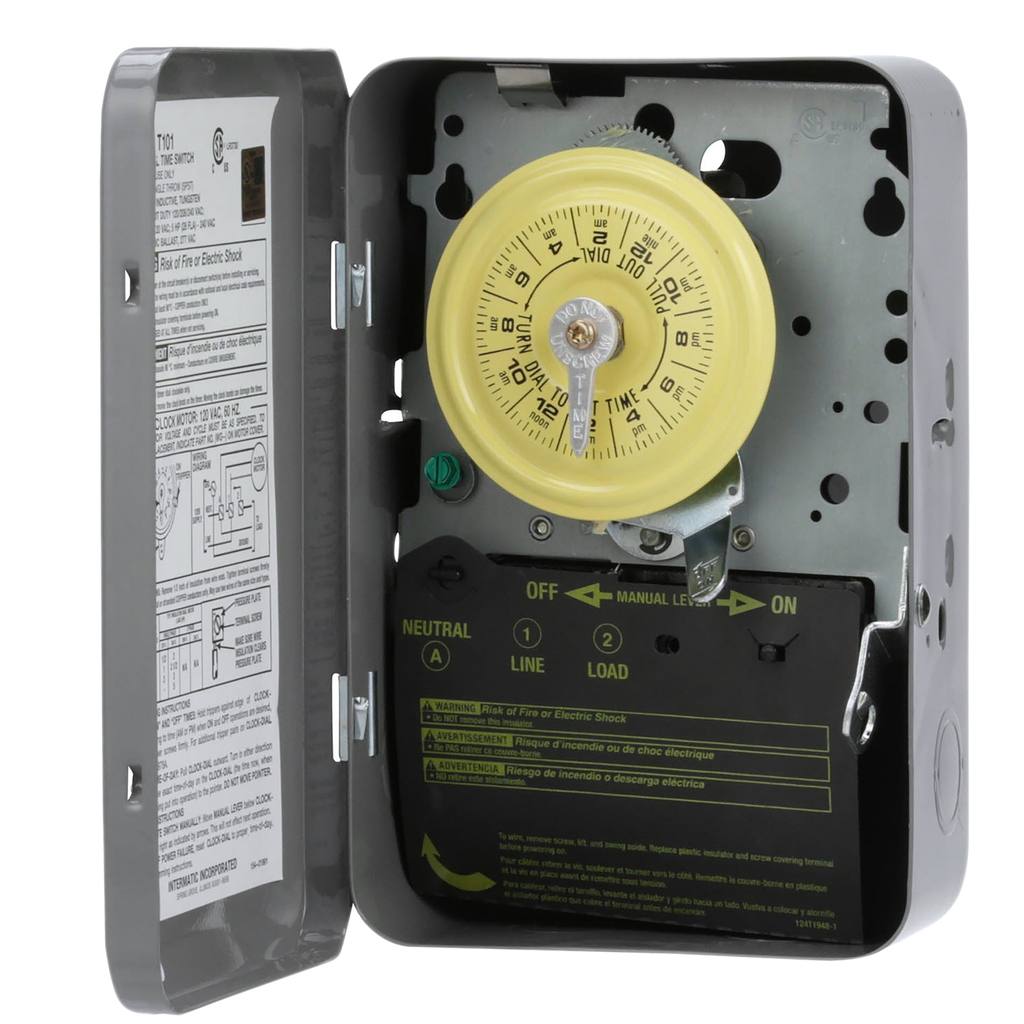

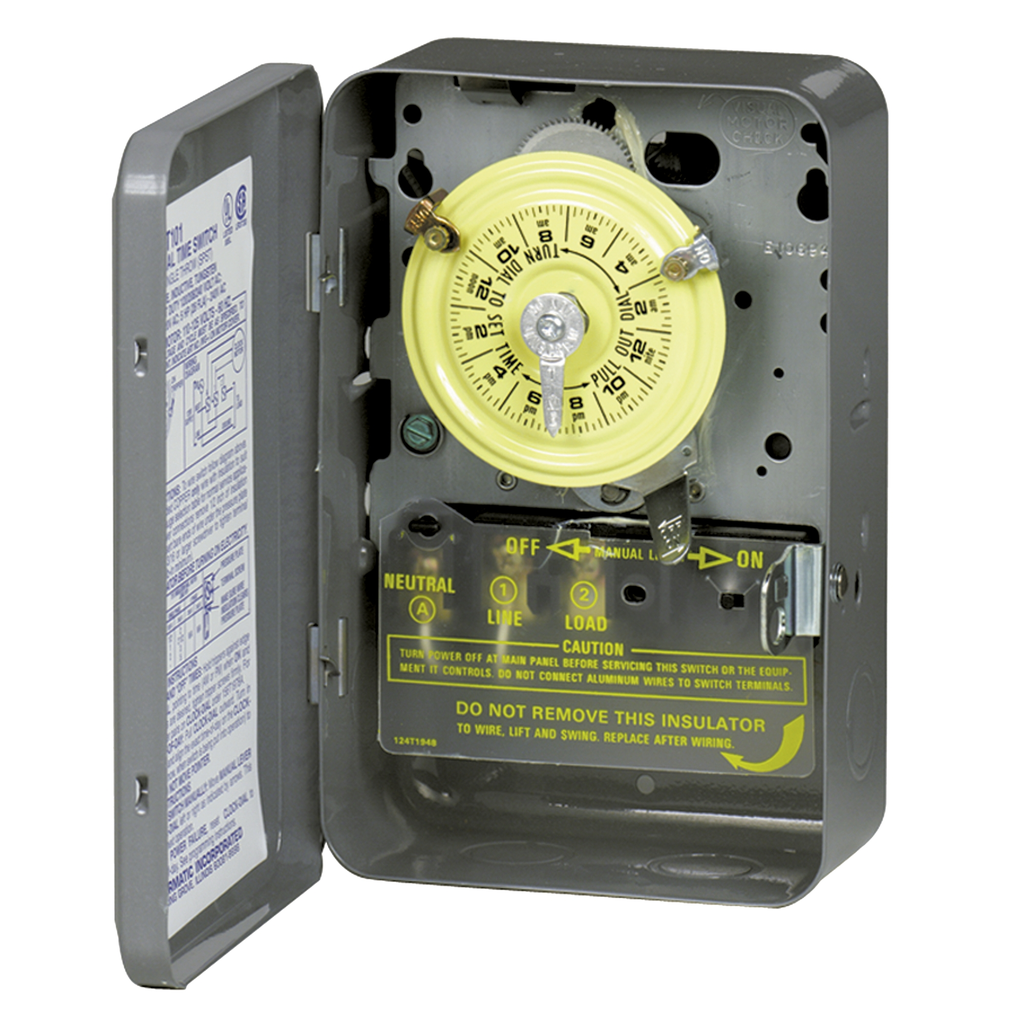

Intermatic T101 40A, 125V 24 Hour Heavy Duty Indoor Time Switch

Manufacturer: Intermatic, Inc | Catalog # T101 | Cooper Electric Part # 15831
$148.33/ea
ea
Log in or register to view your price, purchase history, and more!
5 available

For Pick Up

at Ocean Opens Thursday 8:00am ET
99 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
The T100 Series mechanical time switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.

Technical Information

Action
SPST
Amperage
40 Amp
Applications
Commercial, Industrial, Residential, Outdoor, HVACR
Connection Type
Teeter Type
Contact Configuration
SPST - 1 NO
Contact Rating
40 A at 120 - 277 VAC (Tungsten), 40 A at 120 - 480 VAC (Resistive)
Enclosure
NEMA 1
Enclosure Type
Indoor type 1 metal
Frequency
60 Hz
Input Voltage
120 V
Material
Metal
Max Operating Temperature
130 degrees F
Max Wire Size
8 AWG
Min Operating Temperature
-40 degrees C
Min Wire Size
14 AWG
Mounting Configuration
Wall mount
Mounting Type
Wall Mount
Number of Circuits
1
Number of Poles
1 Pole
Operating Temperature
-40 To 130 degrees F
Power Consumption
3 W
Power Source
2 hp
Size
5 LENGTH X 3 WIDTH X 7-3/4 HEIGHT IN, 12.70 LENGTH X 7.62 WIDTH X 19.69 HEIGHT CM
Switch Type
SPST
TC Connection
Teeter Type
Temperature Rating
-40 to 130 degrees F
Type
Electromechanical
Voltage
125 Volt
Wattage
3 Watt

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275000018
Color
Gray
Environmental Conditions
Indoor
GTiN
00078275000018
Product Category
Medical/Dental/Veterinary - Timers
Product Type
Medical/Dental/Veterinary - Timers
Product UPC
07827500001
Used With
Lighting, signs

Dimensions

Depth
3.437 Inch
Height
7-7/8 Inch
Warranty Length
1 yr
Width
5.125 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - Lead
Country of Origin
Mexico
Features
  • Direct 24-hour control of most loads
  • Up to 12 ON/OFF operations each day with minimum ON/OFF times of one hour
  • Manual override
  • One ON and one OFF tripper included
