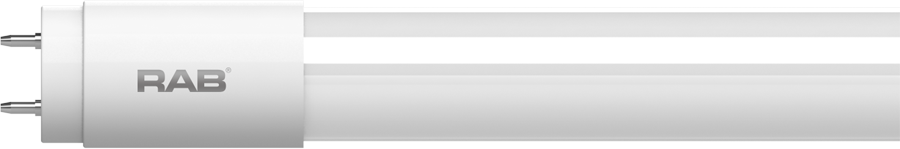

Product image for RAB T8-7.5-24G-835-HYB LED GLS 2FT
Image thumbnail 0
Image thumbnail 1
Email

RAB T8-7.5-24G-835-HYB LED GLS 2FT

Manufacturer: Rab Electric Mfg | Catalog # T8-7.5-24G-835-HYB | Cooper Electric Part # 1582957
$13.89/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Linear Tubes 1150 Lumens T8 7.5W 2 Feet Glass 80CRI 3500K Ballast Hybrid

Technical Information

Applications
Damp Locations,Totally Enclosed Fixtures
Average Rated Life
50,000 hr
Base Type
G13
Beam Angle
220 degrees
Beam Spread
210 degrees
Bulb Shape
T8
Color Accuracy
80
Color Rendering Index
80
Color Temperature
3500 K
Correlated Color Temp
3,500 K
Dimmable?
No
Efficacy
153 LPW
Input Wattage
7.5
Lumens
115,000 Lumen
Material
Coated Glass
Operating Temperature
-25 degrees C
Power Factor
>0.9,>0.9
Type
HID Lamps&Specialities
Wattage
7.5 Watt

Manufacturer Information

Brand
Rab Design Lighting

General Product Info

12-Digit UPC
019813834184
Color
3500 K
Finish
White
GTiN
00019813834184
Product UPC
01981383418
Weight
0.3 lb

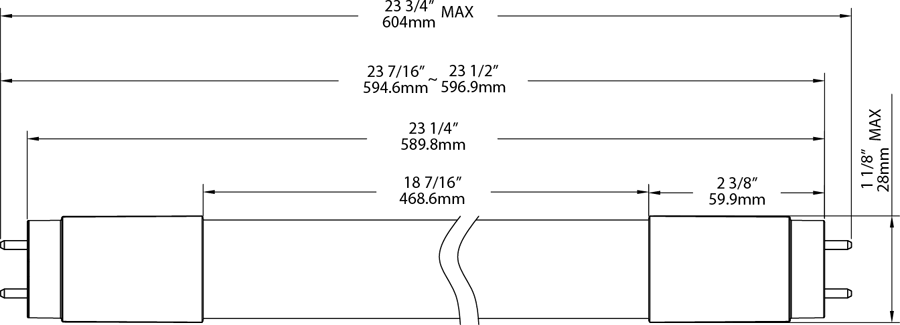

Dimensions

Length
2 Foot
Warranty Length
5 yr
Features
  • Direct Replacement for Fluorescent Lamps: F32T8/32W, F32T8/30W, F32T8/28W, F32T8/25W
  • TYPE A - Plug and play compatible with most common commercial instant start T8 electronic ballasts
  • TYPE B - can be wired directly to line voltage 120-277V. Can we wired using Single or Double ended method
  • Works with both shunted and non-shunted sockets
  • 50,000 hour Lifespan
  • Rated for use in enclosed and open fixtures in dry or damp locations
  • Diffused frosted lens will maintain the same light quality over time
  • Instant on full brightness
  • Environmentally friendly, no mercury used
  • NSF Listed: NSF/ANSI Standard 2 - Food Equipment - Splash Zone (Not for Direct Food Zone without additional fixture considerations)
  • Type A: Compatible with RAB specified 0-10V dimming system; Type B: Phase cut
  • Equivalency
  • Warranty
