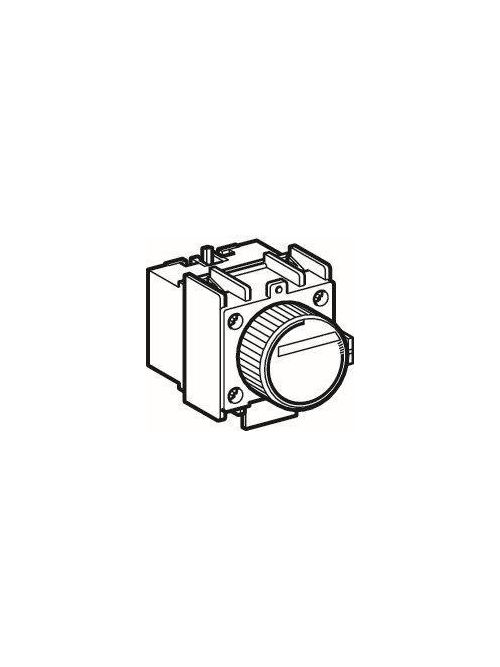

Product image for Square D LADR2 690 VAC 1NO 1NC 0.1 to 30 Second Pneumatic Time Delay Auxiliary Contact Block
Image thumbnail 0
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

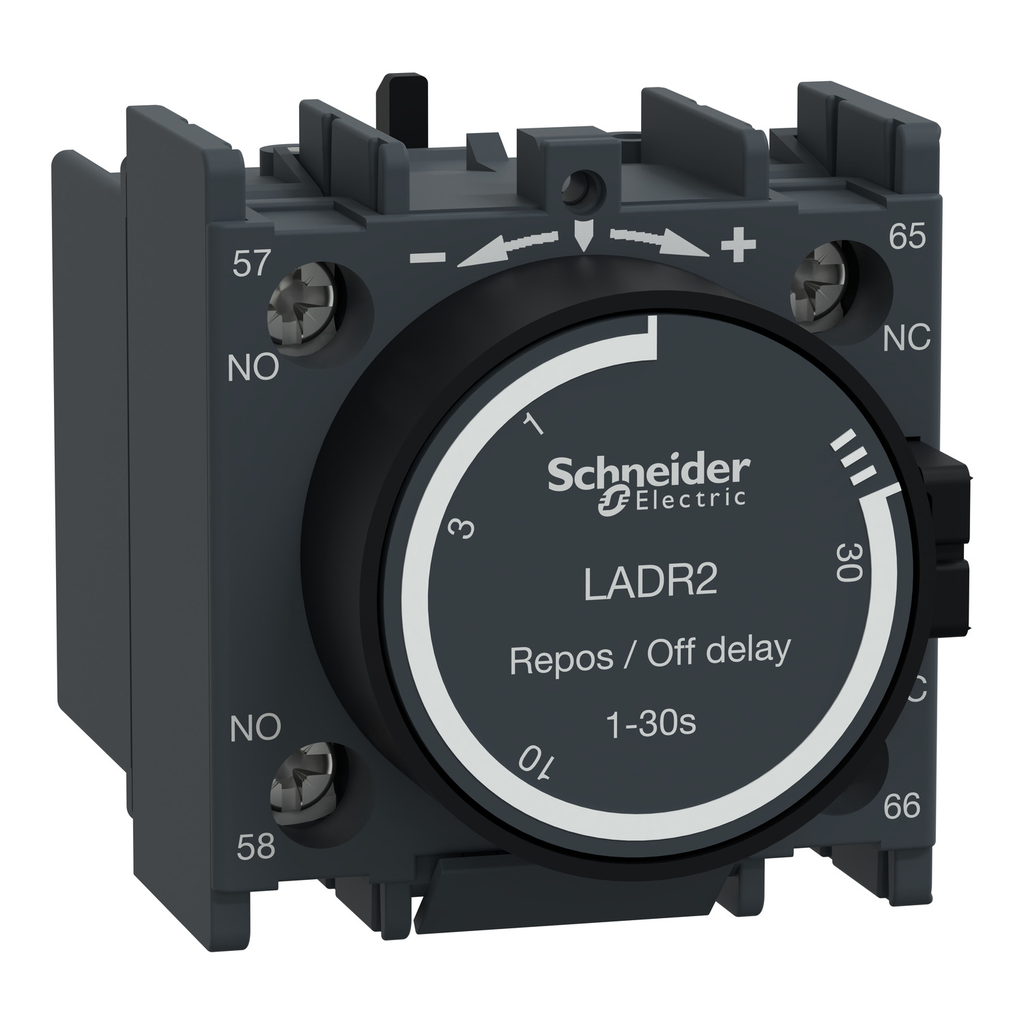

Square D LADR2 690 VAC 1NO 1NC 0.1 to 30 Second Pneumatic Time Delay Auxiliary Contact Block

Manufacturer: Square-D / Schneider | Catalog # LADR2 | Cooper Electric Part # 158190
$155.63/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
TeSys D time delay auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 1NO+1NC contacts rated up to 10A 690V AC, Off-delay setting range 1-30s, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach).

Technical Information

Applications
OFF-DELAY AUXILIARY
Coil Voltage
690 V AC 25...400 HZ
Contact Configuration
1 NO + 1 NC
Contact Rating
10 A 60 AC
Operating Temperature
-5-60 Adegrees C
Range
TeSys
Standard
CSA C22.2 No 60947-5-1,EN/IEC 60947-5-1,GB/T 14048.5
Storage Temperature
-60-80 degrees C
TC Connection
SCREW CLAMP TERMINALS 1 1-2.5 MMAFLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 1 1-2.5 MMAFLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 1-2.5 MMAFLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 1-2.5 MMAFLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 1 1-2.5 MMASOLID WITH CABLE END- SCREW CLAMP TERMINALS 1 1-2.5 MMASOLID WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 1-2.5 MMASOLID WITH CABLE END- SCREW CLAMP TERMINALS 2 1-2.5 MMASOLID WITHOUT CABLE END
Type
TIME DELAY AUXILIARY CONTACT BLOCK
Voltage
690 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TESYS,TESYS D-TESYS D CONTROL RELAY-TESYS F

General Product Info

12-Digit UPC
389110386182
Color
Gray
GTiN
03389110386189
Product UPC
78590138618

Dimensions

Depth
61 mm
Height
48 mm
Warranty Length
18 mth
Width
44 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: Cancer - www.P65Warnings.ca.gov
Certifications
CCC,CSA,EAC,IECEE CB Scheme,UKCA,UL
Country of Origin
France
Prop 65
  • WARNING: Cancer - www.P65Warnings.ca.gov
