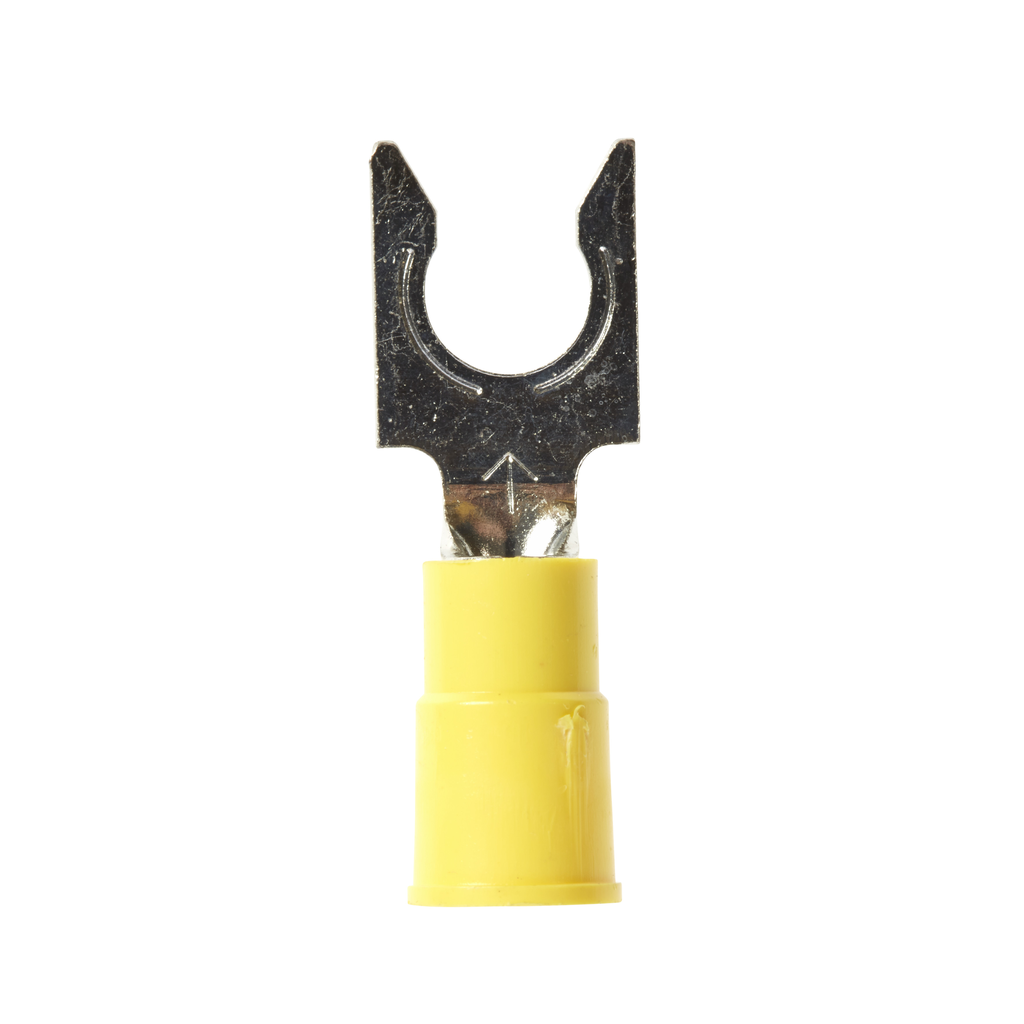

Product image for 3M 7100164148 3M™ Scotchlok™ Vinyl
Email

3M 7100164148 3M™ Scotchlok™ Vinyl

Manufacturer: 3M | Catalog # 7100164148 | Cooper Electric Part # 1581759
$0.99/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
3M™ Scotchlok™ Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Technical Information

Barrel Length
0.25 in
Barrel Type
Butted
Conductor Size
12-10 AWG
Insulation Material
Vinyl
Material
PVC
Standard
UL And CSA
Stud Size
1/4 in
Terminal Size
12 - 10 AWG
Terminal Style
Locking
Terminal Type
Fork
Type
Fork

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
054007021179
GTiN
00054007021179
Product UPC
05400702117

Dimensions

Length
1.24 Inch
Overall Length
1.24 in
Thickness
0.04 in
Width
0.43 in

Certifications and Compliance

Country of Origin
USA
Features
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Spring-like tongue firmly fits around the stud
  • Electrolytic copper construction offers good conductivity
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V-rated for signs, fixtures or luminaires
