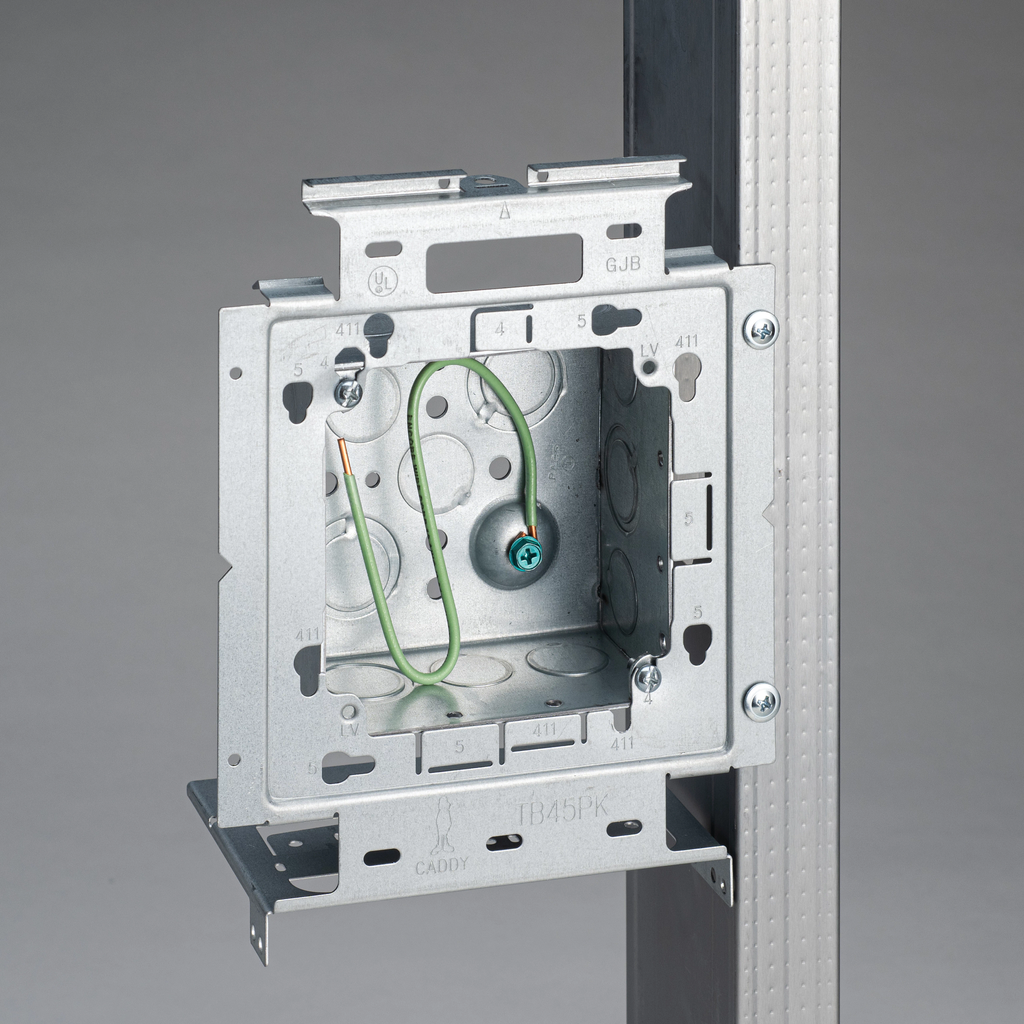

Caddy TB45PK Box Mounting Plate with Far Side Support, 4", 4-11/16", 5" Box

Manufacturer: Erico, Inc | Catalog # TB45PK | Cooper Electric Part # 1580968
$399.40/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Friday 8:00am ET
1,700 available

For Delivery

Order by Friday 5:00pm ET for delivery Monday
Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page Product Brochure
Box Mounting Plate with Far Side Support, 4", 4 11/16", 5" Box

Technical Information

Material
Steel

Manufacturer Information

Brand
nVent Caddy

General Product Info

12-Digit UPC
782856993629
Finish
Pregalvanized
GTiN
00782856993629
Product UPC
78285699362
Features

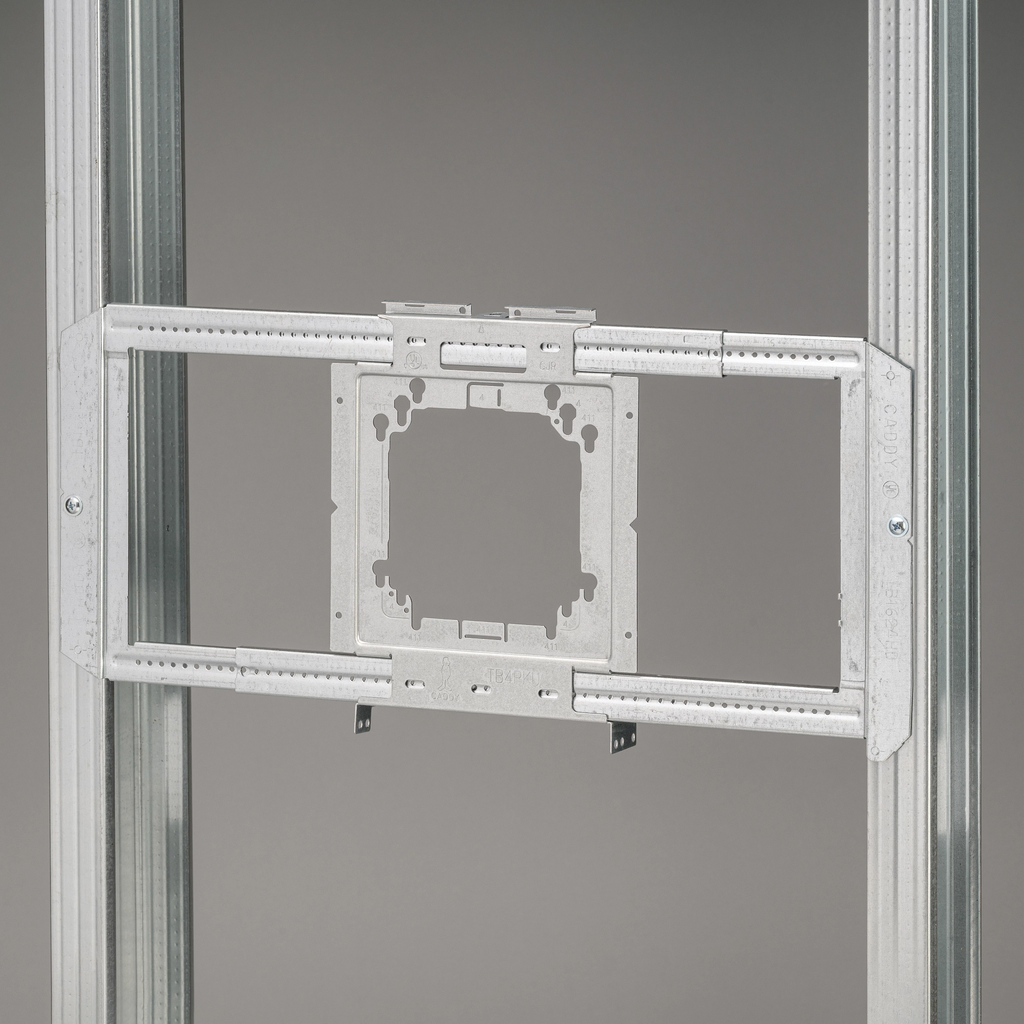

  • Snap-on installation to Heavy Duty Telescoping Bracket allows for easy positioning along bracket

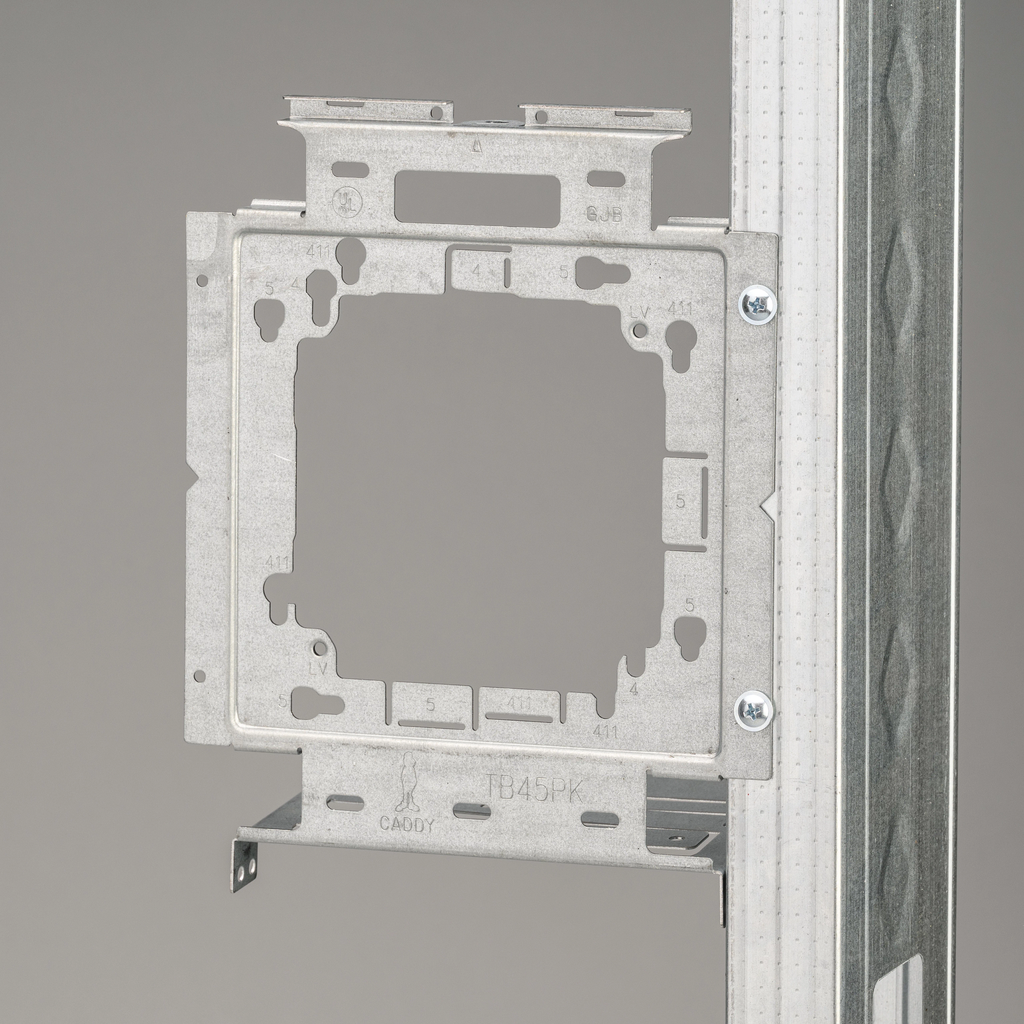

  • Can also be mounted directly to metal or wood studs

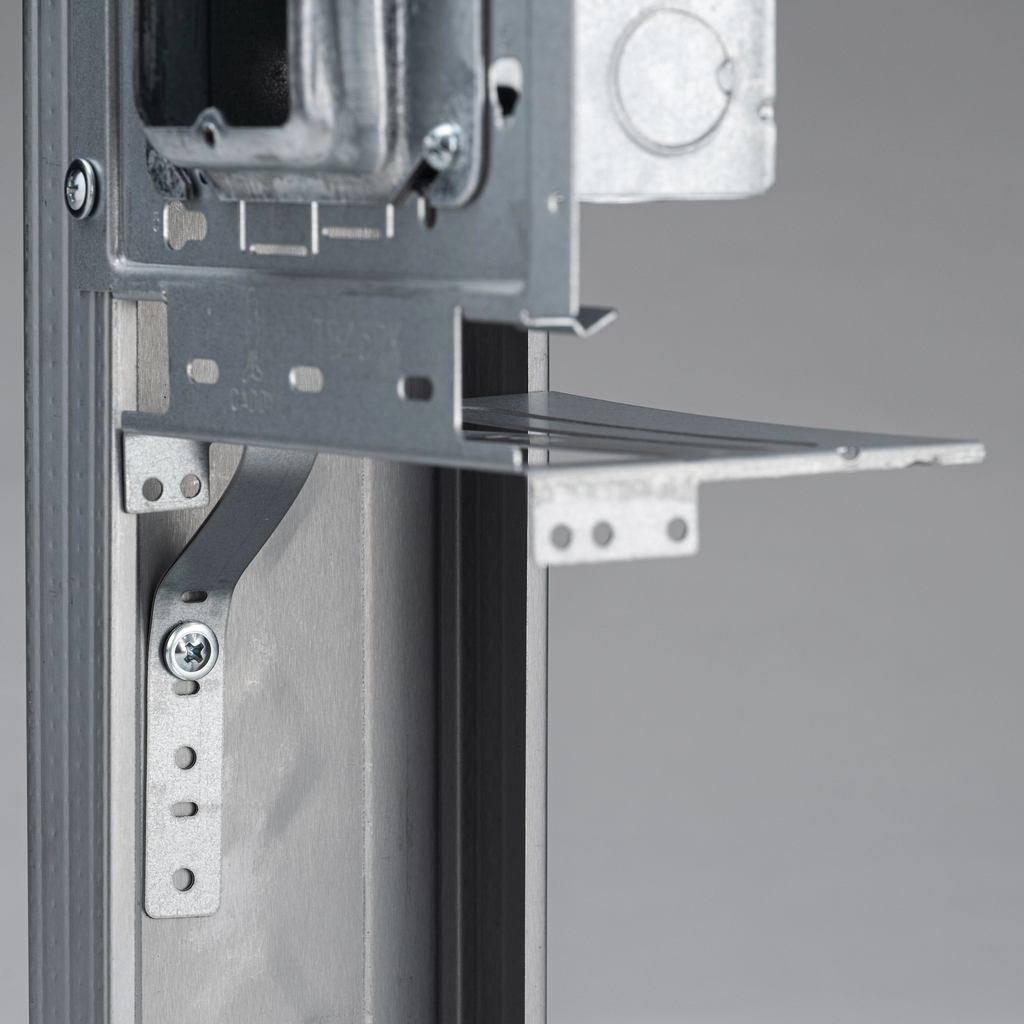

  • Innovative far side support allows bracket to be installed on virtually any stud depth and up to 3\" wide studs
  • Key holes provide ease of installation and positive location when mounting boxes
  • Extruded holes allow mounting of mud rings for both power and data applications
  • Screws can be removed and reinstalled in extruded holes multiple times without compromising holding strength
  • Accepts vertically or horizontally mounted single and double gang adjustable mud rings
  • Box Lock tab secures box to bracket during assembly and allows mud ring to be removed following installation on the stud, providing easy frontal access to the inside of the box
  • Box Lock feature is ideal for prefab assemblies
  • Patented
Certifications
  • UL ANSI/UL 514A
