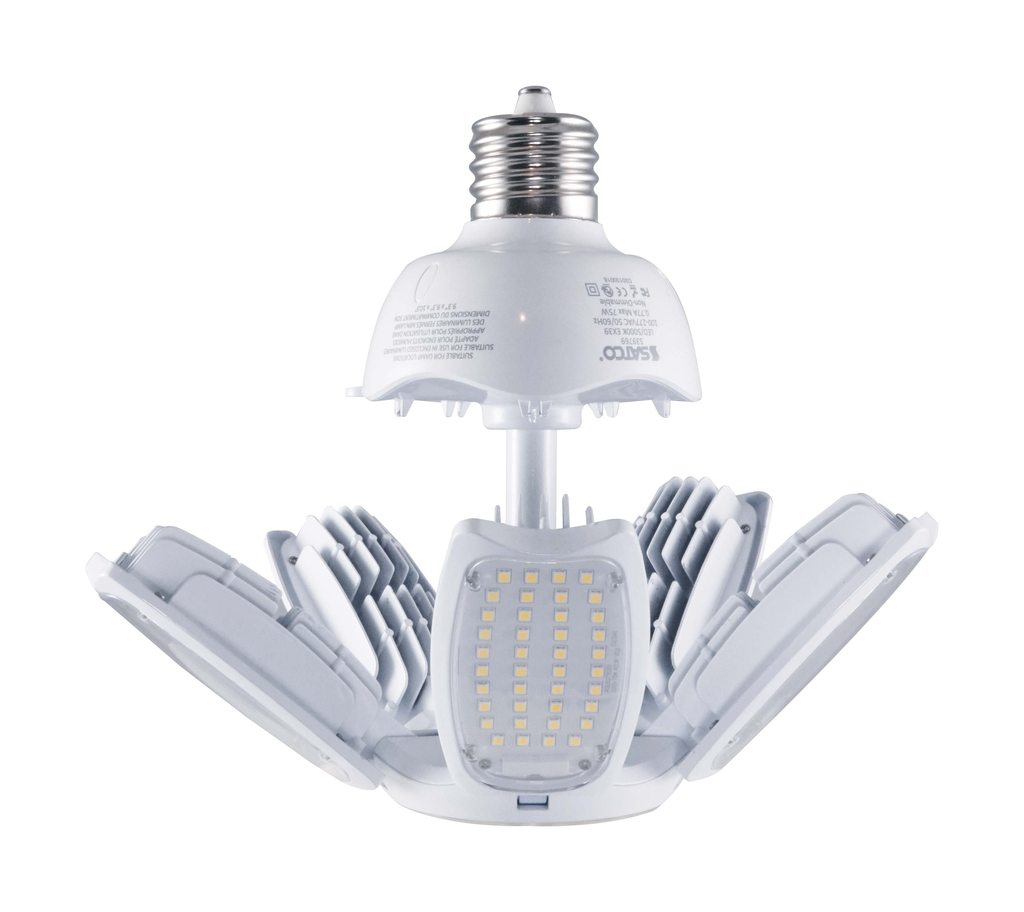

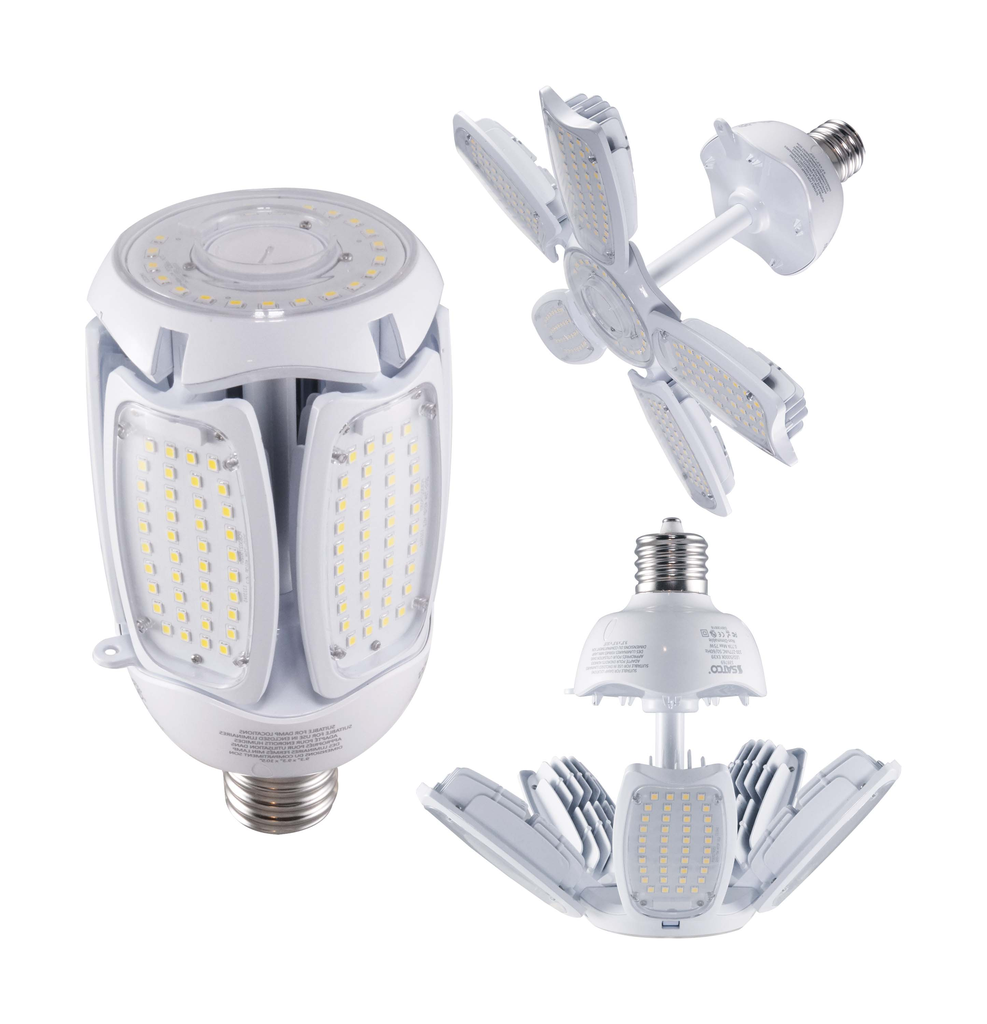

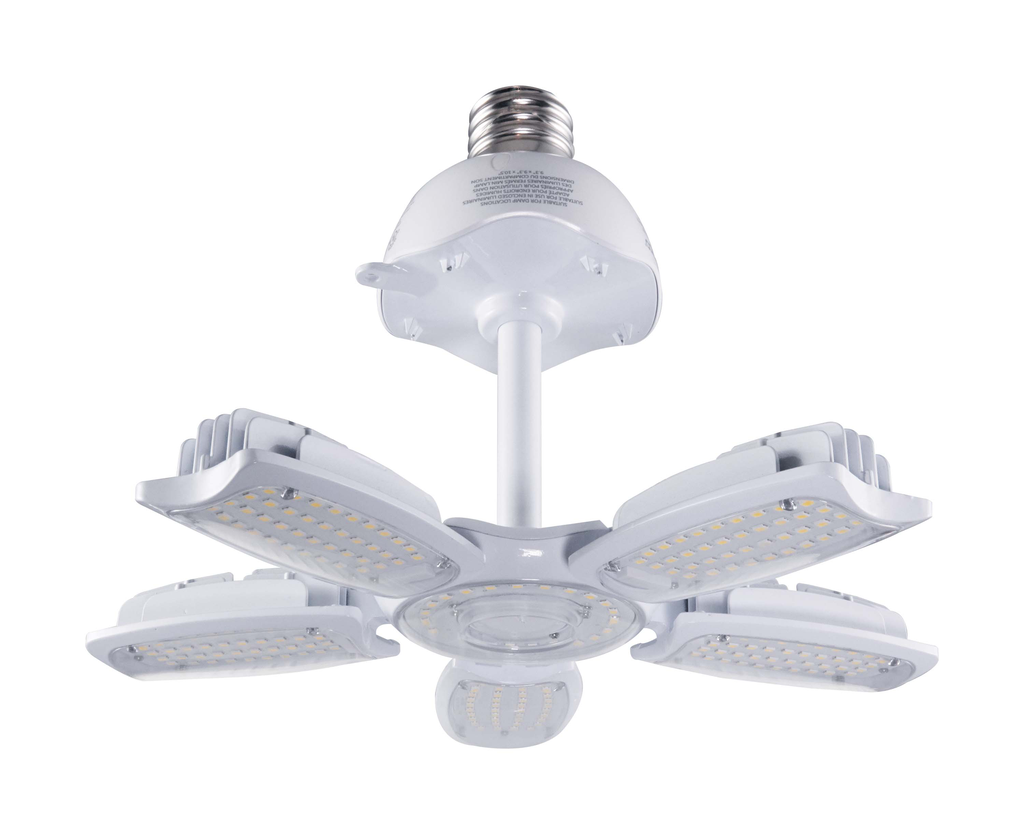

Product image for Satco S39752 60 Watt LED HID Replacement; 5000K; Mogul extended base; Adjustable Beam Angle; Type B Ballast Bypass;100-277 Volt
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Email

Satco S39752 60 Watt LED HID Replacement; 5000K; Mogul extended base; Adjustable Beam Angle; Type B Ballast Bypass;100-277 Volt

Manufacturer: Satco | Nuvo | Catalog # S39752 | Cooper Electric Part # 1579981
$135.39/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
1 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
Product Spec Sheet
60 Watt LED HID Replacement - 5000K - Mogul Extended Base - Adjustable Beam Angle - 100-277 Volts

Technical Information

Amperage
0.600-0.217 Amp
Applications
For Enclosed Fixture and Damp Locations
Average Rated Life
50000 hr
Beam Angle
120, 150, 260
Beam Spread
120/150/260
Color Accuracy
80
Color Rendering Index
80
Color Temperature
5000 K
Correlated Color Temp
5,000 K
Dimmable?
No
Incandescent Equivalent
500 W
Indoor Outdoor
Indoor;Outdoor
IP Rating
IP64
Lens Color
Clear
Lens Material
Thermo Plastic
Lumens
8,400 Lumen
Material
Aluminum,Steel,Thermo Plastic
Operating Temperature
-20 degrees C
Power Factor
0.9
Technology Type
LED
Temperature Rating
-20 to 65 degrees C
Type
Non-Dimmable
Voltage
100 Volt
Wattage
60 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
NUVO Lighting

General Product Info

12-Digit UPC
045923397523
Environmental Conditions
Damp Location Rated
Finish
Clear
GTiN
00045923397523
Housing Color
White
Product UPC
04592339752
Weight
2.05 lb

Dimensions

Diameter
4.13 Inch
Height
9.8 Inch
Warranty Length
5 yr
Width
9.3 in

Certifications and Compliance

Country of Origin
China
Features
  • Greater Efficiency
  • Improved Heat Dissipation
  • Built-In 4kv Surge Protection
  • Multiple Beam Angle Options
  • Port For Motion Sensor
  • L:7.76 D:4.13
  • PIR Sensor available as an accessory
Installation Notes
  • Not for use in vapor tight fixtures.
Ballasting Requirements
  • Ballast Bypass
Replaced By Products
  • S29752
  • S9752
