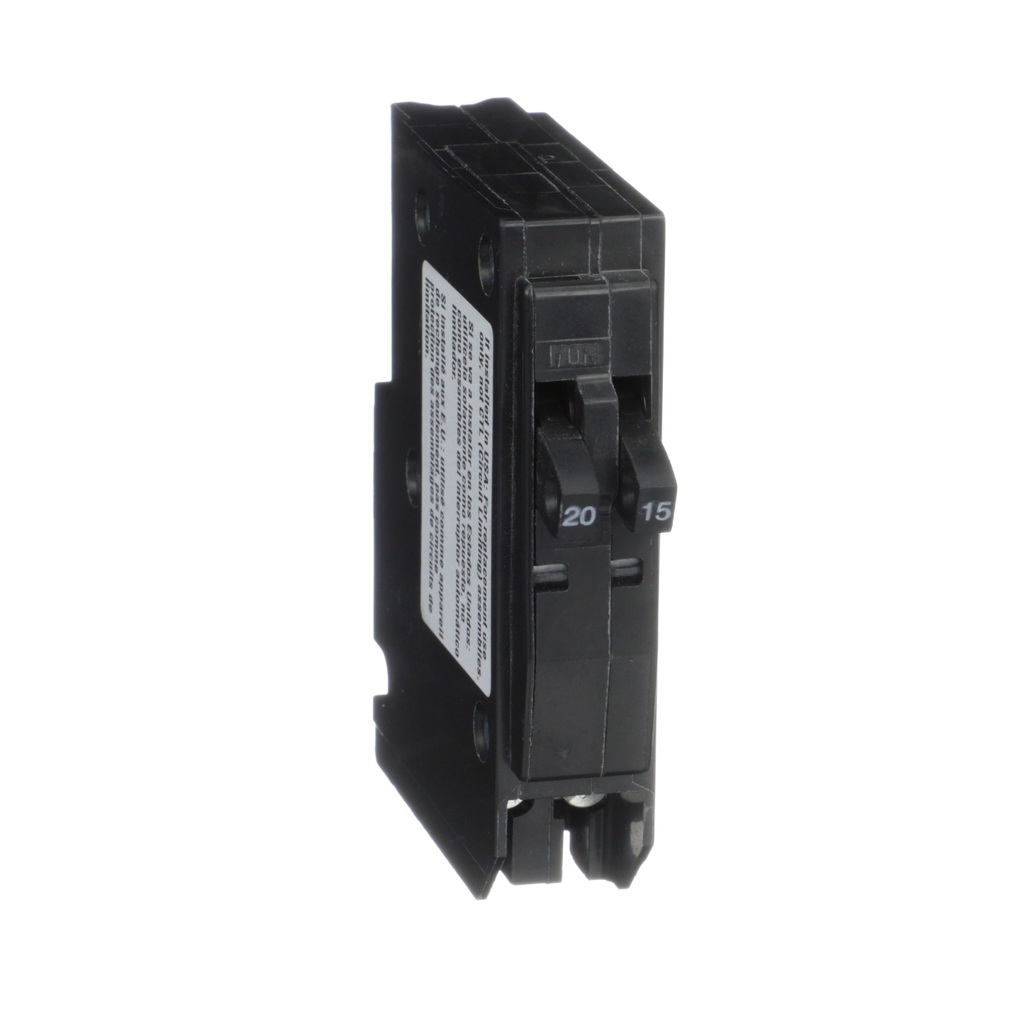

Square D QO2015 Enclosed Tandem Circuit Breaker 20/15A 120/240V 1Ph , Plug-In

Manufacturer: Square-D / Schneider | Catalog # QO2015 | Cooper Electric Part # 157629
$73.00 /ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean opens tuesday 7:00am et
0 available

For Delivery

Not in local stock *
Check another branch
*Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Brochure Product Catalog Page Product Spec Sheet
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QO tandem mini circuit breaker has 1 one pole at 20A and 1 one pole at 15A for 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555

Technical Information

Amperage
20? Amp;15? Amp
Applications
HACR rated
Circuit Breaker Type
Tandem
Conductor Size
14-8 AWG
Current
15 Amp
Interrupt Rating
10 kAIC
Line Rated Current
15 A
Material
Fiberglass
Mounting Type
Plug-in
Net Weight
0.141 kg
Number of Poles
1 Pole
Operating Temperature
CALIBRATED FOR USE AT 40 DEGREES C. SEE DATA BULLETIN 0100DB0101 FOR RE-RATING INFORMATION.
Short Circuit Current
10 kA
TC Connection
Box lugs
Type
Miniature circuit-breaker
Voltage
120/240 Volt
Wire Size
AWG 14...AWG 8 copper or aluminium

Manufacturer Information

Brand
Square D
Sub Brand
QO

General Product Info

12-Digit UPC
785901409649
GTiN
00785901409649
Product UPC
78590140964
Weight
0.141 kg

Dimensions

Depth
74 mm
Height
3.23 in
Length
2.91 Inch
Warranty Length
18 mth
Width
0.75 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL Listed
Country of Origin
Mexico
Features
  • Provides superior circuit protection
  • Reliable and durable
  • Plug-on neutral design and shorter footprint for faster installs
  • Simple design and clear instructions for quick setup
  • Time-saving diagnostics with touch of a button
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
