Thomas & Betts RC10-10FS 12 to 10 AWG #10 Stud Yellow Electrotinned Copper Nylon Insulated Fork Terminal Lug

Manufacturer: ABB | Thomas & Betts | Catalog # RC10-10FS | Cooper Electric Part # 157383
$499.33/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

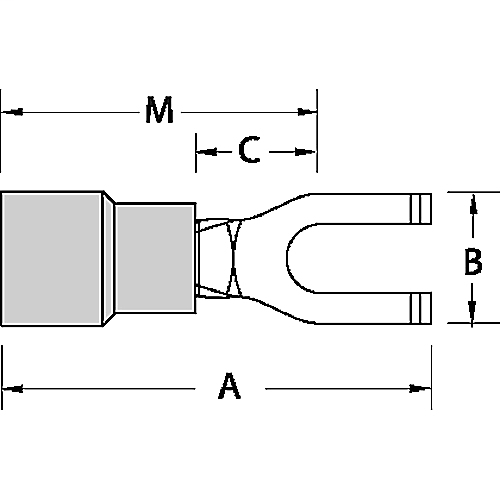

Nylon Insulated Fork Terminal with Flanged Tongue, Length 1.00 Inches, Width .38 Inches, Maximum Insulation .210, Bolt Hole #10, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated

Technical Information

Conductor Size
12-10 AWG
Flamability Class
Rated V-2 Per UL94
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E9809
Stud Size
#10
Temperature Rating
105 degrees C
Terminal Type
RC
Type
Short Sleeve, Flanged Tongue
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
786210804408
Color
Yellow
Finish
Electro Tin Plated
GTiN
05414363159056
Product UPC
78621080440

Dimensions

Height
3 Inch
Thickness
.04 in
Width
1.3 in
Certifications
  • CSA
  • UL
Features
  • Fork terminals allow easy installation because screw needs only to be loosened. A flanged-tongue fork with turned up tips provide fo extra holding protection.
