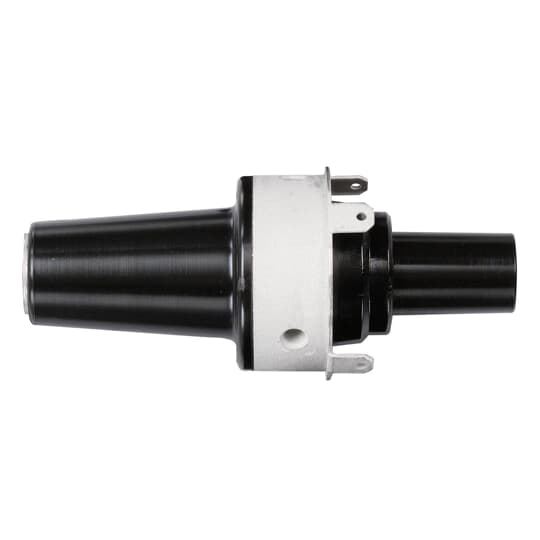

Product image for ABB Elastimold K650RTP 15/25kV 600 Series Deadbreak Reducing Tap Plug. 600/200 Amps.
Email

ABB Elastimold K650RTP 15/25kV 600 Series Deadbreak Reducing Tap Plug. 600/200 Amps.

Manufacturer: Blackburn / Thomas & Betts | Catalog # K650RTP | Cooper Electric Part # 1572860
$464.45/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
15/25kV 600 Series Deadbreak Reducing Tap Plug. 600/200 Amps.

Technical Information

Amperage
600 Amp
Applications
Elastimold K150T Connectors, K151SR Straight Receptacles and 156LR Elbows
Material
Rubber
Size
3.00 inch (76.2 mm) Diameter, 7.50 inch (190.4 mm) Long
Temperature Rating
-40 To 65 degrees C
Type
Reducing Tap Plug
Voltage
15/25 kV

Manufacturer Information

Brand
ABB
Sub Brand
Elastimold®

General Product Info

12-Digit UPC
783786649419
GTiN
00783786649419
Product UPC
78378664941
Application
  • 600 Series deadbreak elbows, straight receptacles, junctions, vault stretchers and accessories are used to connect equipment and cable on primary feeder and network circuits.
Notes
  • Available with the stud factory-assembled by adding \"SP\" to the catalog number. 675ETP, K675ETP and 775ETP are available as -SP only. The stud is not field removable.
  • For 900-amp ratings, substitute 675 for 650 and 655; 676 for 656; K671 for K651; K675 for K650 and K655; K676 for K656; 775 for 750 and 755; 776 for 756 and 2X for 0X in the catalog number. The 900-amp rating requires cooper current-carrying connector components and copper conductor cable.
  • 600SW Spanner wrench is recommended for installation of deadbreak reducing tap plugs and reducing tap wells.
  • Available with a loose stud by adding suffix \"S\" to the catalog number.
