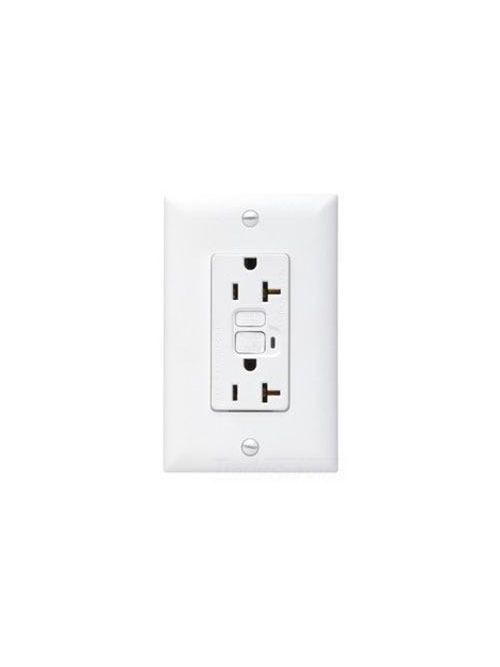

Product image for Pass & Seymour 2095-SW 20 Amp 125 Volt Auto Ground GFCI Receptacle
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour 2095-SW 20 Amp 125 Volt Auto Ground GFCI Receptacle

Manufacturer: Pass & Seymour / Legrand | Catalog # 2095-SW | Cooper Electric Part # 157286
$36.58 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
From the innovator of the product category, comes a full range of Pass & Seymour GFCI receptacles to enhance safety, shorten installation times and increase productivity on the jobsite. With high-impact-resistant, thermoplastic construction, our spec-grade GFCI are the most durable GFCI available.

Technical Information

Amperage
20 Amp
Grade
Specification
NEMA
5-20R
Style
Decorator
Type
Duplex
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007423815
Color
White
GTiN
00785007423815
Product UPC
78500742381

Dimensions

Depth
0.98 Inch
Height
4.2 Inch
Width
1.72 in
Features & Benefits
  • Supplied with matching TP26 nylon wall plate.
  • Trip indicator light (red LED).
  • Class A rated GFCI.
  • Two back wire holes per terminal.
  • FSUL Listed (Federal Specification WC596).
  • SafeLock™ Protection: if critical components are damaged and ground fault protection is lost, power to receptacle is disconnected.
  • High-impact-resistant thermoplastic construction.
  • Ground screw has a back wire clamp for easy installation.
  • Button colors match the device face.
  • For covering patents, see www.legrand.us/patents.
  • 1/4\" thinner than competitors' GFCIs; leaves more room for wires in the box.
  • Side or internal screw-pressure-plate back wire with #10 #14 AWG solid or stranded copper wire.
  • Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly.
  • Tri-drive screws.
  • 10kA short circuit rating.
  • Dual-direction test and reset buttons.
  • GFCIs with Auto-Ground assure a positive ground to metal box.
  • Exceeds UL943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
  • Mounting screws are shipped captive in the device and wall plate for easier installation.
  • Extra-long strap.
Available Options
  • Spec Grade 20A Duplex GFCI w/ Auto Ground, Light Almond
  • Spec Grade 20A Duplex GFCI w/ Auto Ground, Ivory
