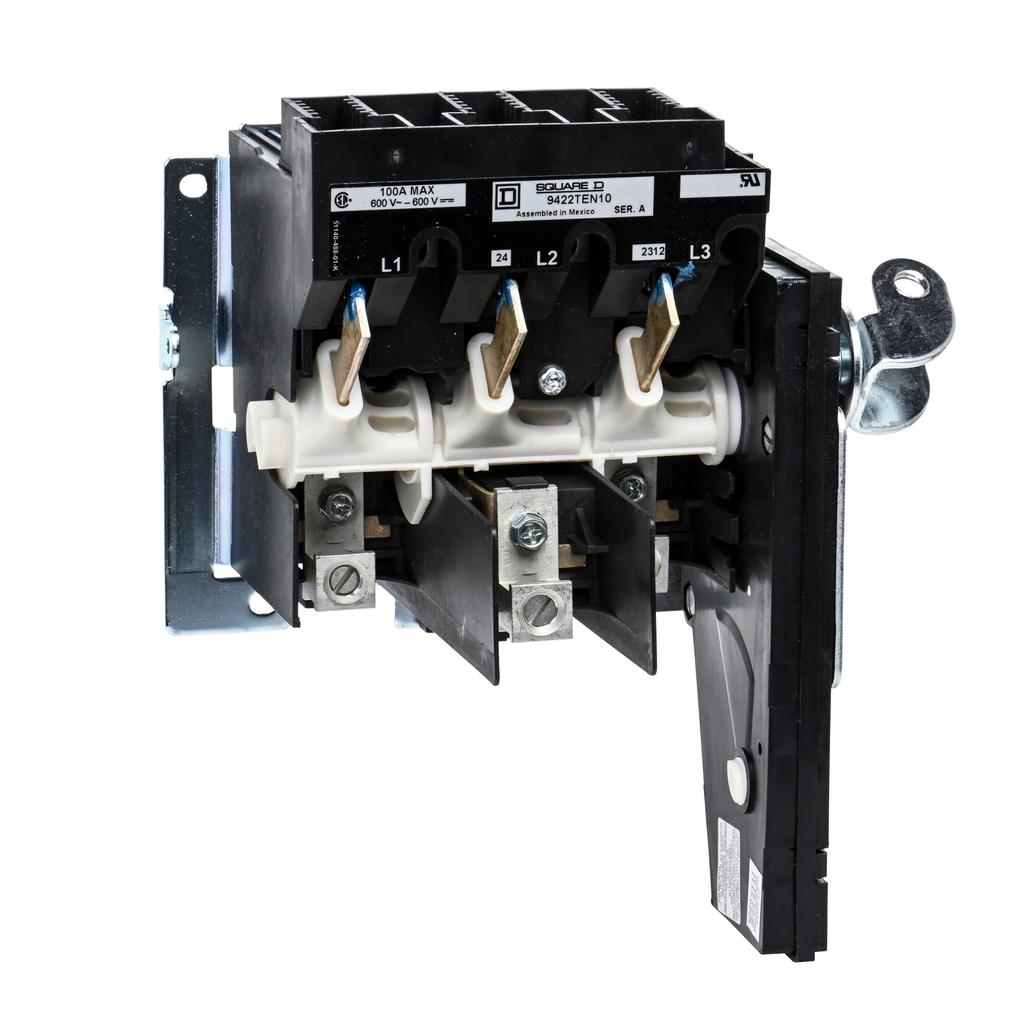

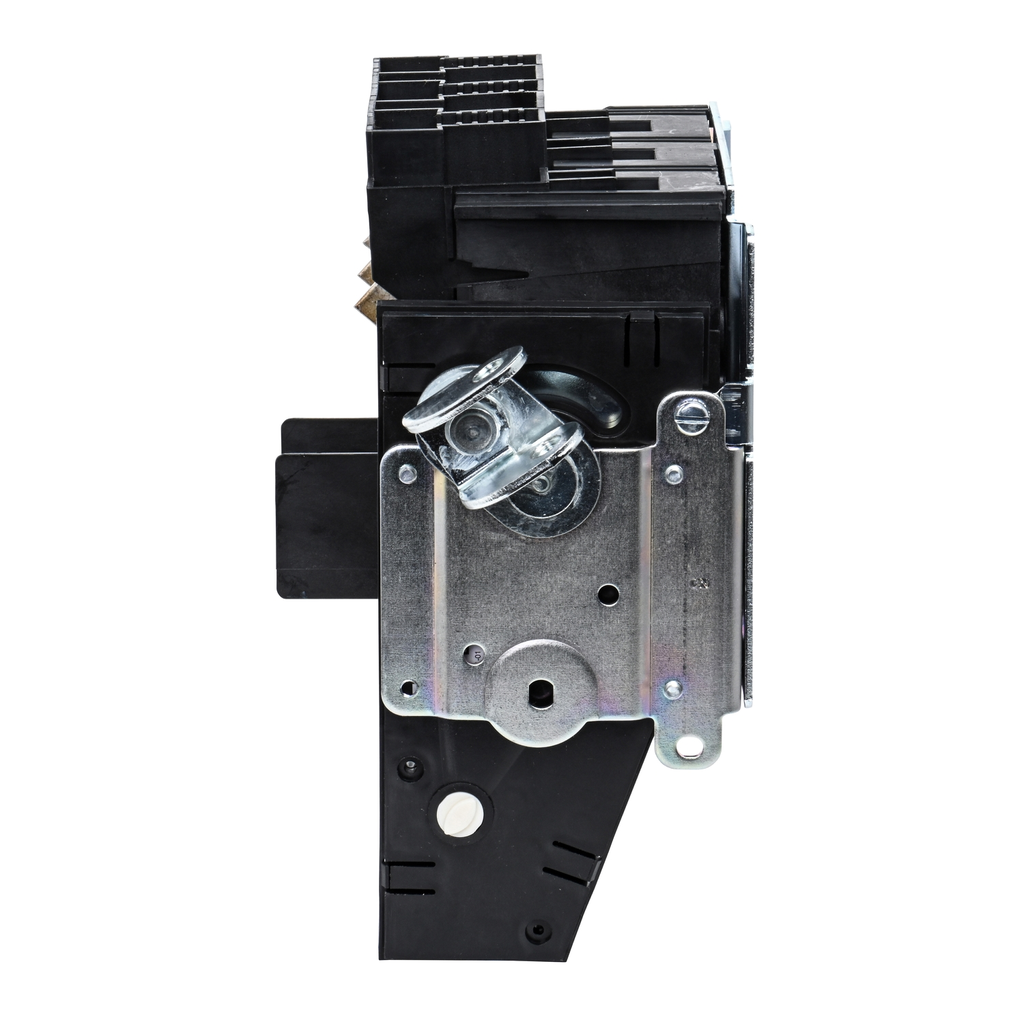

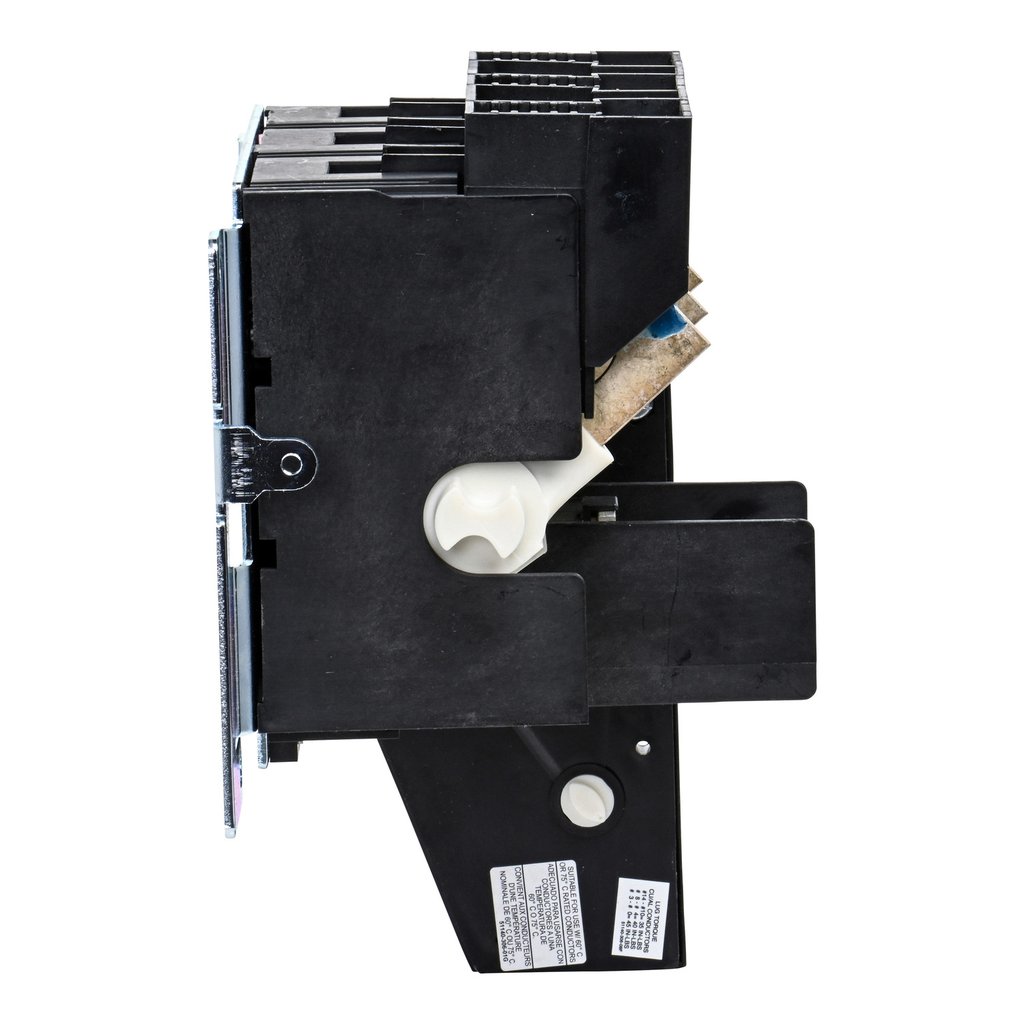

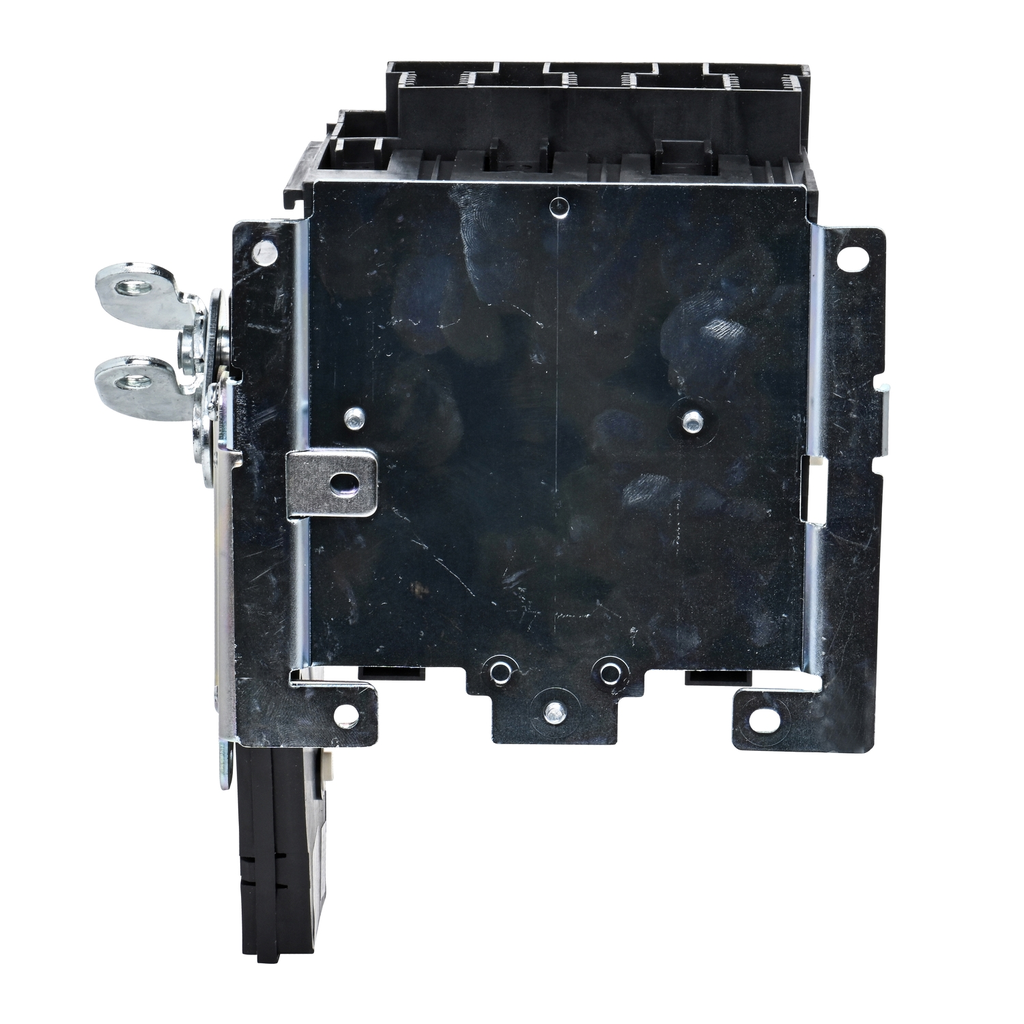

Square D 9422ATEN101 100 Amp 600 VAC A1 Mechanical Handle Non-Fusible Switch

Manufacturer: Square-D / Schneider | Catalog # 9422ATEN101 | Cooper Electric Part # 157239
$920.32/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
9422ATCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch is without fuse clips. This switch and operating mechanism comes with a 9422A1 handle mechanism overpacked. The variable depth mounting range is 6.63 to 18.00 inches. Disconnect switch has horsepower ratings of 25 HP at 208 VAC, 30 HP at 240 VAC, 60 HP at 480 VAC and 75 HP at 600 VAC. Switch is also rated for 20 HP at 250 VDC and 50 HP at 600 VDC when using two poles. 9422A1 operating handle is overpacked with this disconnect switch. Disconnect switch lugs are rated for #10 to #0 AWG with copper wire and #6 to #0 with aluminum wire. Disconnect switch is UL Component Recognized and CSA certified

Technical Information

Actuator
6 HANDLE INCLUDED (9422A1)
Amperage
100 Amp
Applications
ROD OPERATED - VARIABLE DEPTH/FLANGE MOUNT
Current
100 Amp
Handle Type
6 in handle included NEMA 1/3/3R/4 enclosures sheet steel
Line Rated Current
100 A
Mounting Type
Flange Rod Variable Depth
Trip Type
NON FUSIBLE NON FUSIBLE
Type
Non-fusible disconnect switch;Disconnect Switch

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901872283
GTiN
00785901872283
Product UPC
78590187228

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL Recognized
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • 9999TC10
  • 9999TC20
