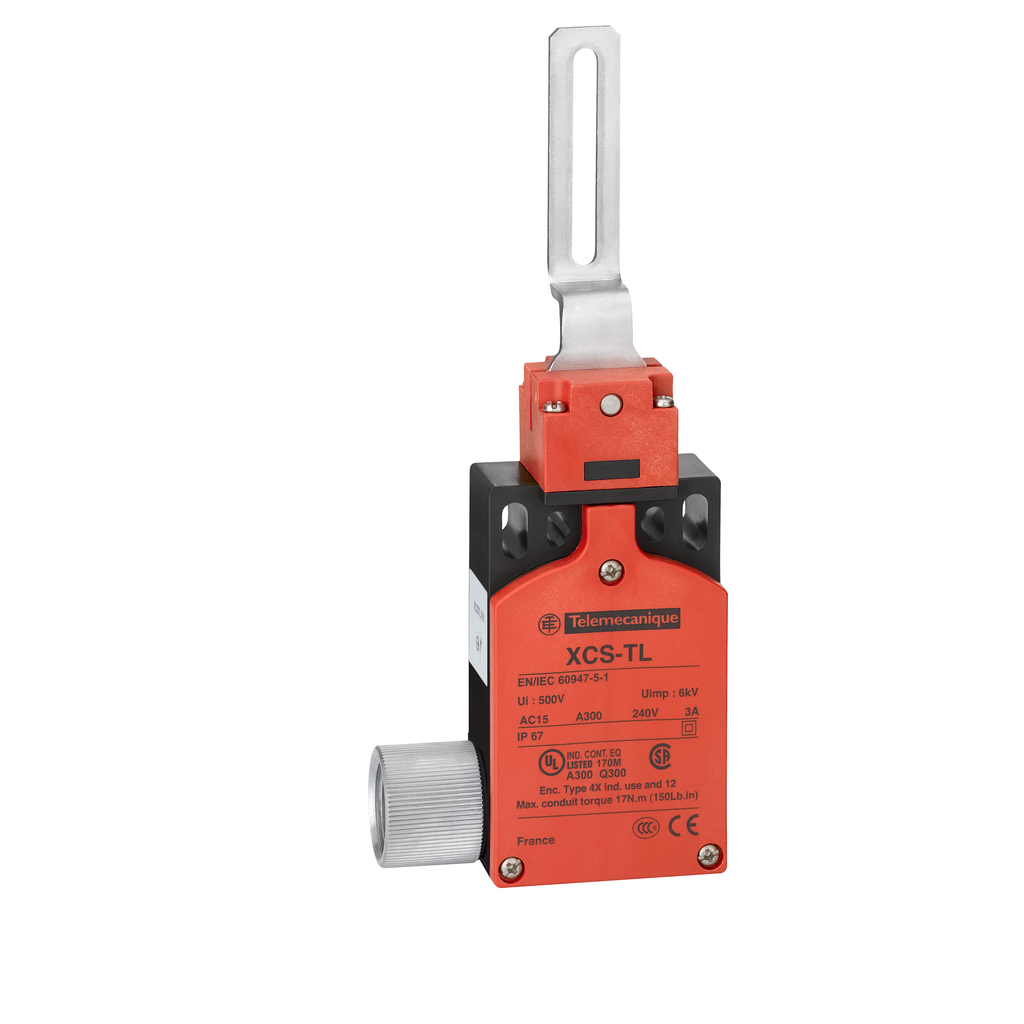

Product image for SQD XCSTL883 Guard switch, Telemeca
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

SQD XCSTL883 Guard switch, Telemeca

Manufacturer: Square-D / Schneider | Catalog # XCSTL883 | Cooper Electric Part # 1569043
$98.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Guard switch, Telemecanique Safety switches XCS, XCSTL, elbowed flush lever, centred, 3NC -1/2"NPT

Technical Information

Action
SLOW-BREAK
Actuator
ELBOWED FLUSH LEVER,STAINLESS STEEL
Amperage
6 Amp
Applications
TURRET HEAD ROTARY LEVER
Cable Entry
2 entries tapped 1/2" NPT
Contact Configuration
1 NC + 1 NC + 1 NC
Enclosure
POLYAMIDE PA66 FIBRE GLASS IMPREGNATED
Enclosure Material
Polyamide
Head Type
Turret head rotary lever
Material
Plastic
Number of Poles
3 Pole
Operating Temperature
-25-70 Adegrees C
Size
181-181 MM,30 MM,52 MM
Standard
CSA C22.2 No 14,EN 1088/ISO 14119,EN/IEC 60204-1,EN/IEC 60947-5-1,EN/IEC 60947-5-4,EN/ISO 12100,UL 508
TC Connection
TERMINAL
Type
GUARD SWITCH,TURRET HEAD ROTARY LEVER

Manufacturer Information

Brand
Preventa
Sub Brand
XCSTL

General Product Info

12-Digit UPC
785901236078
GTiN
03389110867213
Product UPC
78590123607
Weight
0.32 lb

Dimensions

Chain Cable Diameter
0.39 in
Depth
1.18 Inch
Height
7.13 Inch
Warranty Length
18 mth
Width
2.05 in

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP) and Diisononyl phthalate (DINP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
Certifications
BG,CSA,UL
Country of Origin
France
