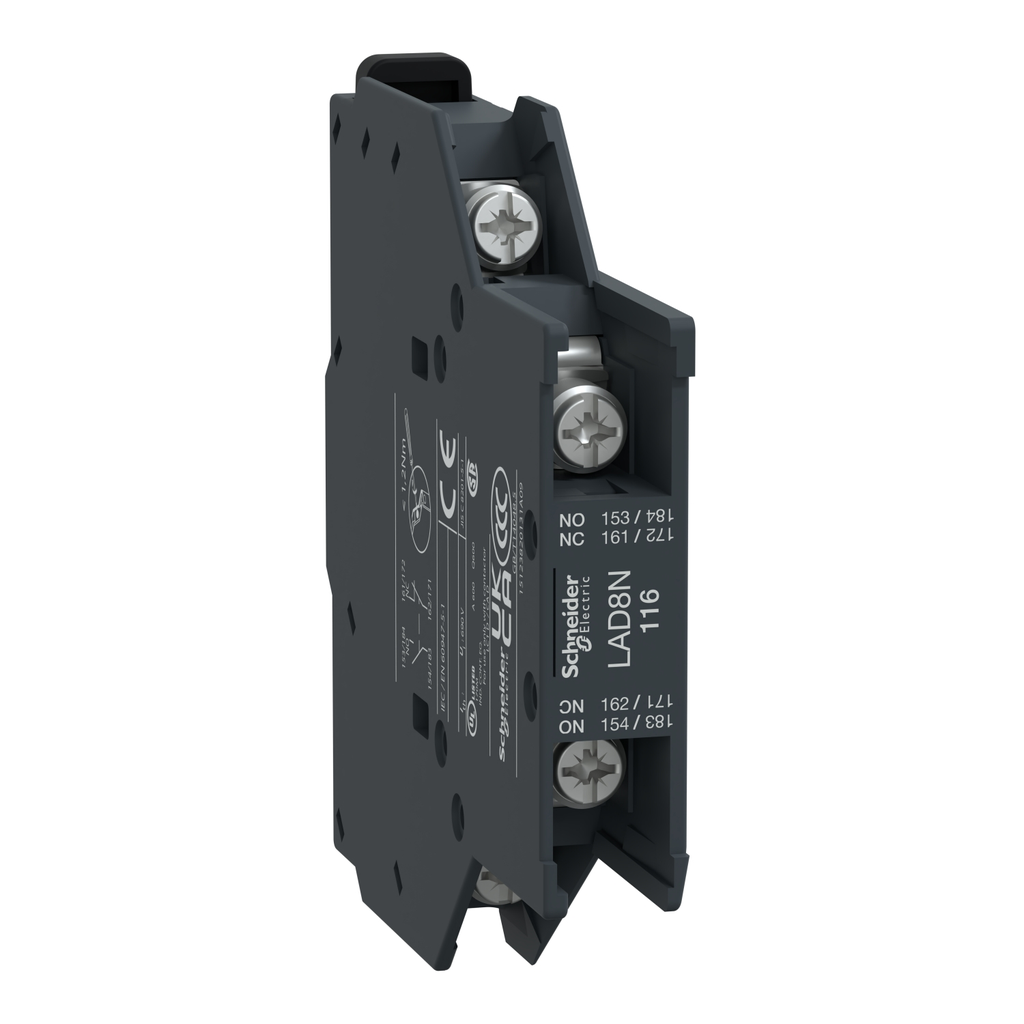

SQUARED LAD8N116 Auxiliary contact

Manufacturer: Square-D / Schneider | Catalog # LAD8N116 | Cooper Electric Part # 1568491
$24.59/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
TeSys Deca instantaneous auxiliary contact block, for LC.D contactors and CAD control relays with AC coils only. It provides 1NO+1NC contacts (NC mirror certified) rated up to 10A 690V AC, connection by ring lugs screw terminals. Clip-on side mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Technical Information

Coil Voltage
690 V AC 25...400 HZ
Contact Configuration
1 NO + 1 NC
Contact Rating
10 A 60 AC
Operating Temperature
-5-60 Adegrees C
Size
12.5 MM
Standard
CSA C22.2 No 60947-5-1,EN/IEC 60947-5-1,GB/T 14048.5,UL 60947-5-1
Storage Temperature
-60-80 degrees C
TC Connection
LUGS-RING TERMINALS
Type
AUXILIARY CONTACT BLOCK
Voltage
690 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TESYS,TESYS D-TESYS D CONTROL RELAY

General Product Info

12-Digit UPC
891108213764
GTiN
03389110821376
Product UPC
38911082137

Dimensions

Depth
76 mm
Height
76 mm
Warranty Length
18 mth
Width
12.5 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
CB,CCC,CSA,EAC,UKCA,UL
Country of Origin
Indonesia
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • LC1D096M7
  • LC1D096F7
  • LC1D186M7
  • LC1D186F7
  • LC1D1286LE7
  • LC1D256M7
  • LC1D126M7
  • LC1D186B7
  • LC1D256F7
  • LC1D326M7
  • LC1D386M7
  • LC1D1506BD
  • LC1D326F7
  • LC1D1156M7
  • LC1D186P7
  • LC1D1506M7
  • LC1D126F7
  • LC1D806LE7
  • LC1D326B7
  • LC1D65A6B7
  • LC1D096B7
  • LC1D326P7
  • LC1D806M7
  • LC1D65A6BBE
  • LC1D40A6B7
  • LC1D1506G7
  • LC1D1286G7
  • LC1D096P7
  • LC1D40A6M7
  • LC1D1156F7
  • LC1D1156BD
  • LC1D40A6G7
  • LC1D1286U7
  • LC1D256G7
  • LC1D326G7
  • LC1D096G7
  • LC1D65A6M7
  • LC1D50A6BBE
  • LC1D1156B7
  • LC1D806G7
  • LC1D186G7
  • LC1D1506F7
  • LC1D256B7
  • LC1D256P7
  • LC1D50A6P7
  • LC1D50A6EHE
  • LC1D1156FE7
  • LC1DT326B7
  • LC1D1506B7
  • LC1D1156L7
  • LC1D806F7
  • LC1D40A6BBE
  • LC1D50A6M7
  • LC1D40A6KUE
  • LC1DT256M7
  • LC1D1150046BD
  • LC1D806B7
  • LC1D126B7
  • LC1D256U7
  • LC1D50A6KUE
  • LC1D65A6EHE
  • LC1D65A6KUE
  • LC1D1506LE7
  • LC1D40A6LE7
  • LC1D65A6R7
  • LC1D40A6P7
  • LC1D126G7
  • LC1D50A6F7
  • LC1D65A6P7
  • LC1D40A6U7
  • LC1D1156LE7
  • LC1D65A6F7
  • LC1DT326G7
  • LC1D806K7
  • LC1D65A6U7
  • LC1D65A6G7
  • LC1D186L7
  • LC1D50A6BNE
  • LC1D50A6B7
  • LC1D65A6K7
  • LC1D1156G7
  • LC1D096L7
  • LC1D256K7
  • LC1D80A6BBE
  • LC1D80A6M7
  • LC1DT80A6BBE
  • LC1D80A6P7
  • LC1D40A6BNE
  • LC1D80A6LE7
  • LC1DT60A6BBE
  • LC1D256L7
  • LC1D956K7
  • LC1D40A6K7
  • LC1D80A6KUE
  • LC1DT80A6F7
  • LC1DT60A6BNE
  • LC1DT60A6EHE
  • LC1DT60A6KUE
  • LC1DT80A6BNE
  • LC1DT80A6EHE
  • LC1DT80A6KUE
  • LC1D40A6EHE
