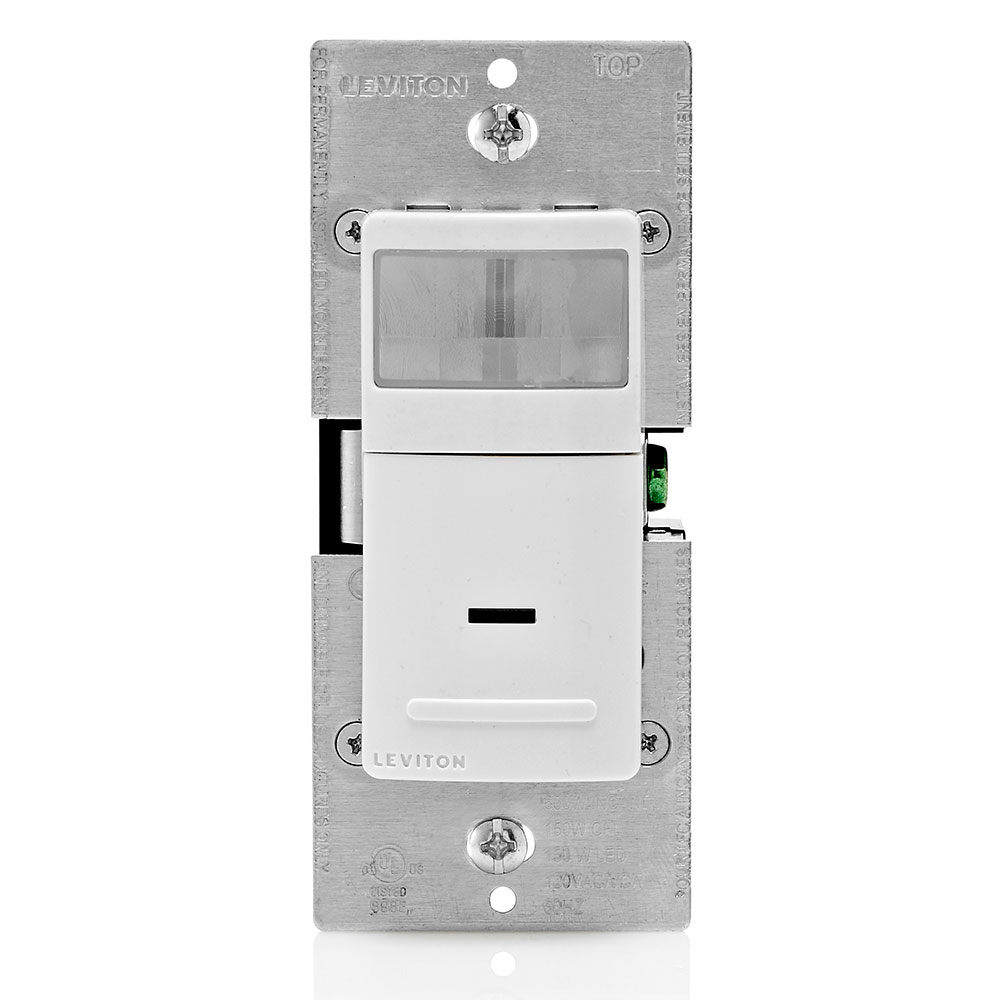

LEV IPV0R-1LZ W/I/LA OCC SENS RMTE

Manufacturer: Leviton Mfg Co | Catalog # IPV0R-1LZ | Cooper Electric Part # 1565082
$66.36/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet

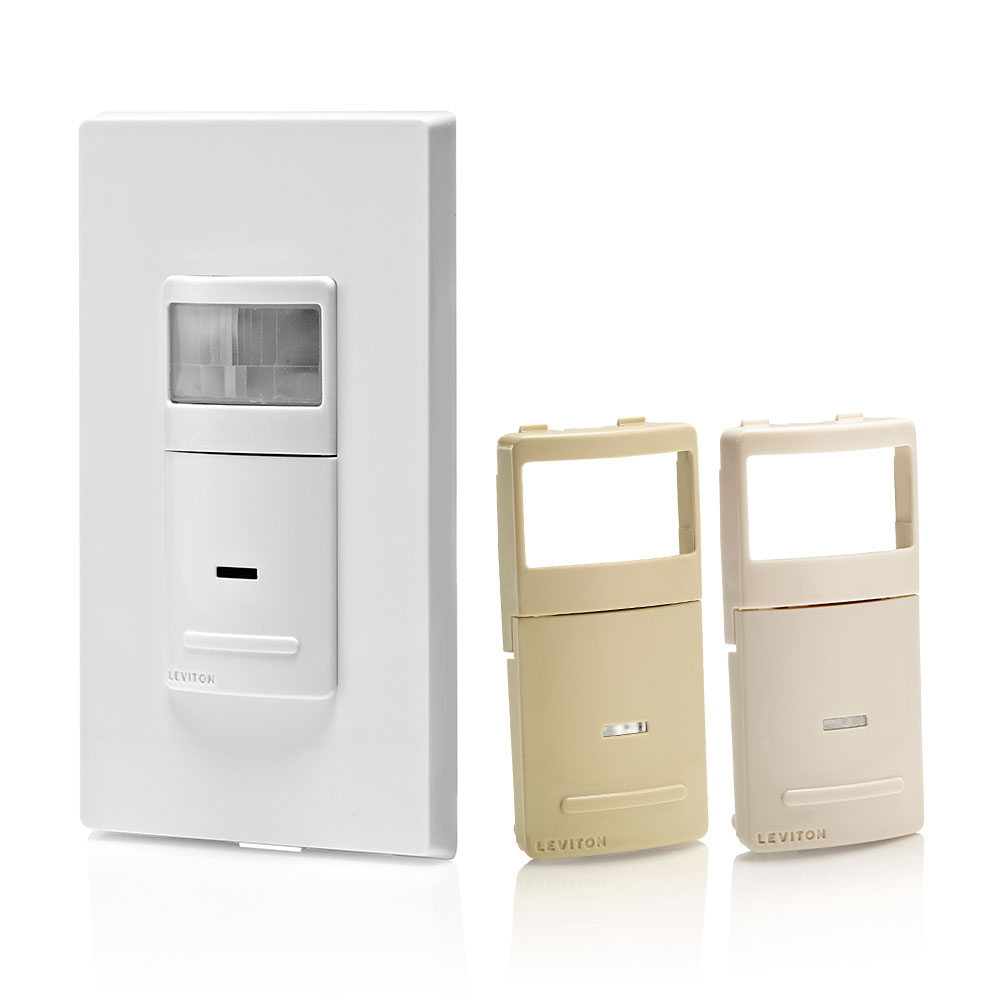

Decora Motion Sensor, 180 Degree PIR In-Wall Remote. For use only with IPS15 or IPV15 Motion Sensors - White, with Ivory and Light Almond color change kits included.

Technical Information

Applications
For Commercial use
Coverage
900 sq-ft
Frequency
60 Hz
Grade
Commercial,Residential
Lens Type
LED
Mounting Type
Wall
Number of Poles
1 Pole
Response Time
30 sec - 30 min
Sensor Type
Passive Infrared
Size
4.13 H x 1.75 W x 1.22 D IN
Switch Type
Single-Pole
Temperature Rating
0 degrees C to 40 degrees C
Torque
14 lb-in
Type
Remote
Voltage
120 VAC

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477570760
Color
White
Environmental Conditions
Humidity (20% To 90% Non-Condensing),Operating Temperature Range (0 To +40 DEG C)
GTiN
00078477570760
Product UPC
07847757076

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • Manual ON/Automatic OFF operation in accordance with California Title 24 2005 requirements when used with IPV15.
  • Automatic ON/Automatic OFF operation when used with IPS15.
  • Low-Profile design eliminates an obtrusive \"scanning device\" look. Elegant compliments any interior and coordinates with Leviton's popular line of Decora® wiring devices.
  • 180 degree field-of-view provides approximately 900 square feet of coverage suitable for bathrooms, basements, garages, utility rooms and a variety of other residential areas
  • Convenient push-button provides Manual ON/OFF light switching at any time.
  • Segmented fresnel lens provides optimum sensitivity and performance. It is designed with an extensive \"minor motion\" area where even slight body movements will be detected.
  • Four optional manual adjustments for delayed-OFF time settings maximize energy savings: 30 seconds, 10 minutes, 20 minutes and 30 minutes.
  • LED Indicator Light flashes when sensor detects motion to verify detection is active.
  • Requires a neutral (white) wire connection.
  • UL Listed and CSA Certified, complies with California Title 24 2005 Energy Code and FCC regulations.
