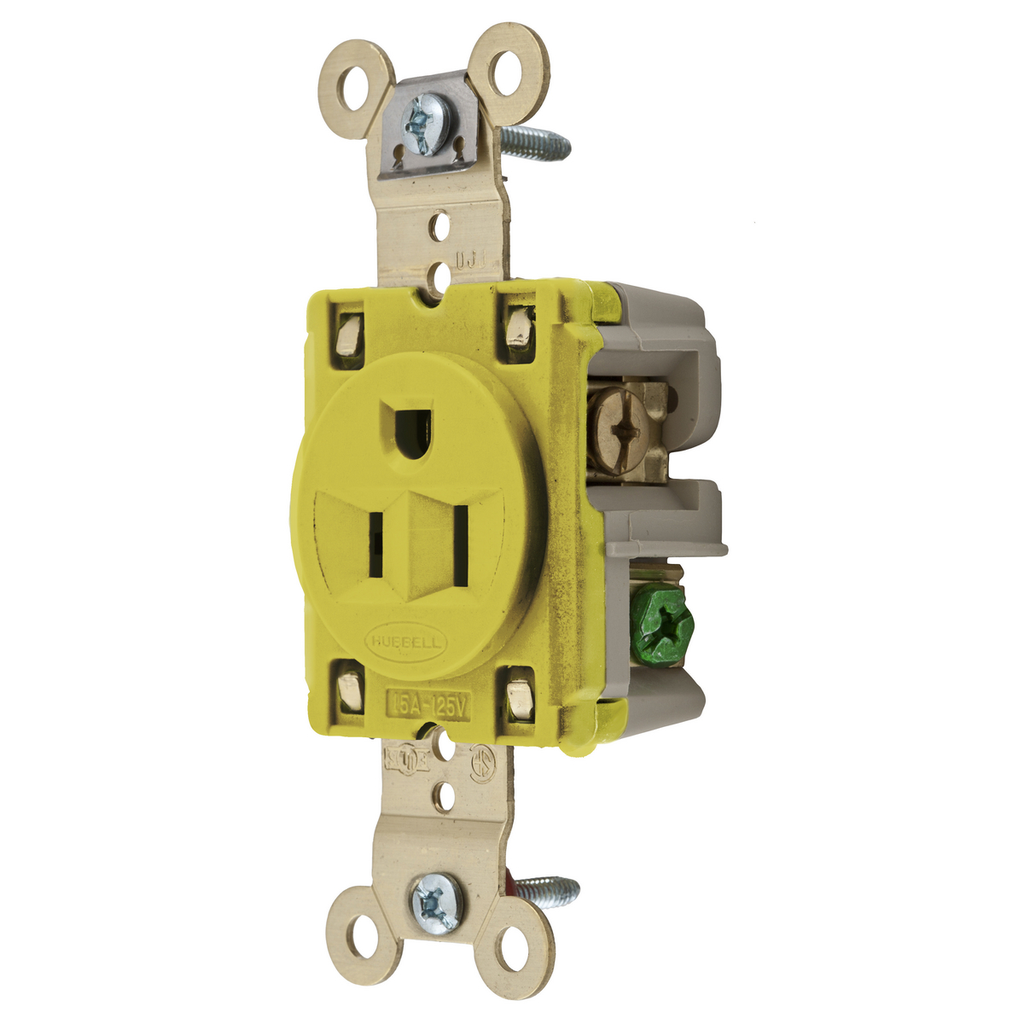

Product image for HCI HBL5261YRT SGL RCPT, RING-TERM,
Image thumbnail 0
Image thumbnail 1
Email

HCI HBL5261YRT SGL RCPT, RING-TERM,

Manufacturer: Hubbell Wiring Device | Catalog # HBL5261YRT | Cooper Electric Part # 1561810
$29.97/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Single, Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Yellow, Single Pack, Ring Terminal.

Technical Information

Amperage
15 Amp
Applications
Extra Heavy Duty Specification Grade
Base Material
PBT
Conductor Size
14-10 AWG
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Horsepower
0.5 hp
Material
Thermoplastic
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size

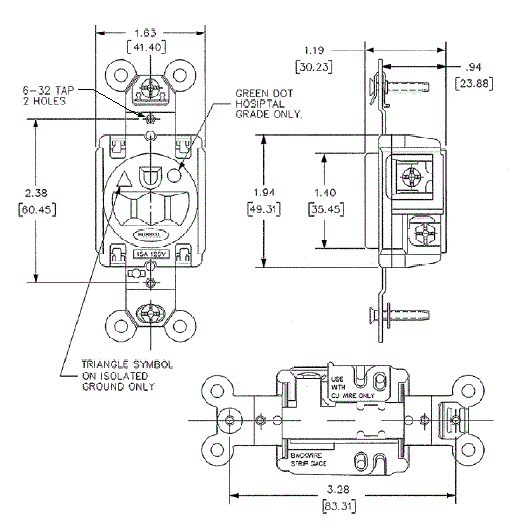

3.28 in x 1.63 in x 1.19 in
Standard
CSA 22.2,Fed. Spec. W-C-596,NEMA® WD-6,No. 42 File 285,UL,UL498 File No. E2186
Style
Finder Groove Face
TC Connection
Back and Side Wired
Type
Ring Terminal
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585318516
Color
Yellow
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585318516
Product Series
Extra Heavy Duty
Product UPC
78358531851
Weight
0.2 lb

Dimensions

Height
1.19 Inch
Length
3.28 Inch
Width
1.63 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Ring Terminal Connection
  • One-piece brass integral ground strap
  • Patented bypass contact design
  • Ring Terminal
