SQD NSYCRN54250 PanelSeT CRN plain

Manufacturer: Square-D / Schneider | Catalog # NSYCRN54250 | Cooper Electric Part # 1559843

$156.13/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times

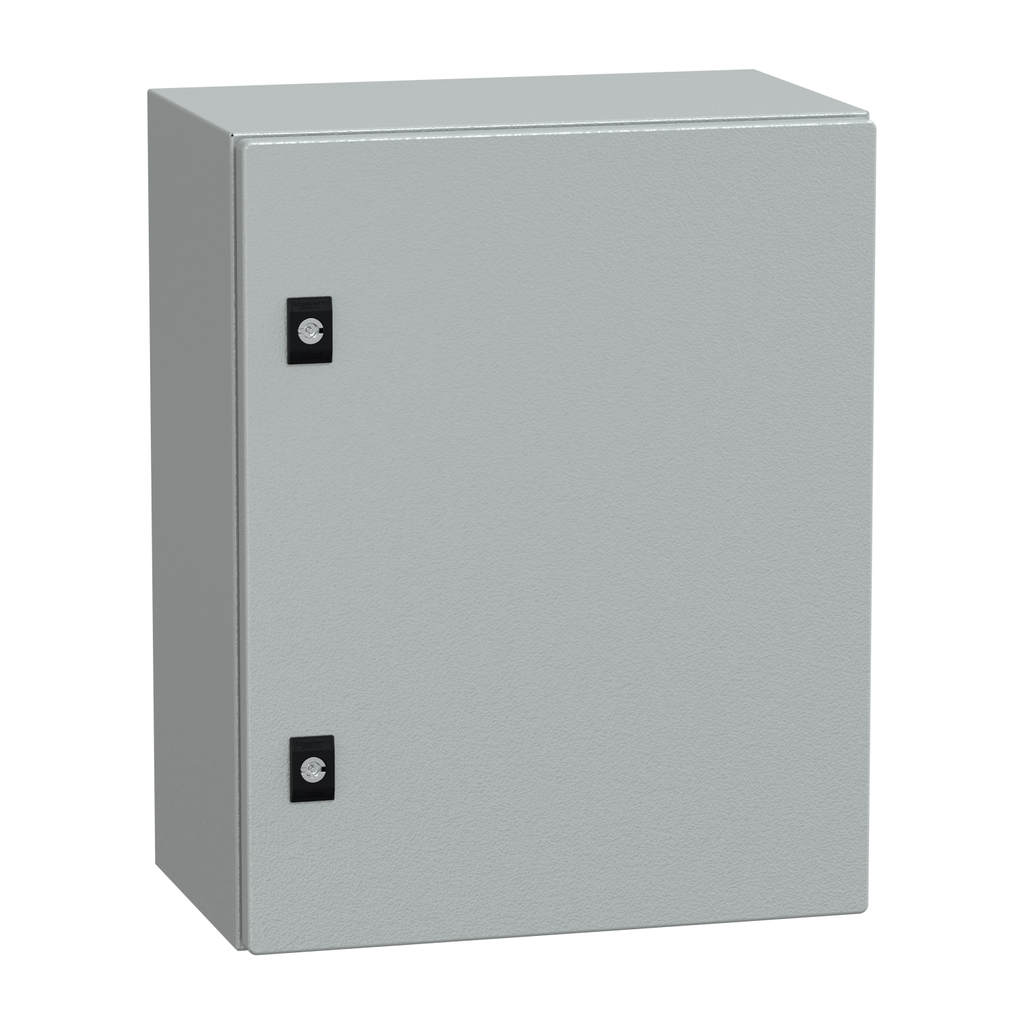

The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door, lock. The compact enclosure is made of steel (body), making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 400 mm x (H) 500 mm x (D) 250 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is plain, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is c.UL certified.

Technical Information

Applications
Multi-purpose;Sides made from a single folded section;Back welded with double profile forming a protected sealed area
Door Type
Solid
Lock Type
3 mm
Material
Steel
Net Weight
9.196 kg
Number of Doors
Front Face 1
Range
Spacial
Size
9.84 in
Standard
IEC 62208
Surface Finish
Epoxy-Polyester Powder
Type
Solid;Wall-mounting;Compact enclosure

Manufacturer Information

Brand
Schneider Electric
Sub Brand
SPACIAL

General Product Info

12-Digit UPC
606480212256
Color
Gray RAL 7035)
Construction
1 BODY-1 CABLE GLAND PLATE-1 DOOR-1 LOCK
GTiN
03606480212253
Product UPC
78590182356
Weight
9.196 kg

Dimensions

Enclosure Depth
250 mm
Enclosure Height
500 mm
Enclosure Wdth
400 mm
Height
500 mm
Warranty Length
18 mth
Width
400 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CUL,DNV-GL,UL
Country of Origin
Spain
