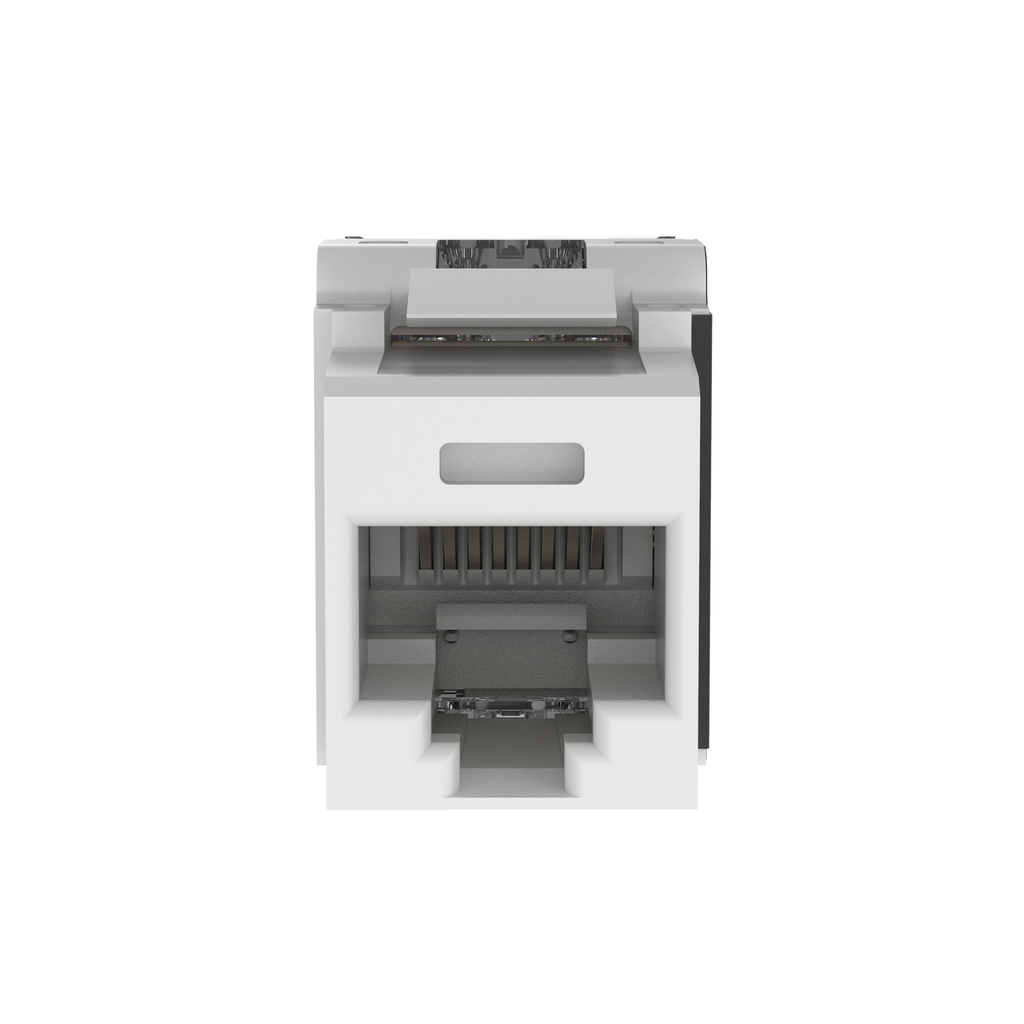

Product image for Panduit NK6X88MWH UTP RJ45 Cat 6A Keystone Punchdown Jack Module, White
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Panduit NK6X88MWH UTP RJ45 Cat 6A Keystone Punchdown Jack Module, White

Manufacturer: Panduit Corp | Catalog # NK6X88MWH | Cooper Electric Part # 1559346
$20.65/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Installation / Instruction Manual Engineering Drawing Product Brochure
The NetKey® Cat 6A UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22.26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized for traceability and are compatible with keystone interfaces such as NetKey® Faceplates, Modular Patch Panels, and Surface Mount Boxes. The jack module is white.

Technical Information

Applications
Unshielded
Cable Entry
T568A/T568B
Cable Type
Category 6A
Material
ABS Plastic
Max Operating Temperature
167 degrees F
Min Operating Temperature
-10 degrees C
Number of Positions
8
Performance Level
Category 6A
Temperature Rating
-10 to 65 degrees C
Type
RJ45, Unshielded, 8-Wire, Keystone

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
NetKey

General Product Info

12-Digit UPC
074983722389
Color
White
GTiN
00074983722389
Product UPC
07498372238

Dimensions

Depth
1.16 Inch
Height
22.86 mm
Overall Length
29.5 mm
Width
16.5 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Standards and Certifications
  • Standards Met: Exceeds ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA Channel and Component Requirements at Swept Frequencies up to 500 MHz, Complies with ANSI/TIA-1096-A, Meets IEC 60603-7, Supports IEEE 802.3af/802.3at and Proposed 802.3bt Type 3 and Type 4 PoE Applications, UL 1863 and CAN/CSA-C22.2 (UL File E129886), and RoHS Compliant
