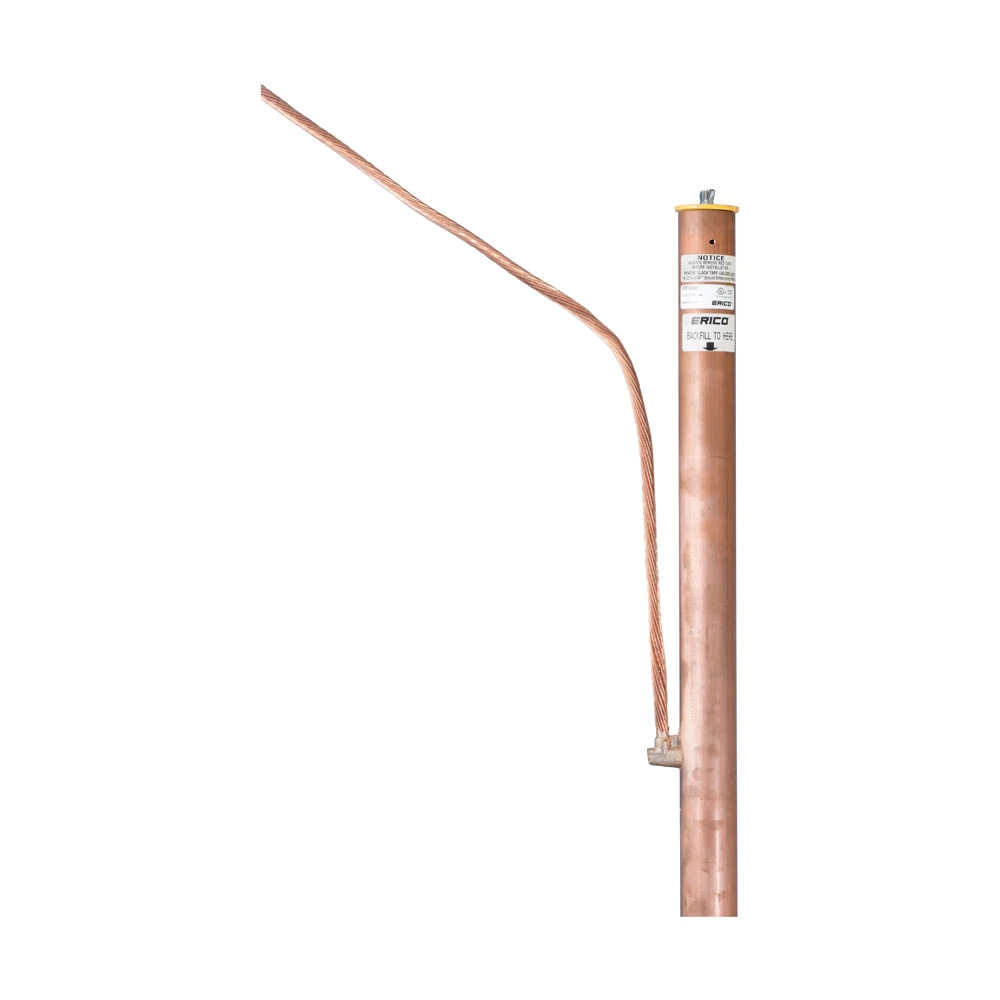

Product image for Erico ECRV082Q4U Chemical Ground Electrode, Vertical/Up, 8' Electrode, 4' Pigtail, 4/0 Str, Kit
Image thumbnail 0
Image thumbnail 1
Email

Erico ECRV082Q4U Chemical Ground Electrode, Vertical/Up, 8' Electrode, 4' Pigtail, 4/0 Str, Kit

Manufacturer: Erico, Inc | Catalog # ECRV082Q4U | Cooper Electric Part # 1558325
*Call For Price*
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
Contains natural electrolytic salts, which permeate into the surrounding soil to condition the soil and increase its conductivity. 8' (2.4 m) electrode. Longer rods can be field assembled using 5. (1.52 m) or 10. (3.05 m) extensions.

Technical Information

Installation
Vertical With Pigtail Up
Material
Copper

Packaging

Standard Packaging Qty
1 pc

Manufacturer Information

Brand
nVent Erico

General Product Info

12-Digit UPC
782856742579
GTiN
00782856742579
Product UPC
78285674257
Weight
0.00 kg

Certifications and Compliance

Certifications
CULus
Features
  • Contains natural electrolytic salts, which permeate into the surrounding soil to condition the soil and increase its conductivity
  • Easy connection to ground electrode conductor using the factory provided pigtail (up or down orientation)
  • Provides decades of reliable services due to rugged construction and high-quality metals with a 30-year minimum service life
  • 2-1/8\" (54 mm) outside diameter copper pipe with 0.083\" (2.1 mm) wall
  • Available in continuous sections up to 10 (3.05 m) in length; longer rods can be field assembled using 5 (1.52 m) or 10 (3.05 m) extensions
  • Optional factory-attached radial strips are available to reduce impedance to high-frequency lightning energy and to control the direction of the dissipation
  • L-shaped rods are available for horizontal installation applications where it is impractical to auger deep vertical holes
  • Access segment on horizontal (L-shaped) chemical ground electrodes is 32\" (813 mm) deep
Certifications
  • cUL CSA C22.2 No. 41
  • UL ANSI/UL 467
