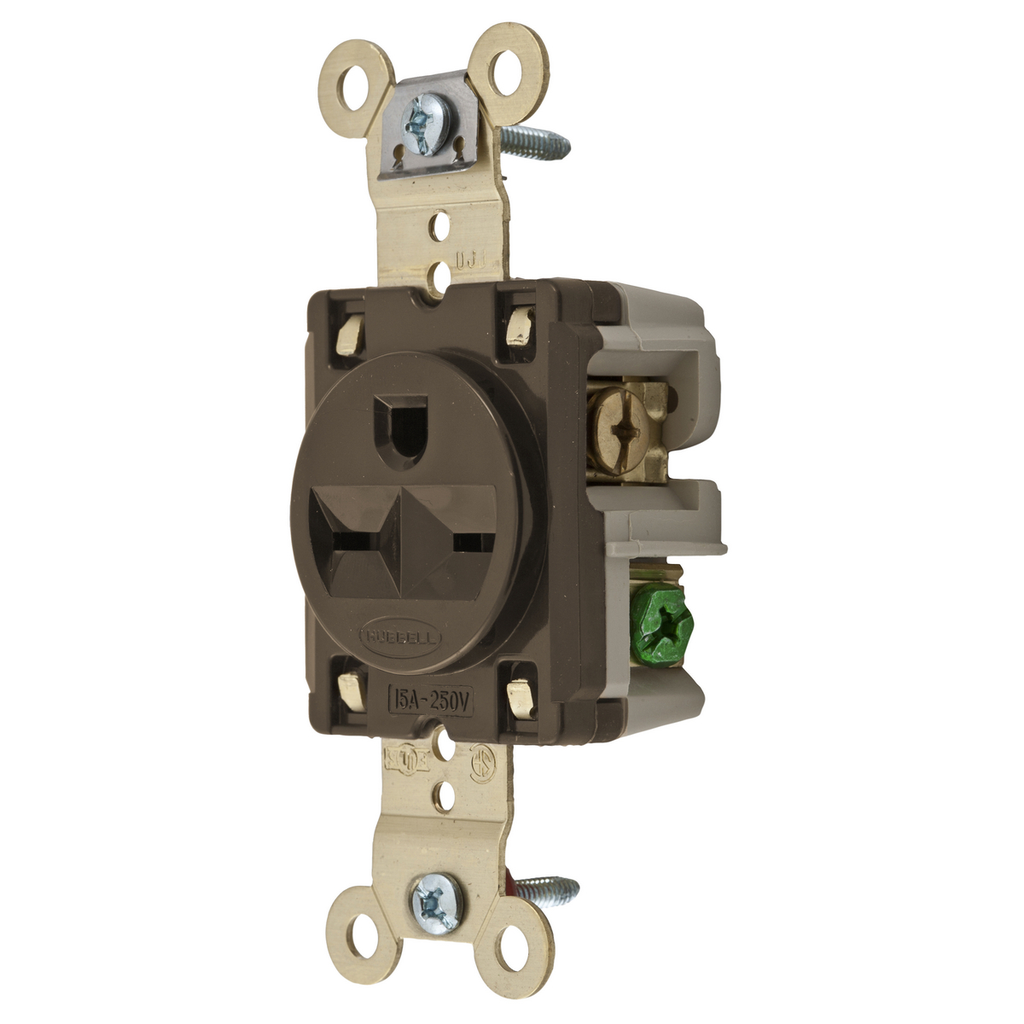

Product image for HWDK HBL5661RT RCPT, RING-TERM,15A/
Email

HWDK HBL5661RT RCPT, RING-TERM,15A/

Manufacturer: Hubbell Wiring Device | Catalog # HBL5661RT | Cooper Electric Part # 1553857
$79.35/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Single, Specification Grade, 2-Pole 3-Wire Grounding, 15A 250V, 6-15R, Brown, Single Pack Ring, Terminal Mod

Technical Information

Amperage
15 Amp
Applications
Extra Heavy Duty
Base Material
Reinforced PET
Conductor Size
14-10 AWG
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Grade
Heavy-Duty Specification
Horsepower
1.5 hp
Material
Nylon
NEMA
6-15R
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Rating
15 A
Screw Material
#8-32 Brass/Nickel Plated,Steel, Zinc Plated
Size
Standard Sized Product
Standard
CSA 22.2,Guide RTRT Fed Spec WC596G,NEMA® WD-6,No. 42 File 285,UL,UL498 File No. E2186
TC Connection
Ring Terminal
Type
Single Receptacle
Voltage
250 Volt
Wattage
3750 Watt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585318530
Color
Brown
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585318530
Product UPC
78358531853
Weight
0.15 lb

Dimensions

Height
1.54 Inch
Length
4.16 Inch
Width
1.790 in

Certifications and Compliance

Certifications
C22.2,Certified To CSA,Guide RTRT Fed Spec WC596G,Meets WD-6 Requirements,No. 42 File 285.,UL Listed To UL 498 File E2186
Country of Origin
Puerto Rico
Features
  • Ring Terminal Connection
  • One-piece brass integral ground strap
  • Patented bypass contact design
  • Ring Terminal
