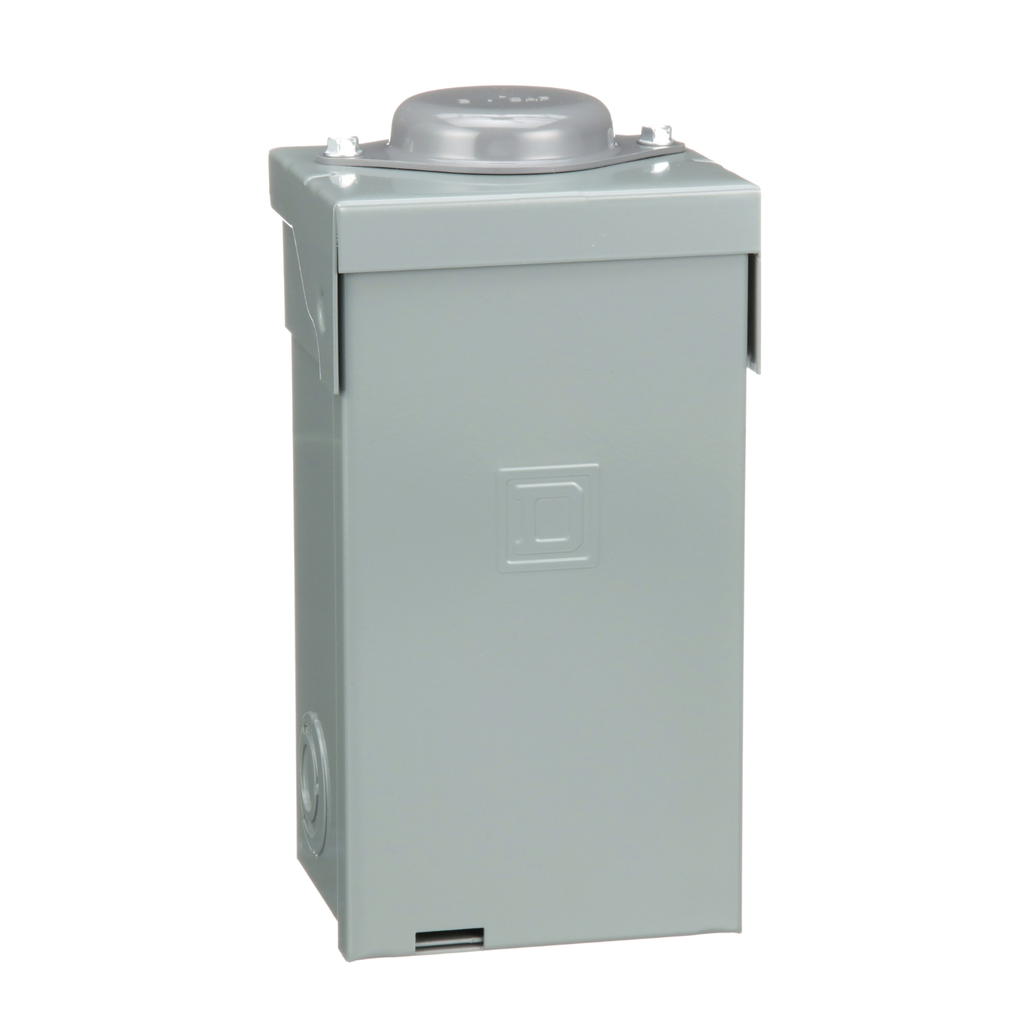

SQD HOM24L70RBCP Load center, Homel

Manufacturer: Square-D / Schneider | Catalog # HOM24L70RBCP | Cooper Electric Part # 1552846
$97.46/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 Product Brochure
The Square D® Homeline® Load Centers are comprised of a comprehensive family of circuit protection solutions. This one comes with the feature plug-on neutral load main breakers centers with lug connections. They are designed for residential and industrial use to protect electrical systems, equipment and people.

Technical Information

Amperage
70 Amp
Cover Type
Surface Cover
Current
70 Amp
Enclosure
3R
Enclosure Material
Steel
Interrupt Rating
10 kAIC
Line Rated Current
70 A
Material
Tin Plated Aluminium: Busbar
NEMA Size
3R
Number of Circuits
4
Number of Phases
1 Phase
Number of Spaces
2
Operating Temperature
23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
Short Circuit Current
10 kA
Short Circuit Current Ratng
10 kA
Surface Finish
Baked Enamel Gray
TC Connection
AWG 12...AWG 3 aluminium;AWG 14...AWG 4 copper
Type
Load Center
Voltage
120/240 Volt
Wire Size
AWG 12...AWG 3 aluminium;AWG 14...AWG 4 copper

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
047569071225
Finish
Gray
GTiN
00047569071225
Product UPC
04756907122

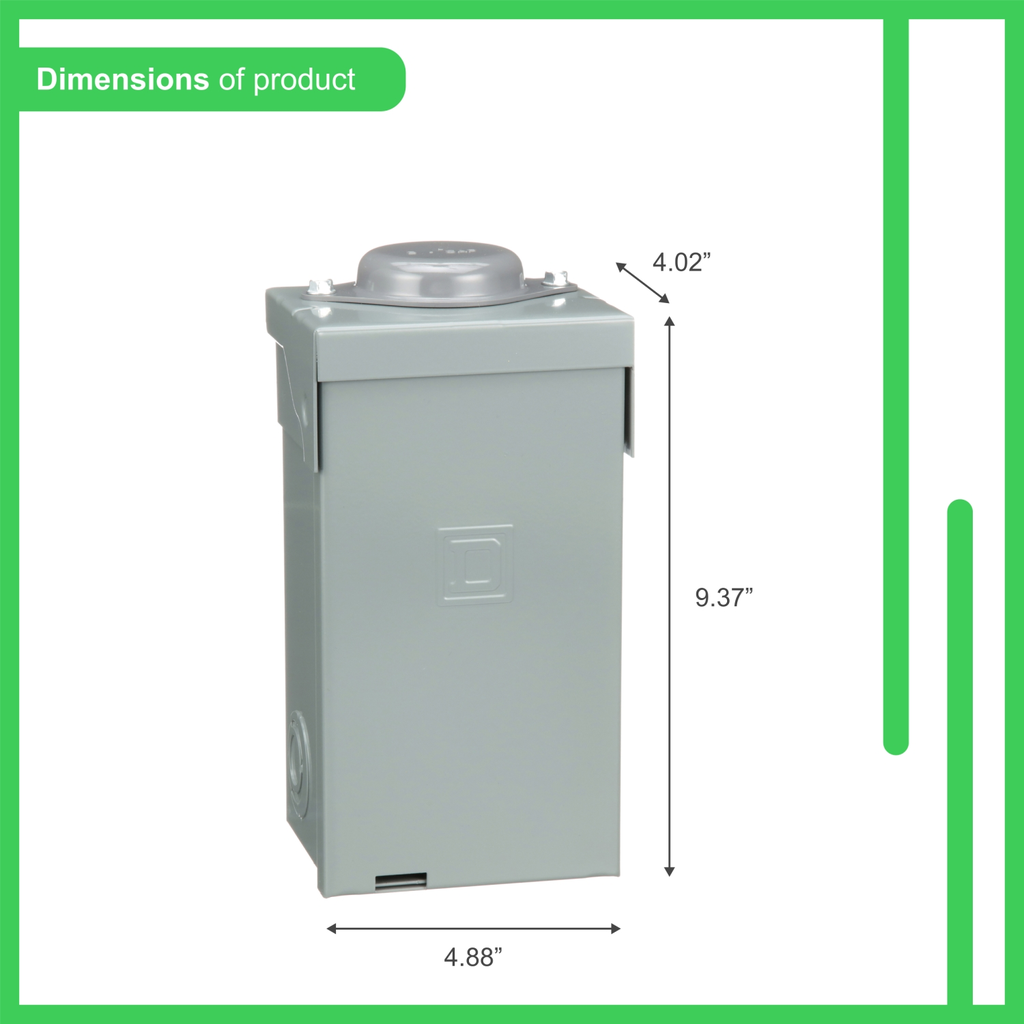

Dimensions

Depth
102 mm
Height
238 mm
Length
4.02 Inch
Width
124 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL Listed File E-6294
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
