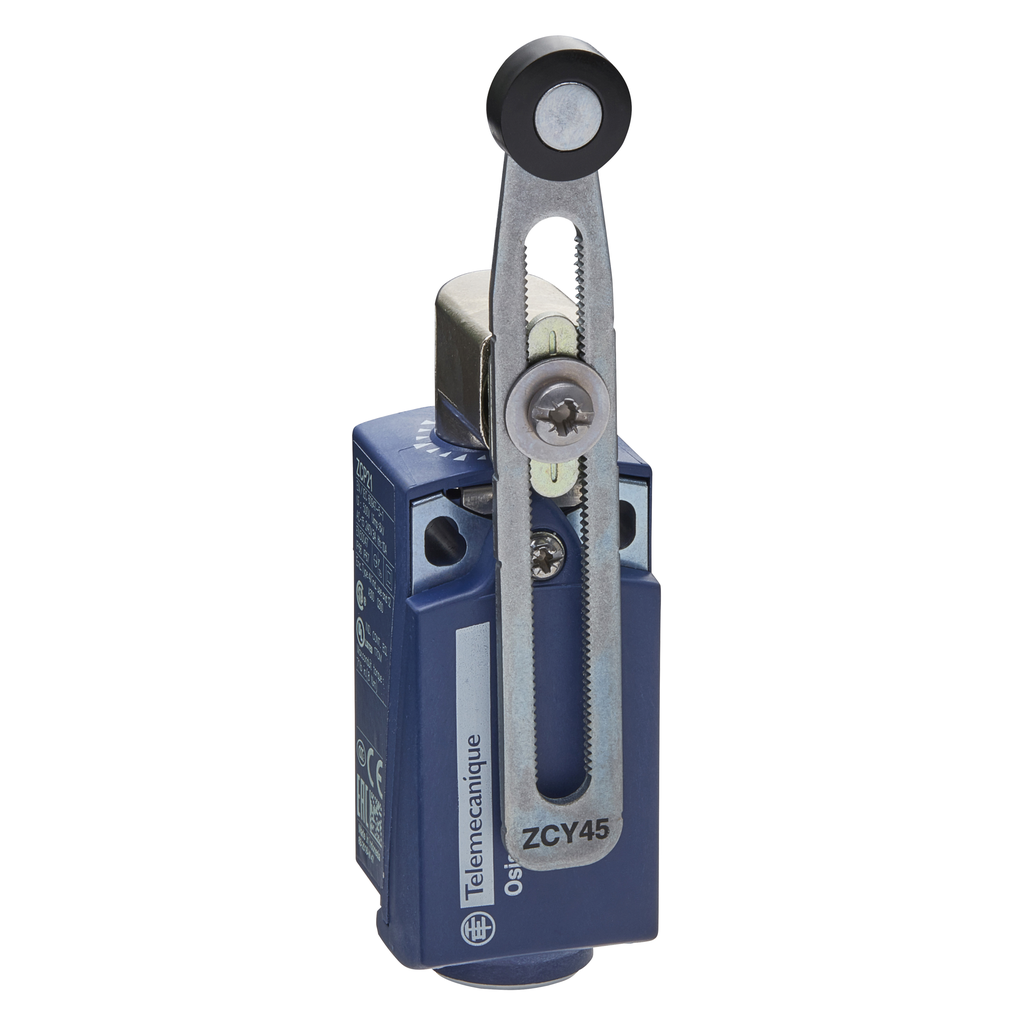

Product image for TES XCKP2545G11 Limit switch, Limit switches XC Standard, XCKP, thermoplastic plastic roller lever var.length, 1NC+1 NO, slow, Pg11
Image thumbnail 0
Image thumbnail 1
Email

TES XCKP2545G11 Limit switch, Limit switches XC Standard, XCKP, thermoplastic plastic roller lever var.length, 1NC+1 NO, slow, Pg11

Manufacturer: TES Electric | Catalog # XCKP2545G11 | Cooper Electric Part # 1552264
$91.43/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Limit switch, Limit switches XC Standard, XCKP, thermoplastic plastic roller lever var.length, 1NC+1 NO, slow, Pg11

Technical Information

Action
BY 30A CAM,LATERAL APPROACH, 2 DIRECTIONS,SLOW-BREAK, BREAK BEFORE MAKE
Actuator
SPRING RETURN ROLLER LEVER THERMOPLASTIC VARIABLE LENGTH
Applications
COMPACT VARIABLE
Body Material
Plastic
Contact Configuration
1 NC + 1 NO
Material
Plastic
Net Weight
0.145 kg
Number of Poles
2 Pole
Operating Cycles
5000000 CYCLES, DC-13, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Operating Temperature
-25-70 Adegrees C
Size
30 MM,31 MM,65-65 MM
Standard
CSA C22.2 No 14,EN 60204-1,EN 60947-5-1,IEC 60204-1,IEC 60947-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW-CLAMP TERMINALS 1 X 0.5...2 X 2.5 MMA
Type
LIMIT SWITCH,ROTARY HEAD

Manufacturer Information

Brand
Telemecanique
Sub Brand
XCKP

General Product Info

12-Digit UPC
891103177498
GTiN
03389110317749
Product UPC
38911031774
Weight
0.32 lb

Dimensions

Depth
30 mm
Height
65-65 mm
Warranty Length
18 mth
Width
31 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CCC,CSA,UL
Country of Origin
Indonesia
