Product image for Hoffman D181610CHSCFGWP 18x16x10
Email

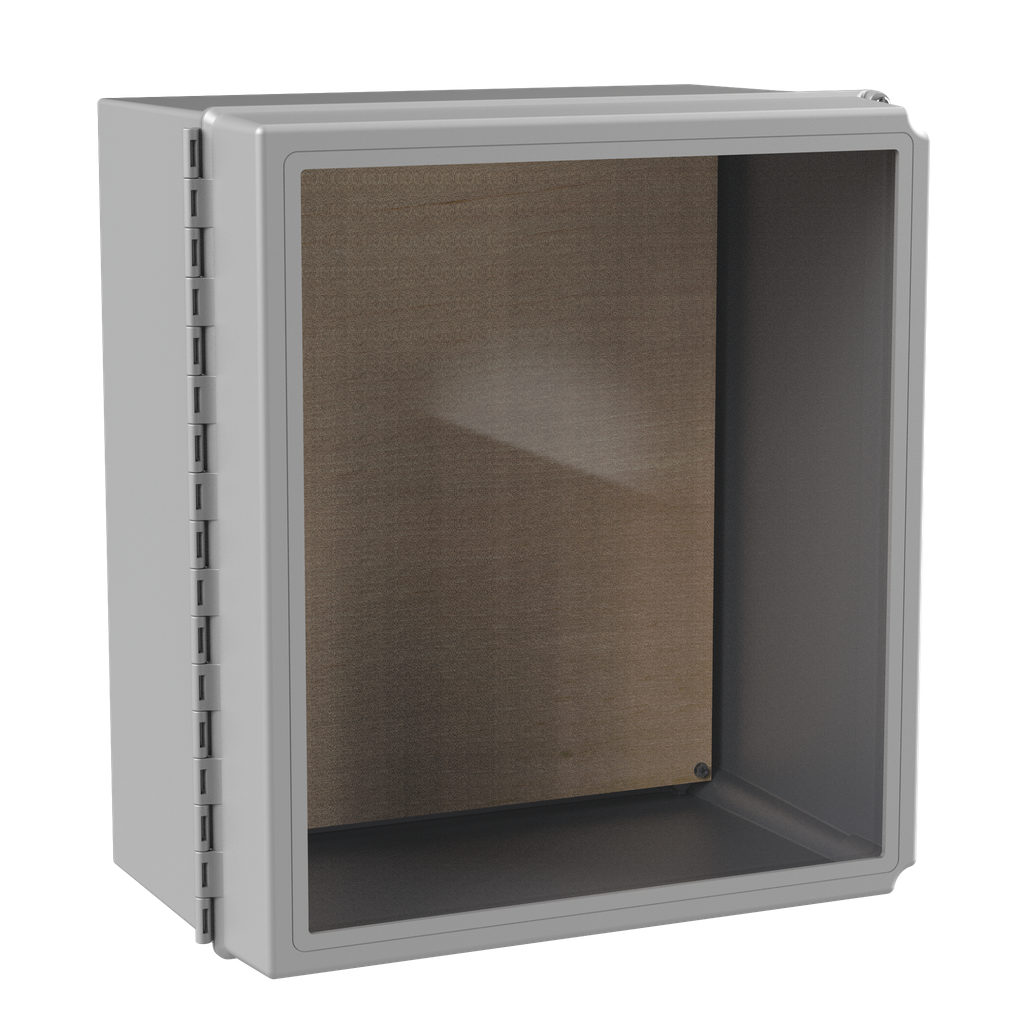

Hoffman D181610CHSCFGWP 18x16x10

Manufacturer: Hoffman | Catalog # D181610CHSCFGWP | Cooper Electric Part # 1551673
$702.74/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
The fiberglass WiFi Cabinet is a secure, hinged enclosure that does not impede WiFi or WLAN signals. It is ideal for housing wireless equipment in locations such as tunnels, floor vaults, marinas, outside walls or rooftops.

Technical Information

Applications
Corrosive Environments; Controls and Drives
Color Coding
RAL 7035
Material
Fiberglass
Standard
12,13,4X,And 13,CSA File No. LR42,CUL Listed Per CSA C22.2 No 94,Enclosure Flammability Rating Per UL 508,File No. E61997,NEMA/EEMAC Type 4,Type 4,UL 508A Listed,Window Flammability Rating Per UL 508
Type
Data Networking Wall Mounted Cabinets

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510149666
Color
Gray
Finish
Matte
GTiN
00783510149666
Product UPC
78351014966
Weight
18 lb

Dimensions

Depth
10 Inch
Height
11 Inch
Length
19 Inch
Thickness
0.14 in
Width
16 in
Features
  • Fiberglass is easily punched, drilled, filed or sawed
  • Seamless foam-in-place gasket assures watertight and dusttight seal
  • Molded-in-place threaded brass inserts and plated steel screws are provided for mounting optional panels and terminal block kits
  • Removable hinged cover attached to body with Type 316 stainless steel hinge pin
  • Screw cover enclosures are secured with two captivated Type 316 stainless steel slotted cross-point cover screws
  • Available quick-release latches are corrosion-resistant polyester located in corners to provide unobstructed access to enclosure
  • Enclosure and door made of molded fiberglass polyester that resists chemicals and temperature change
  • Scratch-resistant polycarbonate windows are permanently bonded in place
  • Polyester mounting brackets and stainless steel attachment screws are provided with each enclosure
  • Hinge pin and bail are corrosion-resistant Type 316 stainless steel
  • Includes a 3/4-inch plywood panel for mounting equipment
