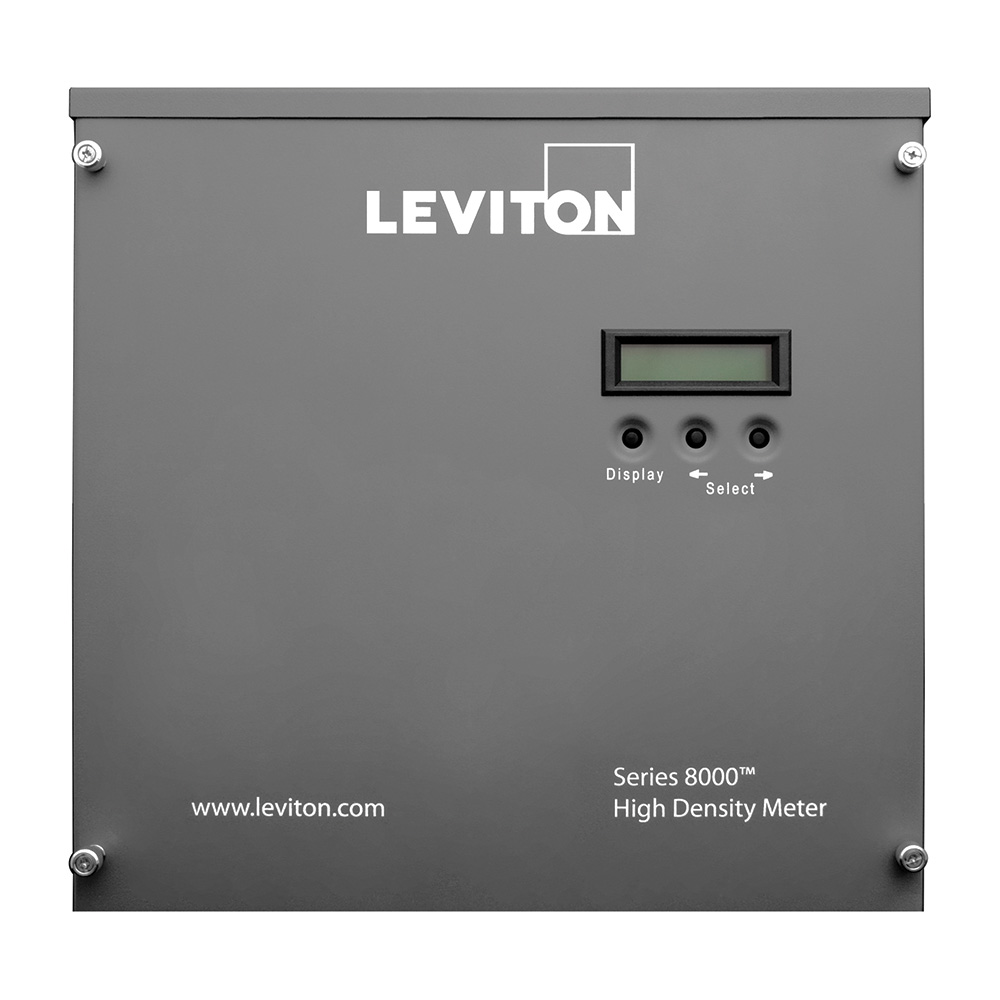

Product image for LEV 277TS-241 277V TS 24/12/08
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

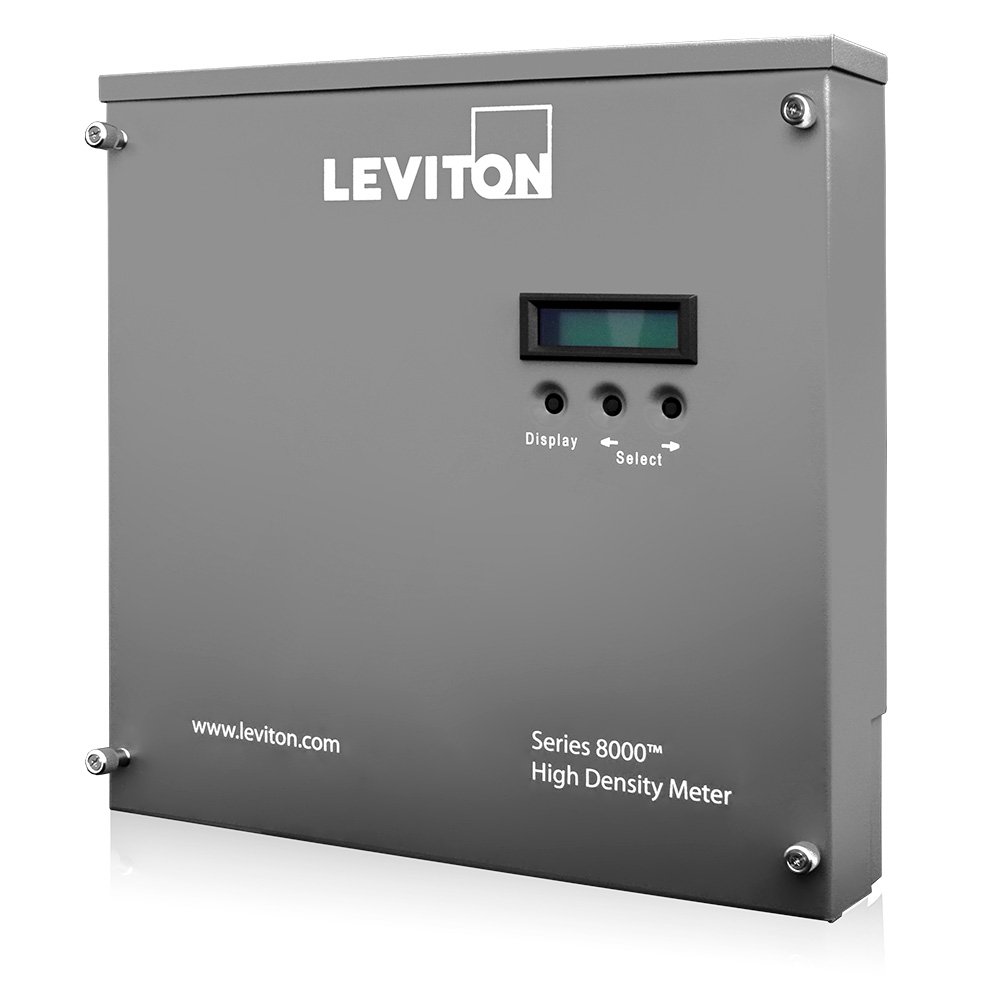

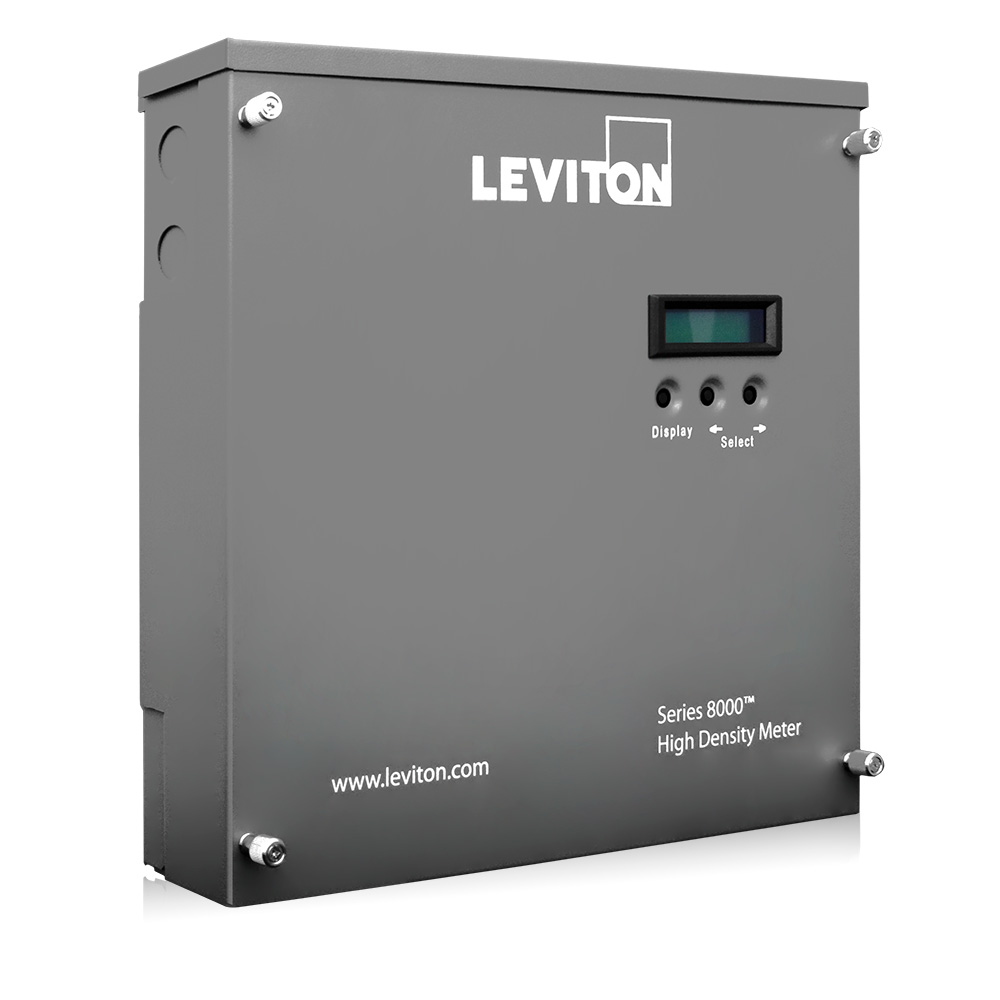

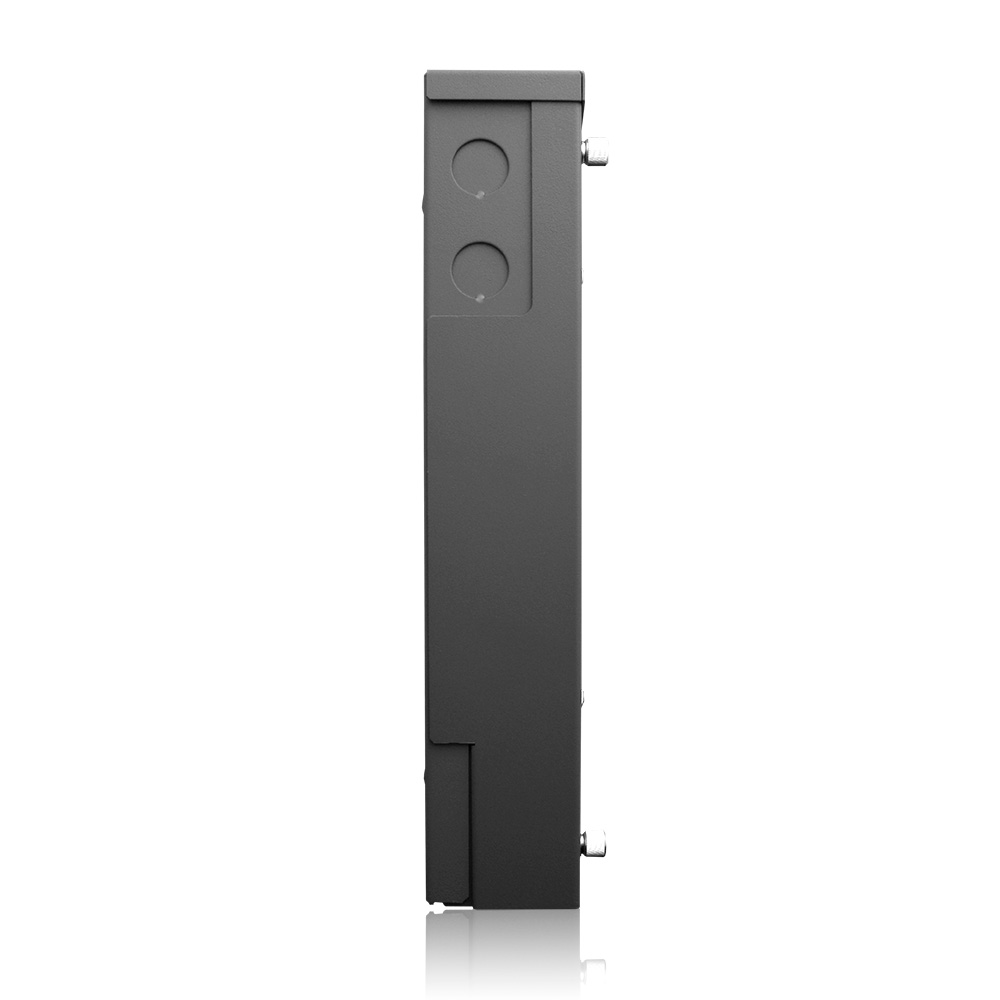

LEV 277TS-241 277V TS 24/12/08

Manufacturer: Leviton Mfg Co | Catalog # 277TS-241 | Cooper Electric Part # 1549330
$4,889.32 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
Series 8000, Commercial & Industrial Submeter, 277/480V, Phase Config 24x1 (1P/3W), 12x2 (2P/3W), 8x3 (3P/4W) with Terminal Strips, Title 24 compliant, ASHRAE 90.1 compliant, SUBMETER ONLY

Technical Information

Amperage
100 Amp
Applications
Commercial, Industrial
Communication Type
BACnet/IP,FTP,HTTP/HTML,ModBus/RTU,ModBus/TCP,NTP,PPP,SNMP-Trap,TCP/IP,XML
Enclosure Type
Indoor
Operating Temperature
-40 degrees C
Standard
ANCE Compliant,ASHRAE (Standard 90.1 Compliant),CUL\US Listed 9034,Code Compliance (California Title 24),FCC Compliant,NOM (057)
Type
Submeter
Voltage
277/480 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
555C Classic Series

General Product Info

12-Digit UPC
078477752326
GTiN
00078477752326
Product UPC
07847775232
Weight
14 lb

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
Canada
Features
  • Building automation integration and tenant metering
  • Multiple point meter-installation and hardware-savings
  • Can monitor as low as 2A
  • Provides multiple electric loads in one device
  • Monitors up to 24 current transformers - 8 (3) phase, 12 (2) phase or 24 single phase loads
  • 100 - 5,000 amp current transformers
  • ModBus TCP, ModBus RTU (RS-485) and BACnet IP standard feature
  • Measures kilowatt hours, kW demand, volts, amps
  • Interval and net metering
  • Configurable via Ethernet or simple ModBus RTU network to BMS or VerifEye software solutions for tenant billing or measurement & verification (M&V)
  • The VerifEye™ Series 8000 Multiple Point Submeters are designed to meter multi-tenant office buildings, medium-sized retail, institutional, multi-tenant residential and other high density applications. VerifEye Series 8000 submeters provide twenty-four meter elements that can be configured as any combination of 1 phase, 2 phase or 3 phase meters or monitors. Do you have a question about submetering? Contact us to learn more.
