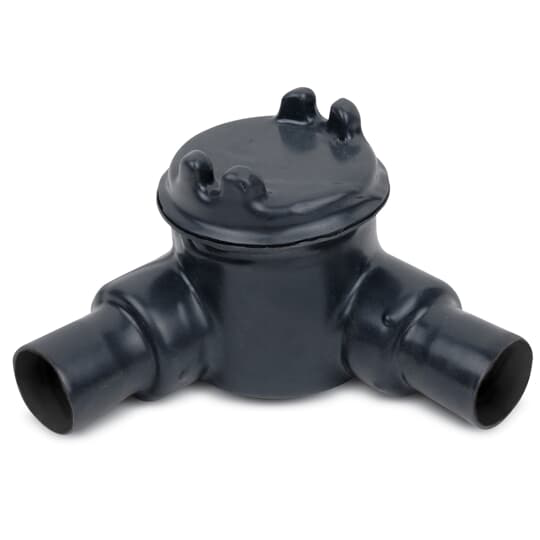

Product image for ABB GUAN24-G CONDBOX NTYPE 3/4IN OP
Email

ABB GUAN24-G CONDBOX NTYPE 3/4IN OP

Manufacturer: Ocal / Thomas & Betts | Catalog # GUAN24-G | Cooper Electric Part # 1548009
$356.73/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
PVC Double-Coated Conduit Outlet Box for Hazardous Locations, GUAN Type - L Shape, Pipe Size 3/4 Inch/21 Metric, Box is Ductile Iron with Zinc Plating, Cover is Die Cast Aluminum, Cover Opening 2.00 Inch/50.80 Millimeters, Gray

Technical Information

Applications
For use in Hazardous Locations to Provide Access to Conductors for Pulling, Splicing, Maintenance and Future Changes/Upgrades
Conduit Body Type
GUAN
Material
Zinc
Size
3/4 in 21 mm
Trade Size
3/4 Inch
Type
L-Shape

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
704508385644
Color
Gray
Finish
PVC Coated
GTiN
00704508385644
Product UPC
70450838564
Notes
  • Metric size designator (ANSI C80. 1-1994)
  • Ratings are prior to PVC coating
  • Dimensions are of uncoated fittings
Features
  • All hubs have a minimum of five full threads, integral bushing and pressure-sealing sleeves
  • Explosion-proof, dust-ignition-proof, raintight and suitable for use in the following environments. Class I, Division 1 & 2, Groups C & D - Class II, Division 1, Groups E, F, G - Class III, Division 1 & 2 - NEMA 3, 4, 7 CD, 9 EFG.
  • Nominal .002 in. (2 mil) blue urethane coating on both interior and exterior and nominal .040 in. (40 mil) PVC coating bonded to exterior
  • All units furnished with internal grounding screw and ship complete with aluminum cover with O-ring gasket
  • Grade 60-45-10 ductile iron bodies and cast aluminum covers
Certifications
  • UL
  • CSA
Application
  • Provide access to conductors for maintenance and future system changes
  • To change direction in rigid conduit systems
  • GUA series conduit boxes are installed in hazardous locations to protect conductors and act as pull and splice box.
  • Mounting outlets for fixtures, with proper covers
  • Join two or more pieces of conduit long runs
