Square D VLSC3P1 DISCONNECT SWITCH, 3 POLE TERMINAL COVER FOR 16-63A

Manufacturer: Square-D / Schneider | Catalog # VLSC3P1 | Cooper Electric Part # 1547676
$32.35/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

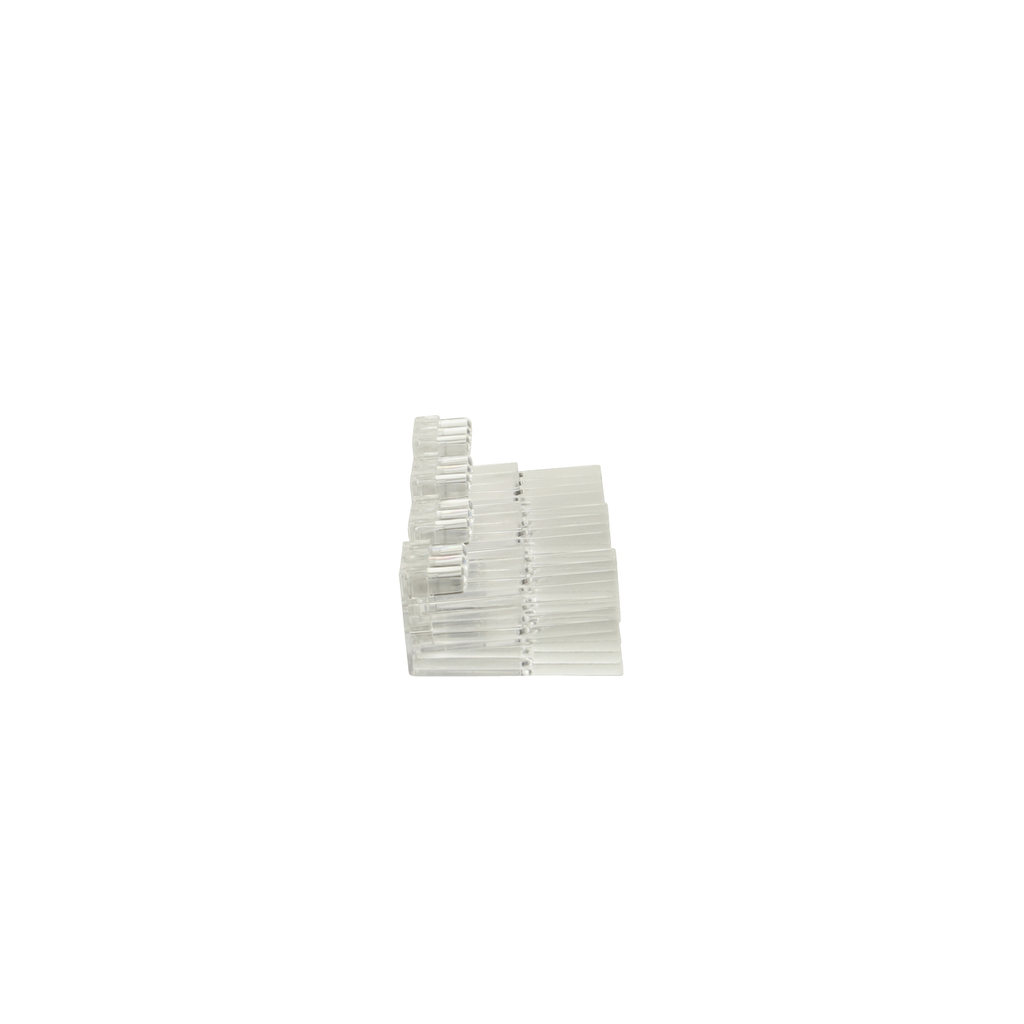

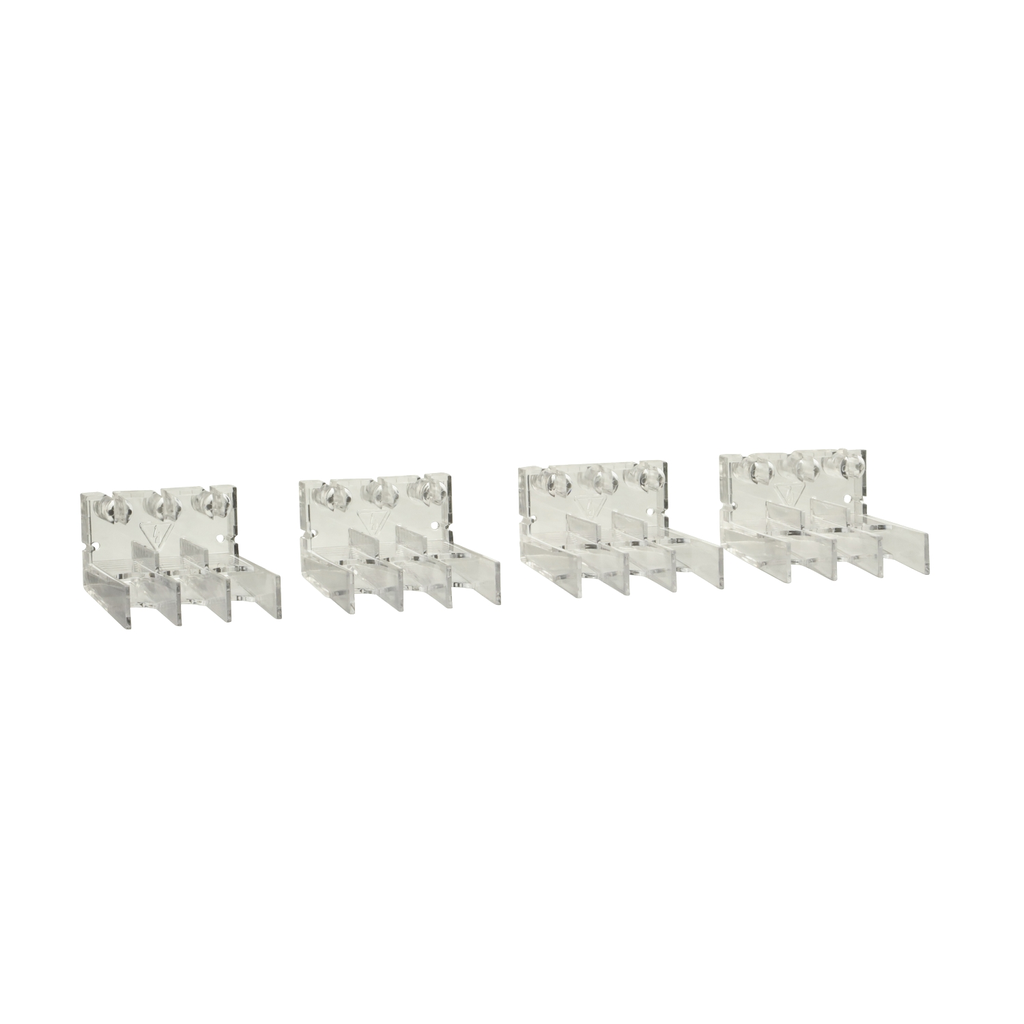

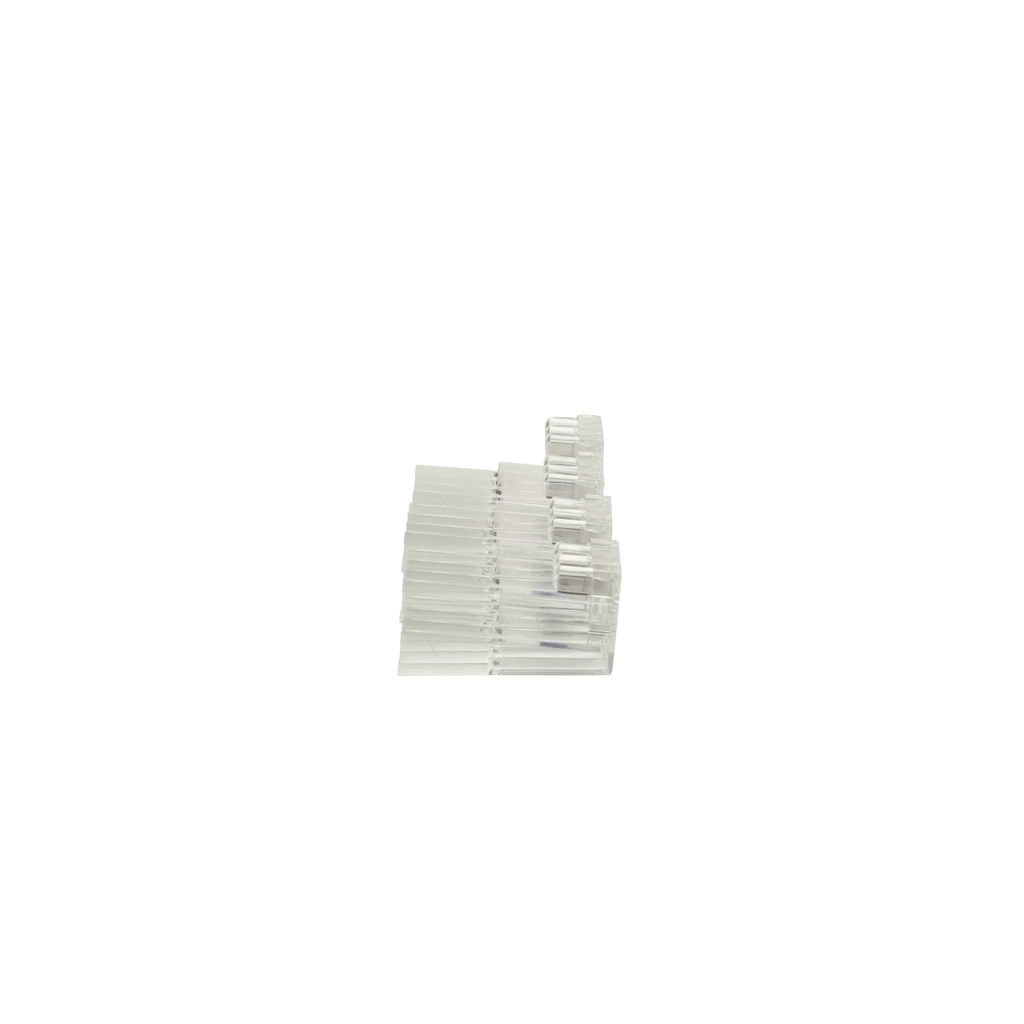

These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This protective terminal cover is for the three poles of the main VLS disconnect switch. This protective cover can be added to a VLS3P016R1, VLS3P025R1, VLS3P032R1, VLS3P040R1 or VLS3P063R1 DIN rail mount disconnect switch. This protective cover can be added to a VLS3P016D1, VLS3P025D1, VLS3P032D1 or VLS3P040D1 door mount disconnect switch. Each package has two of these terminal protective covers. This protective terminal cover is 1.04 inches tall, 1.42 inches wide and 1.81 inches deep. The switch weighs 0.04 lbs. This protective cover is cULus Listed and meets IEC 60947-3 requirements.

Technical Information

Applications
Protection accessory
Net Weight
0.018 kg
Number of Poles
3 Pole
Size
1.81 in
Type
Terminal cover

Manufacturer Information

Brand
Schneider Electric
Sub Brand
VLSC

General Product Info

12-Digit UPC
606481157129
GTiN
03606481157126
Product UPC
78590157425
Weight
0.018 kg

Dimensions

Depth
46 mm
Height
26.4 mm
Width
36 mm

Certifications and Compliance

Country of Origin
Italy
  • The three pole 16 to 63A disconnect switches are made up of a single unit body at 36mm wide while those rated 63 to 125A are only 70mm wide.Accessory Flexibility
  • Simultaneous or early make contact operation of the fourth pole with respect to the disconnect switch polesAdd on Auxiliary Contacts
  • Compact Size
  • All VLS disconnect switches are certified by cCSAus and are UL Listed.Side Mount Add on Fourth Pole
  • Mounting and removal of the fourth pole and add on blocks are simple and quick operations with no need for tools.Certifications
  • One add on block suitable for use with all eight ratings of disconnect switches, having simultaneuous operation with the switch poles. Includes versions with an early break NO contact.6 and 8 Pole Version
  • A mechanical coupling system is available for the 16 to 125A disconnect switches for DIN rail mounting, to allow for 6 or 8 pole disconnectors, along with a mechanical interlock mechanism for the line changeover function.
