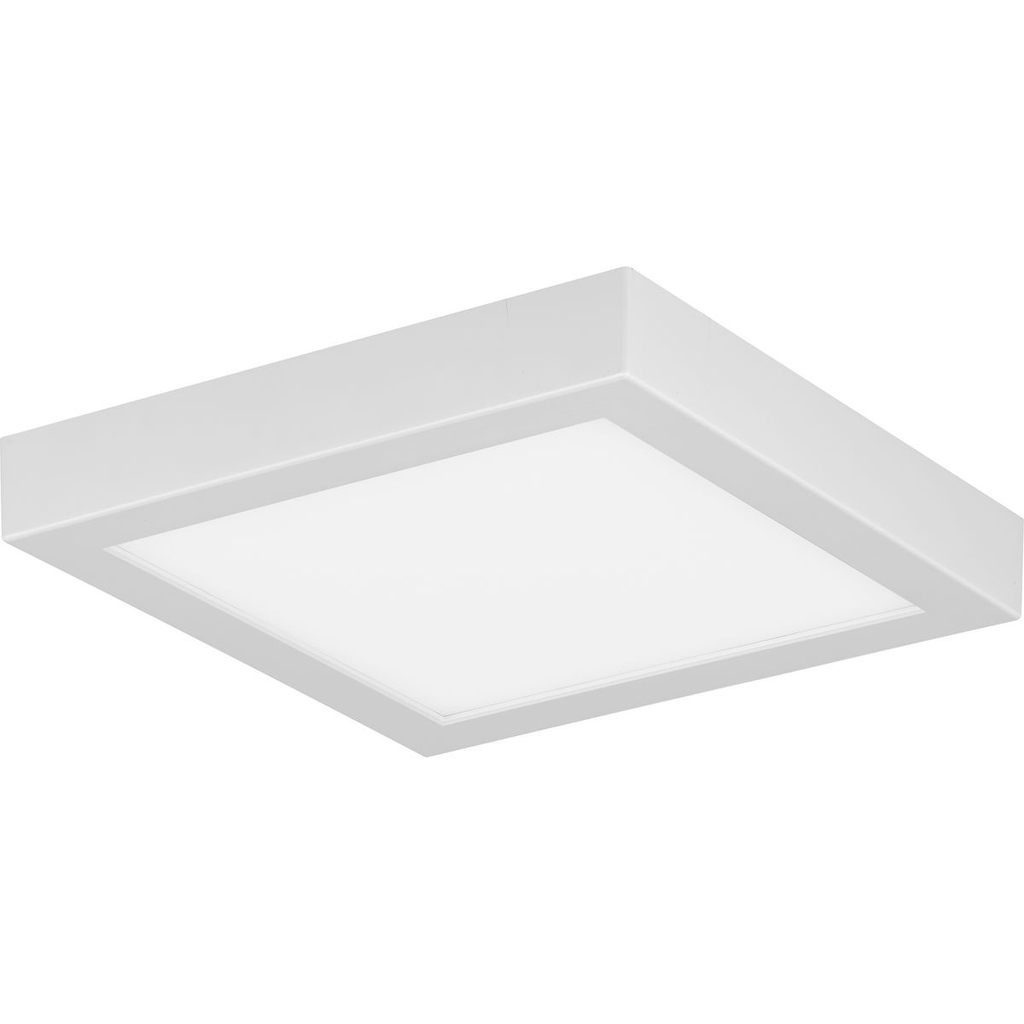

Progress P810019-030-30 Everlume Collection White 7" Edgelit Square

Manufacturer: Progress Lighting | Catalog # P810019-030-30 | Cooper Electric Part # 1545727
$110.75/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Installation / Instruction Manual

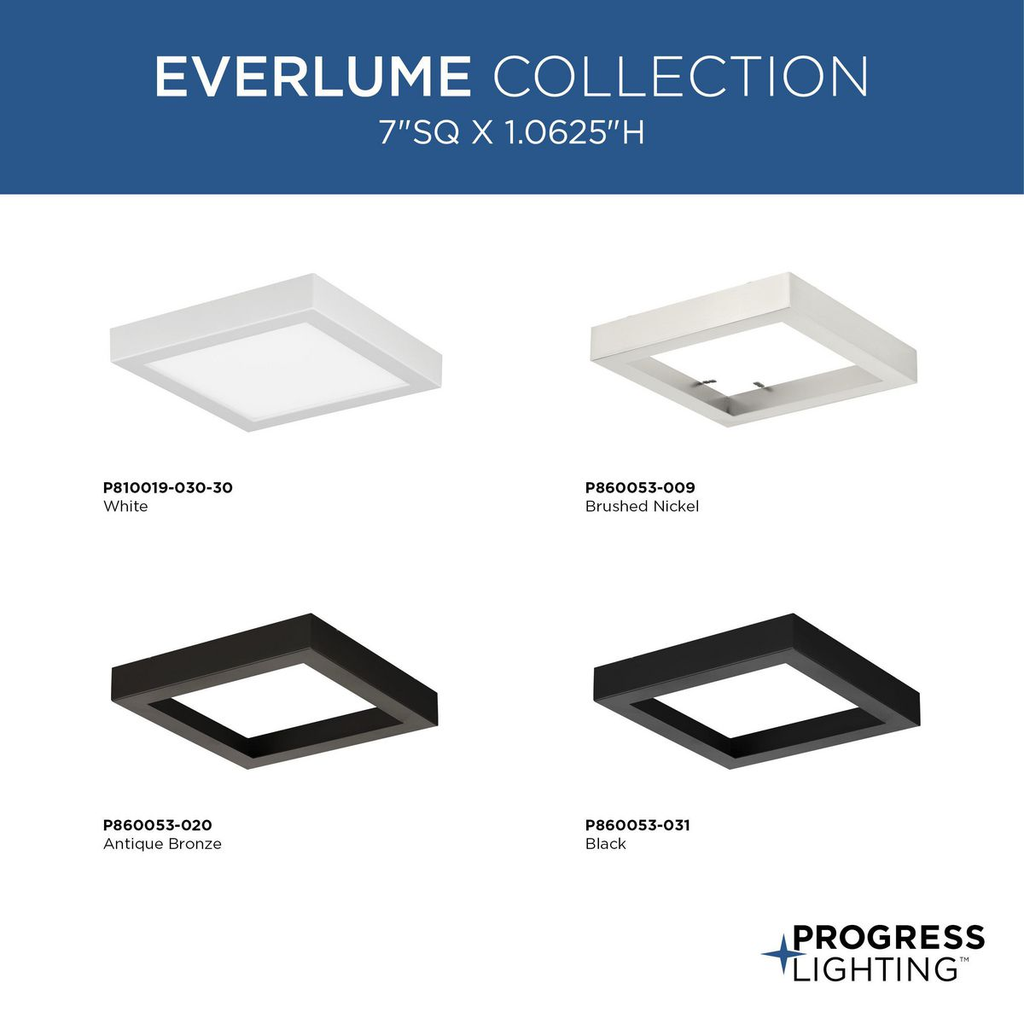

Edgelit technology creates a large glare-free and evenly illuminated surface for a variety of applications for both residential and commercial settings. Offering a low-profile design, LED Flush Mount is available in three sizes: 7", 11", and 14", in a White finish. The integrated driver does not recess into junction box, allowing for easy installation into 4" octagonal, 4" round PVC and 4-1/2" ceiling pan junction boxes. Wet location listed and offers a 50,000-hour LED life.

Technical Information

Amperage
0.128 Amp
Bulb Included
Yes
Color Accuracy
90
Color Rendering Index
90
Color Temperature
3000 K
Correlated Color Temp
3,000 K
Frequency
60 Hz
Lamp Type
LED
Lamp Wattage
15 W
Lumens
1,125 Lumen
Material
Polycarbonate
Number of Lamps
1,1
Power Source
Hardwired
Style
Utilitarian
Type
Non-Reversing
Voltage
120 Volt
Wattage
15 Watt
Wire Length
6 in

Packaging

Shipping Weight
1.46 Pound

Manufacturer Information

Brand
Progress

General Product Info

12-Digit UPC
785247242252
Collection
Everlume
Color
White
Finish
Painted,Painted,White
GTiN
00785247242252
Product UPC
78524724225
Weight
1.2 Pound

Dimensions

Depth
7 Inch
Height
1-1/8 Inch
Length
7 Inch
Warranty Length
5 yr
Width
7 Inch

Certifications and Compliance

CA Prop65 Warning
Yes
Country of Origin
China
Features
  • 7 square Everlume Edgelit surface mount with LED technology 3000K, 90 CRI, 1125 lumens (delivered)
  • Simple installation to steel mounting plate
  • Fixture is adjustable after installation, allowing for easy alignment
  • Integrated DC LED power supply capable of flicker-free dimming to 10% brightness with many Triac/Forward Phase and ELV reverse dimmers
  • Can be installed to 4\" octagonal j-box, 4x1/2\" round shallow j-box and 4\" round PVC j-box
  • Can be mounted on ceiling or wall
  • Suitable for use in IC or Non-IC applications
  • Meets California Title 24 JA8-2019 and is Energy Star listed
  • Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements.
  • Maximum 25 luminaires on a circuit (without dimmer).
  • 50,000 hour rated lifetime.
