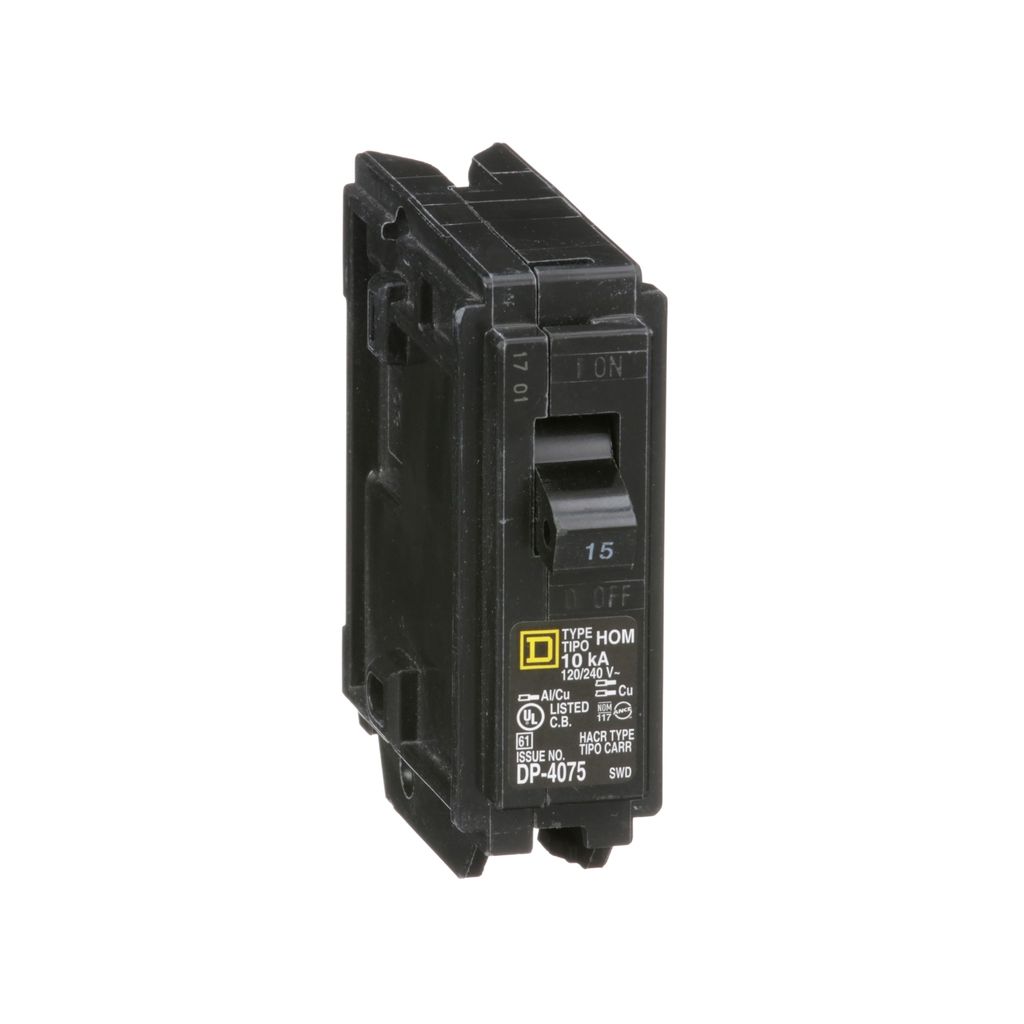

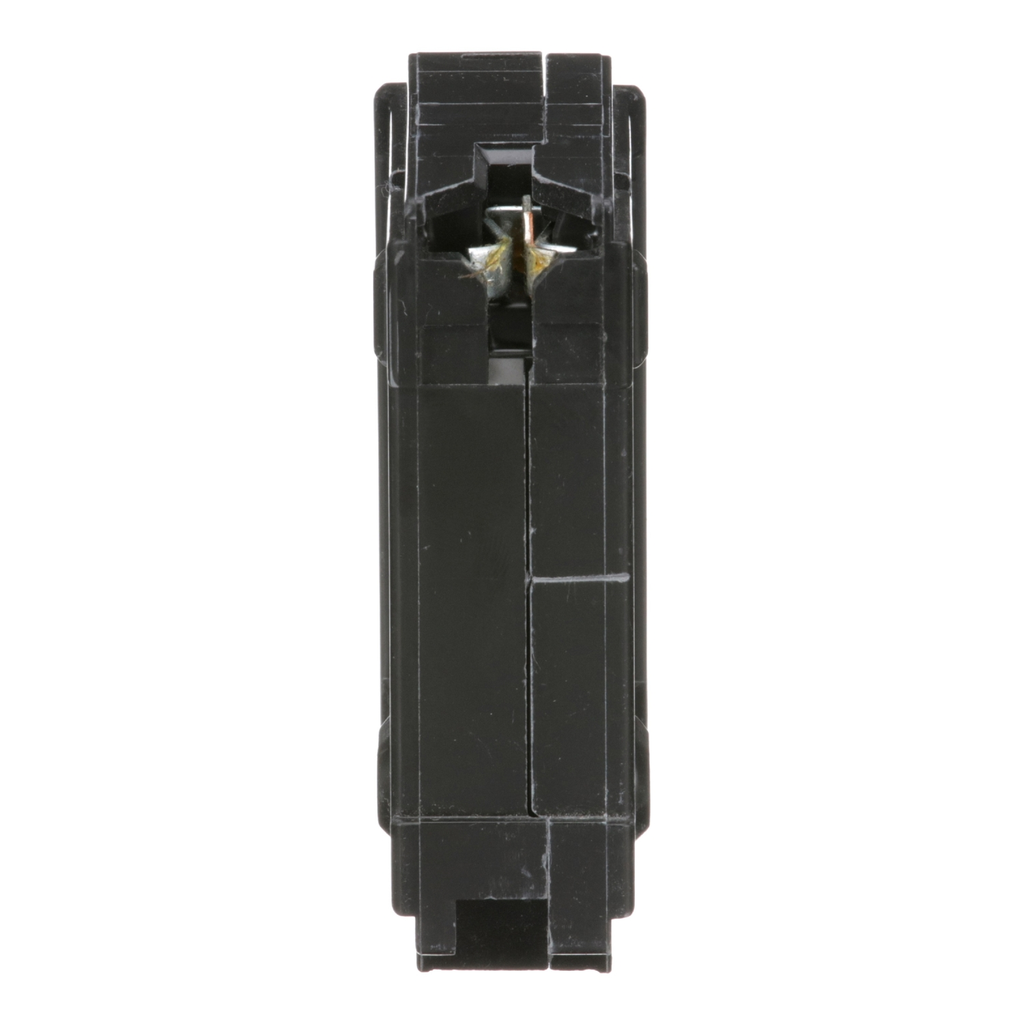

Product image for Square D HOM115 120/240 Volt 15 Amp Miniature Circuit Breaker
Image thumbnail 0
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Email

Square D HOM115 120/240 Volt 15 Amp Miniature Circuit Breaker

Manufacturer: Square-D / Schneider | Catalog # HOM115 | Cooper Electric Part # 15367
$10.00/ea
ea
Log in or register to view your price, purchase history, and more!
1 2 4
Plug-In Neutral Pigtail Neutral
109 available

For Pick Up

at Ocean Opens Friday 8:00am ET
3,990 available

For Delivery

Order by Friday 5:00pm ET for delivery Monday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 15A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.

Technical Information

Amperage
15 Amp
Applications
PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION
Circuit Breaker Type
Standard
Conductor Size
14-8 AWG
Current
15 Amp
Interrupt Rating
10 kAIC
Line Rated Current
15 A
Mounting Type
Plug-in
Number of Poles
1 Pole
Number of Spaces
1
Operating Temperature
40 Adegrees C
Range
Homeline NULL
Short Circuit Current
10 kA
Short Circuit Current Ratng
10 kA
TC Connection
SCREW #14-8 AWG(AL/CU)
Type
MINIATURE CIRCUIT BREAKER
Voltage
120/240 Volt
Wire Size
AWG 14...AWG 8 aluminium/copper)1;AWG 14...AWG 10 copper)2

Manufacturer Information

Brand
Square D
Sub Brand
HOMELINE

General Product Info

12-Digit UPC
785901065203
GTiN
00785901065203
Product UPC
78590106520

Dimensions

Depth
2.98 Inch
Height
3.13 Inch
Length
2.98 Inch
Warranty Length
Lifetime
Width
1 in

Certifications and Compliance

CA Prop65 Warning
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
USA
Carbon Footprint Of The Installation Phase A5
  • 0.0001336167
  • 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0 kg CO2 eq.
  • 0.0274568456
Ue Rated Operational Voltage
  • 120/240 V AC
Related Products
  • HOM115CAFI
  • HOM115DF
  • HOM115GFI
  • HOM115PCAFIC
  • B075
  • B100
  • B125
  • B150
  • B200
  • B250
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 0.6 kg CO2 eq.
  • 0.5504662911
Persona Type Names
  • End User
  • Consumer
  • Contractor
  • Original Equipment Manufacturer
  • Electrician
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 22 kg CO2 eq.
  • 21.872
Persona Type Ids
  • EU
  • EUA
  • LC
  • OM
  • SC
Carbon Footprint Of The Distribution Phase A4
  • 0.0336125268
  • 0 kg CO2 eq.
Tightening Torque
  • 4.0-4.0 N.m 2.5-6 mm² (AWG 14...AWG 8)
AWG Gauge
  • 1 x AWG 14...AWG 8 ( aluminium/copper )
  • 2 x AWG 14...AWG 10 ( copper )
