SQUARED SSM1A455BD Harmony, Solid s

Manufacturer: Square-D / Schneider | Catalog # SSM1A455BD | Cooper Electric Part # 1535846
$83.47/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1

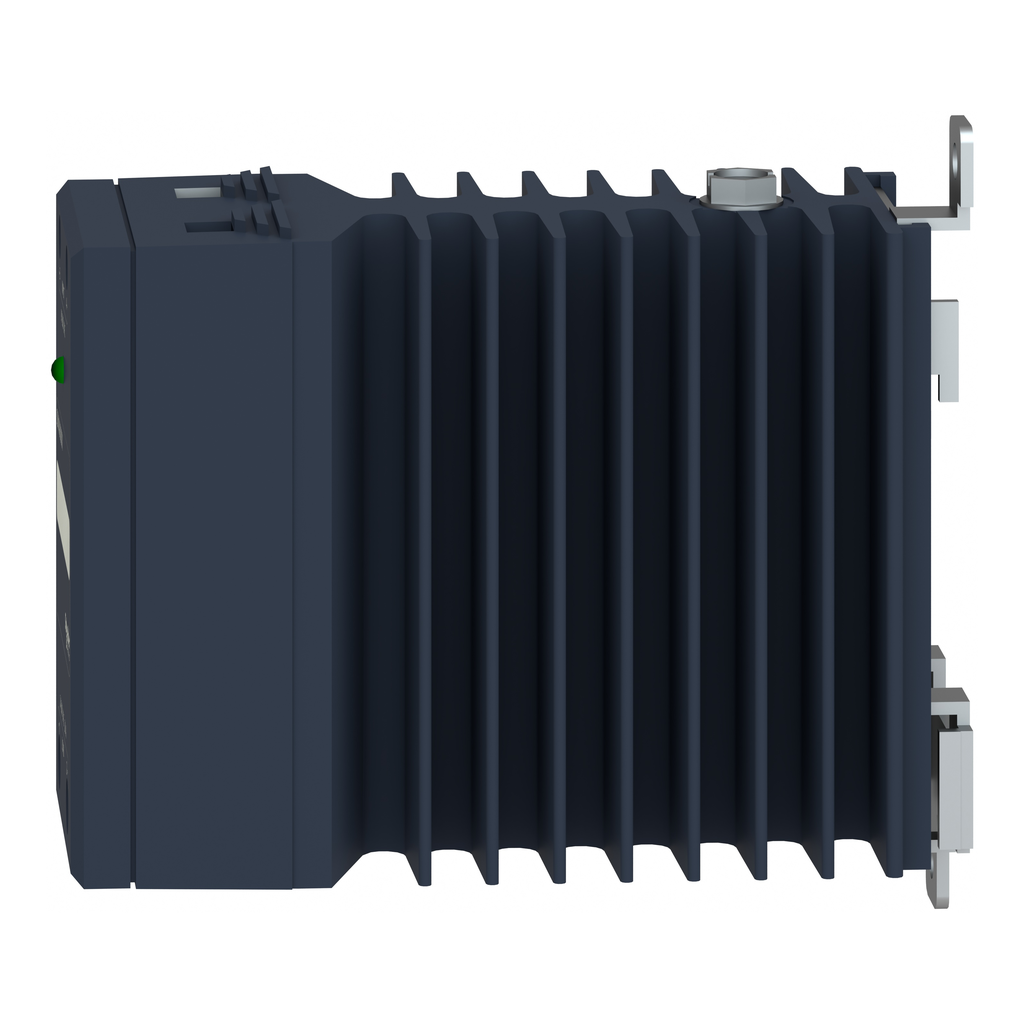

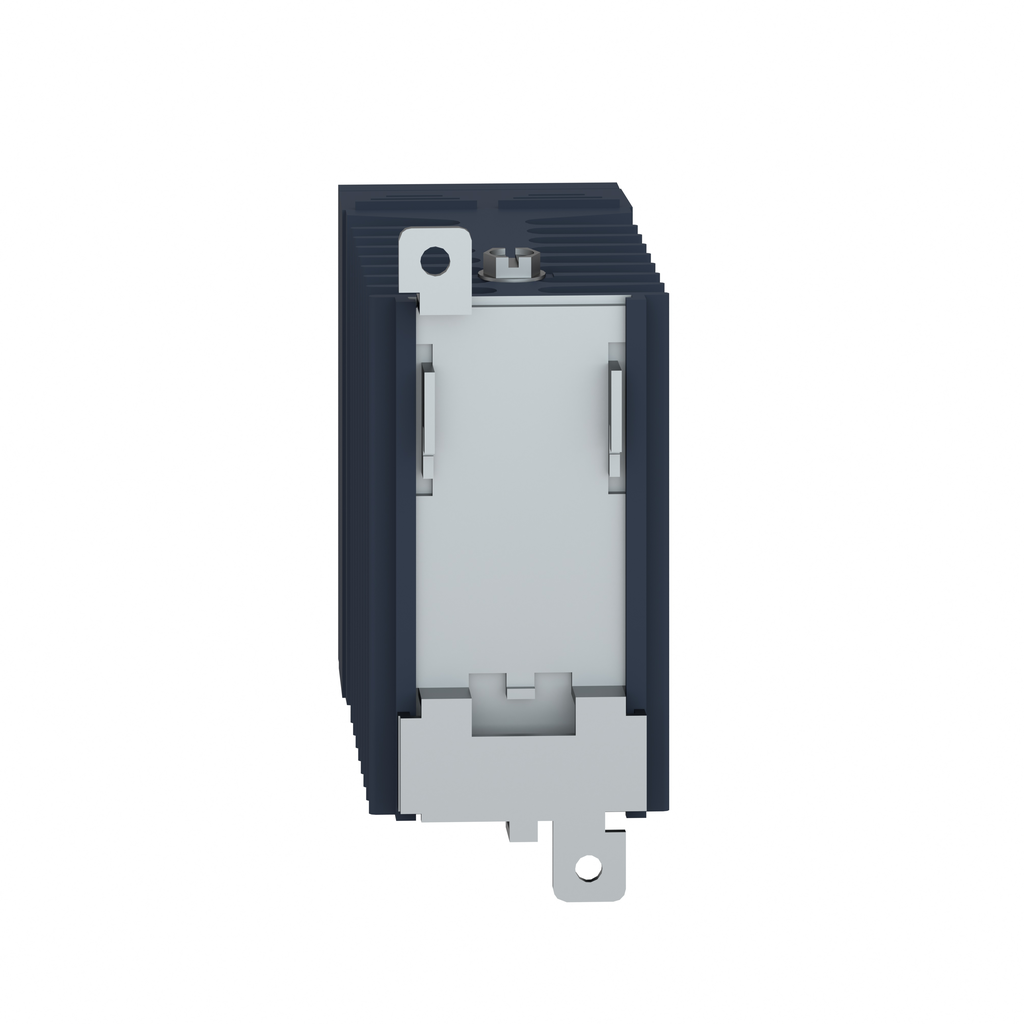

This SSM modular relay is part of the range of Harmony solid state relays. It is rated 55A, is controlled with a 4 to 32Vdc input, has a rated load voltage of 48 to 660Vac with zero voltage switching, ideal for resistive loads. This static relay has a built-in heatsink for limited derating while limiting occupied space in panel. It mounts on 35mm DIN rails and comes with a secure mounting latch. It also has a visual indicator showing the status of its input. 0 0 0 0 0 0 0 0 0 0 0

Technical Information

Amperage
55 Amp
Applications
ZELIO RELAY
Input Current
1417 mA
IP Rating
IP20
Line Rated Current
55 A
Maximum Load Current
0.1555 A
Net Weight
0.476 kg
Number of Phases
1 Phase
Operating Temperature
-40-80 Adegrees C
Output Voltage
48-660 V
Response Time
0.5 cycle (turn-on);0.5 cycle (turn-off)
Standard
CSA C22.2 No 14,IEC 60950-1,UL 508
Storage Temperature
-40-125 degrees C
TC Connection
SCREW TERMINALS 1 X 0.2...1 X 3.3 MMA, AWG 24...AWG 12) INPUT-SCREW TERMINALS 1 X 0.2...1 X 8.4 MMA, AWG 24...AWG 8) OUTPUT
Type
Solid state relay

Manufacturer Information

Brand
Schneider Electric
Sub Brand
SSM1

General Product Info

12-Digit UPC
785901416081
GTiN
03606485441689
Product UPC
78590141608
Weight
0.476 kg

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,EAC,UL
Country of Origin
Mexico
