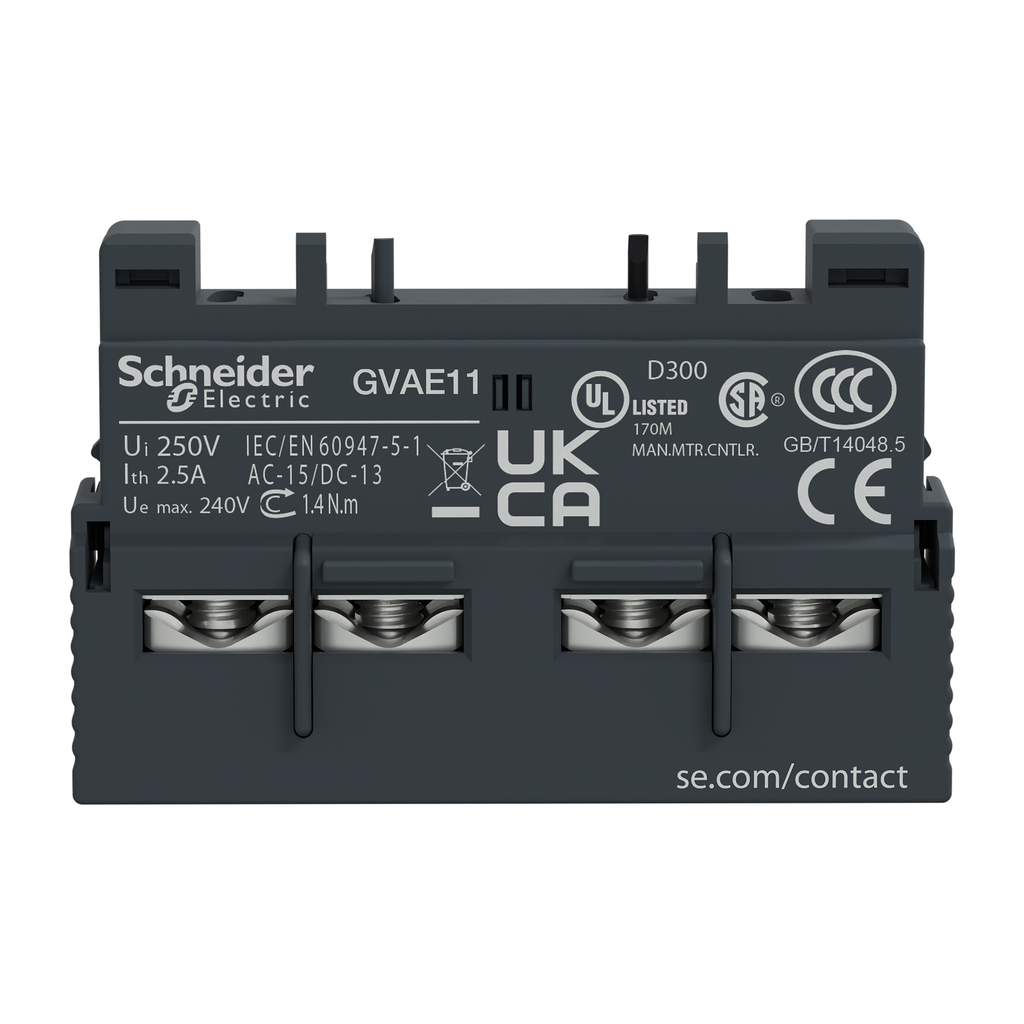

Square D GVAE11 1NO 1NC 240 VAC 60 VDC 2.5 Amp Manual Starter Auxiliary Contact

Manufacturer: Square-D / Schneider | Catalog # GVAE11 | Cooper Electric Part # 153517
$35.35/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
19 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NO+1NC instantaneous auxiliary contacts. Rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on front side of the circuit breaker, connection by screw clamp terminals. Sold in lots of 10 units. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Technical Information

Amperage
2.5 Amp
Applications
GV2P-GV2RT-GV2ME-GV3L-GV2LE-GV3P-GV2L
Contact Configuration
1 NO + 1 NC
Net Weight
0.02 kg
Operating Cycles
100000 CYCLES
Range
TeSys
Size
11 MM,29 MM,45 MM
TC Connection
SCREW CLAMP TERMINALS 1 1-2.5 MMASOLID- SCREW CLAMP TERMINALS 2 1-2.5 MMASOLID- SCREW CLAMP TERMINALS 1 0.75-2.5 MMAFLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 0.75-2.5 MMAFLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 1 0.75-1.5 MMAFLEXIBLE WITH CABLE END
Type
AUXILIARY CONTACT BLOCK
Voltage
240 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
GVAE,TESYS

General Product Info

12-Digit UPC
389110343437
Environmental Conditions
NORMAL ENVIRONMENT
GTiN
03389110343434
Product UPC
78590134343
Weight
0.02 kg

Dimensions

Depth
29 mm
Height
11 mm
Length
0.1 Inch
Warranty Length
18 mth
Width
45 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UKCA
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • GV2ME08
  • GV2ME10
  • GV2ME14
  • GV2ME07
  • GV2ME06
  • GV2ME16
  • GV2ME20
  • GV2ME05
  • GV2ME22
  • GV2ME21
  • GV2ME32
  • GV3P40
  • GV2ME04
  • GV2P08
  • GV2P10
  • GV3P50
  • GV2P14
  • GV3P65
  • GV2P07
  • GV2P16
  • GV2P06
  • GV2ME03
  • GV2P20
  • GV2P32
  • GV2P05
  • GV2P22
  • GV3P80
  • GV2ME02
  • GV2L14
  • GV2P21
  • GV2P04
  • GV3P32
  • GV2L08
  • GV2LE14
  • GV2LE10
  • GV2L16
  • GV2L10
  • GV2L22
  • GV3P73
  • GV2RT10
  • GV3P25
  • GV2L20
  • GV2RT07
  • GV2RT08
  • GV2ME01
  • GV2LE16
  • GV2LE22
  • GV2LE08
  • GV2LE20
  • GV2L07
  • GV3L40
  • GV2RT06
  • GV2L32
  • GV3L50
  • GV2RT14
  • GV3L65
  • GV2P03
  • GV2LE07
  • GV2RT16
  • GV3P18
  • GV2RT20
  • GV3P13
  • GV2P02
  • GV2LE32
  • GV2RT03
  • GV2P01
  • GV2L06
  • GV3L32
  • GV2L05
  • GV2RT04
  • GV2LE06
  • GV2RT21
  • GV2LE05
  • GV2L03
  • GV2L04
  • GV3L25
  • GV3L73
  • GV2LE04
  • GV2LE03
