LITH JEBL 18L HVOLT 40K 80CRI WH LE

Manufacturer: Lithonia Lighting | Catalog # JEBL 18L HVOLT 40K 80CRI WH | Cooper Electric Part # 1534940
$425.39/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
LED Economical Round Bay Light, 18,000 nominal lumens, 347V-480V, 4000K, 80 color rendering index, White finish, SKU - 252JF2

Technical Information

Applications
Manufacturing,Warehouses
Average Rated Life
54,000 hr
Color Rendering Index
80
Color Temperature
4000 K
Correlated Color Temp
4000 K
Dimmable?
Yes
Lamp Type
LED
Lens Color
White
Lens Material
Tempered Glass
Lumens
18,000 Lumen
Mounting Type
Pendant,Suspended
Standard
ANATEL,CA Energy Commission Title 24,COFETEL,CUL,FCC,IC,SUTEL
Style
Traditional
Type
High Bay
Voltage
347 Volt
Wattage
135 Watt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
193047073745
Color
White
Construction
New Construction,Remodel
Environmental Conditions
Indoor
Finish
Gloss
Fixture Type
High Bay
GTiN
00193047073745
Product UPC
19304707374
Shape
Round
Weight
8.79 lb

Dimensions

Height
5 Inch
Length
13 Inch
Width
13 in
Features
  • JEBL comes standard with a die-cast aluminum construction, quick-disconnect driver housing and 6kV surge protection; JEBL is extremely durable and easy to install with mounting and reflector options; JEBL can be used in indoor and outdoor applications
  • Easily replace 6-lamp T5HO, 8-lamp T8 or 400W HID with LEDs that save energy and reduce total cost of ownership
  • 0-10V dimming standard for a dimming range of 100 to 10 percent
  • CSA listed to US and Canadian Safety Standards; Wet location listed; For use under covered ceilings; For use in ambient temperatures from -40°F (-40°C) to 131°F (55°C); IP65 rated
  • Install 1/4\" NPT eye bolt with 1/2\" thick loop and 17 3/4\" cord with dimming lead provided for easy installation and optional surface mount brackers allows for flexibility by adjusting 15 degree increments for a total range of 150 degrees
  • LEDs provided 80 color rendering index (CRI), 12,000 lumens at 4000K with a cool white color temperture

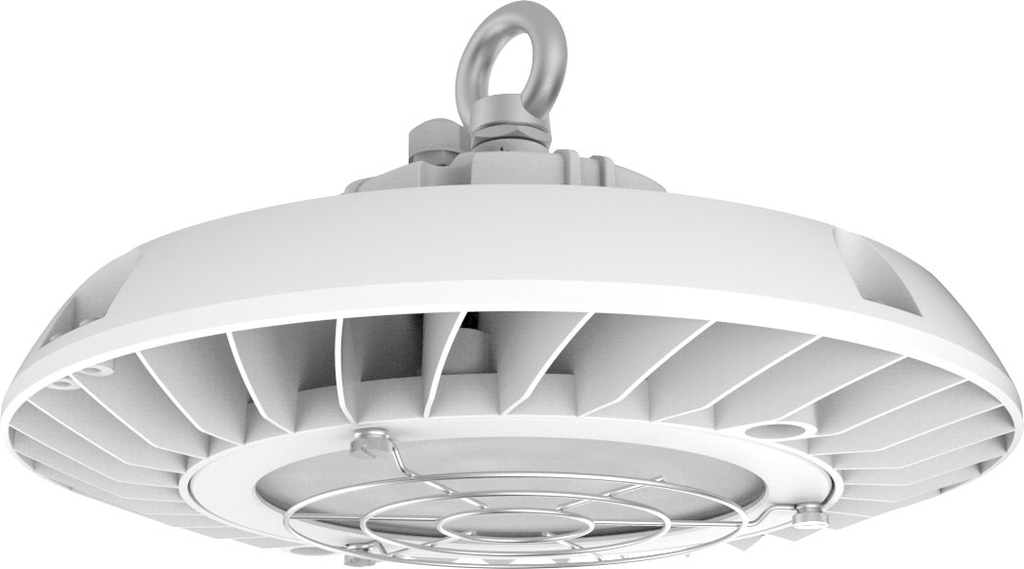

  • JEBL features a white die-cast aluminum housing along with a removable die-cast aluminum driver housing and optional clear polycarbonate or diffuse aluminum reflectors available separately
  • Emergency battery back-up not included in this version
  • Buy with confidence with a 5-year limited warranty

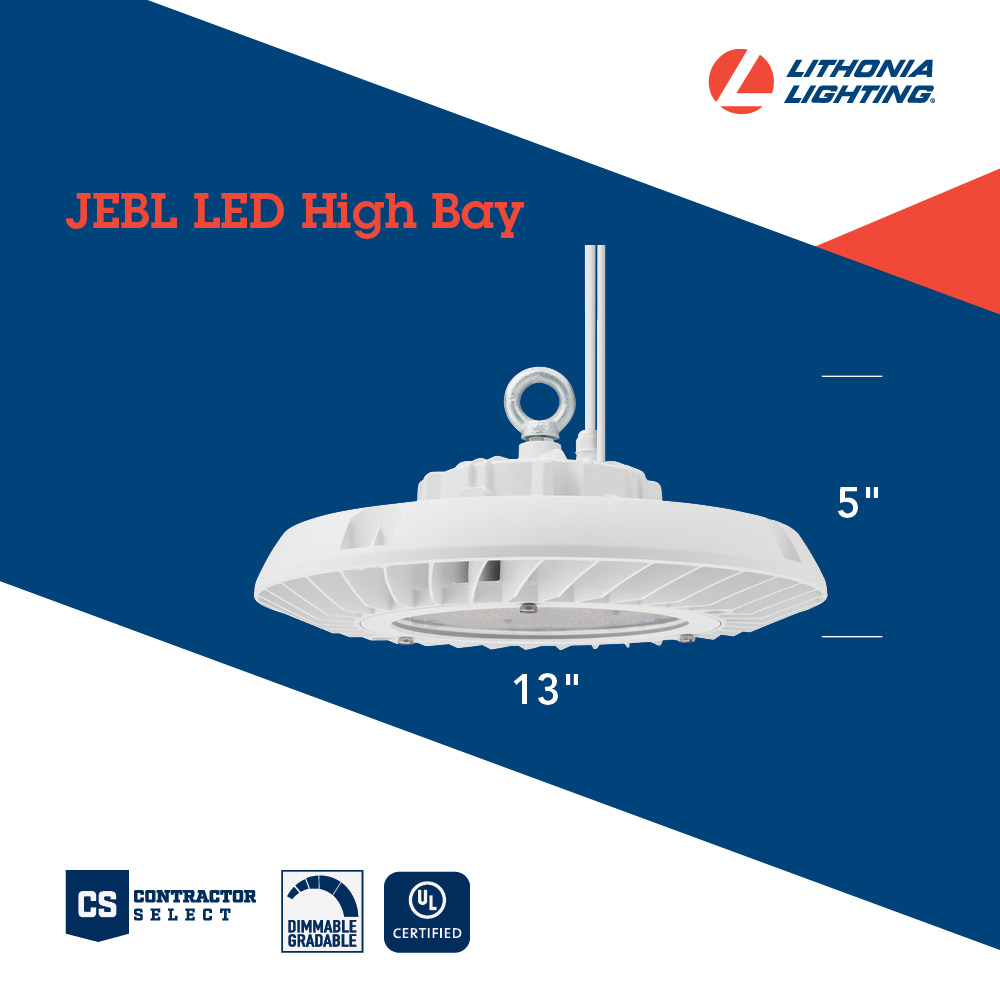

  • Dimensions diameter 13-in x depth 5-in
Standards
  • cUL
  • ULDLC Premium
  • DLC Standard
Applications
  • Manufacturing
  • Warehouses
