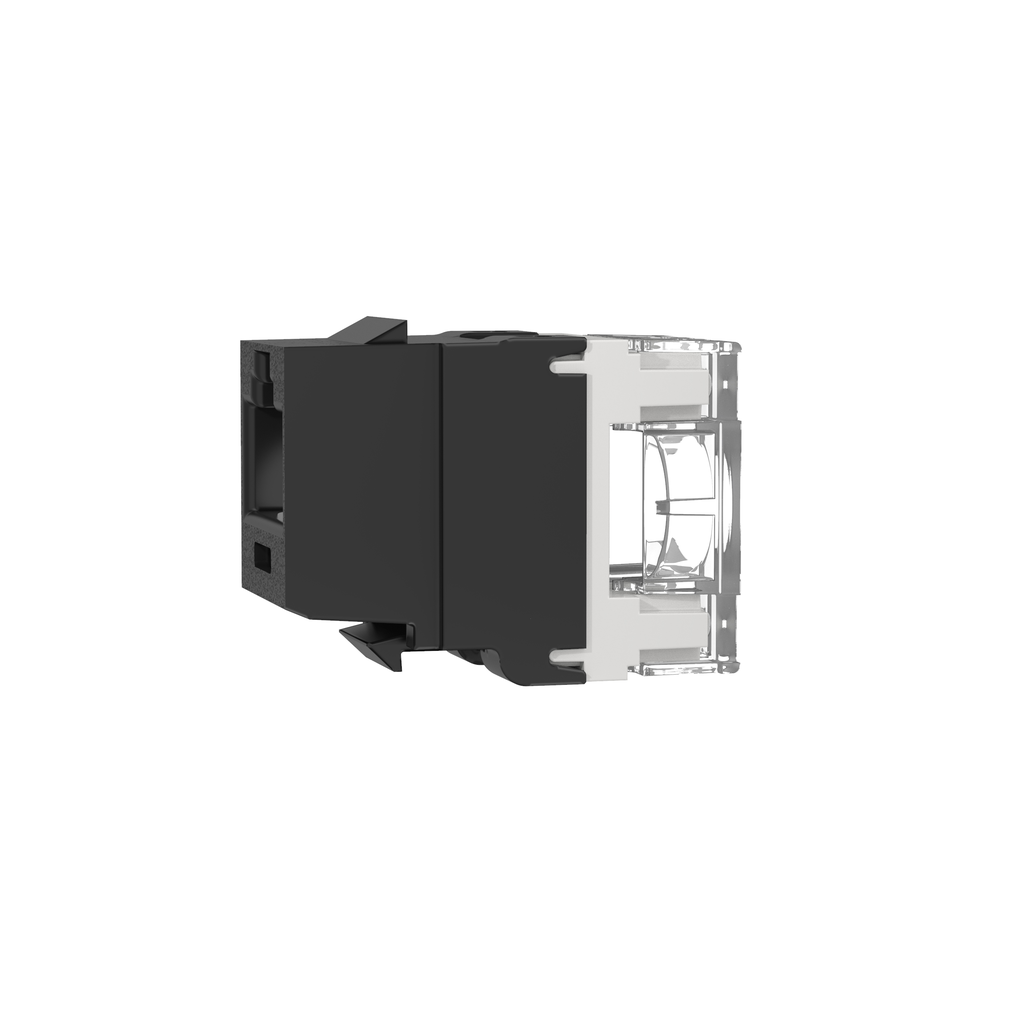

Product image for Panduit NK688MBL-Q UTP RJ45 Cat 6 Punchdown Keystone Jack Module, Black
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Panduit NK688MBL-Q UTP RJ45 Cat 6 Punchdown Keystone Jack Module, Black

Manufacturer: Panduit Corp | Catalog # NK688MBL-Q | Cooper Electric Part # 1533679
$12.49/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Installation / Instruction Manual Engineering Drawing Product Brochure
The NetKey® Cat 6 UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized, and are compatible with keystone interfaces such as NetKey® Faceplates, Modular Patch Panels, and Surface Mount Boxes. The module is black and includes 25 per package.

Technical Information

Applications
Unshielded
Cable Entry
T568A/T568B
Cable Size
24 - 22 AWG
Cable Type
Category 6
Material
Copper
Max Operating Temperature
167 degrees F
Min Operating Temperature
-10 degrees C
Performance Level
Category 6
Type
Unshielded

Packaging

Pkg Qty
25

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
NetKey

General Product Info

12-Digit UPC
074983717576
Color
Black
GTiN
00074983717576
Product UPC
07498371757

Dimensions

Depth
29.5 mm
Height
0.9 Inch
Overall Length
29.5 mm
Width
16.5 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Costa Rica,USA
Standards and Certifications
  • Standards Met: Exceeds ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E Channel and Component Requirements at Swept Frequencies up to 250 MHz. Meets with ANSI/TIA-1096-A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af/802.3at and Proposed 802.3bt Type 3 and Type 4, UL 1863 and CAN/CSA-C22.2 (UL File E129886), and RoHS Compliant
