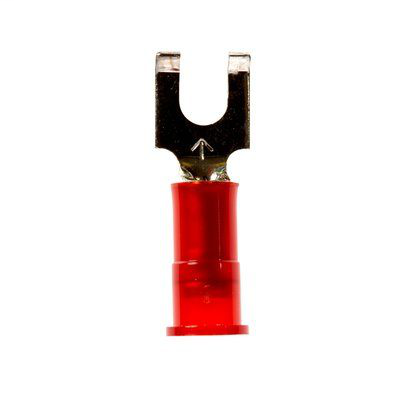

Product image for 3M MNG18-6FFB/SX Flanged Block Fork Nylon Insulated, 100/bottle
Email

3M MNG18-6FFB/SX Flanged Block Fork Nylon Insulated, 100/bottle

Manufacturer: 3M | Catalog # 7100165301 | Cooper Electric Part # 1533443
$1.81/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
3M™ Scotchlok™ Color-Coded Flanged Small Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Technical Information

Barrel Type
Butted
Conductor Size
18 AWG
Insulation Material
Insulation Grip,Nylon
Material
Nylon
Standard
UL And CSA
Stud Size
6
Terminal Size
22 - 18 AWG
Terminal Style
Flanged Block
Terminal Type
Fork
Type
Fork

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
051128589526
GTiN
00051128589526
Product UPC
05112858952

Dimensions

Length
0.84 Inch
Thickness
0.03 in
Width
0.25 in
Overview
  • 3M™ Scotchlok™ Color-Coded Flanged Small Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • Red nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 3M™ Scotchlok™ Flanged Small Block Fork Terminal is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is covered by a funnel-designed, seamless brass sleeve to guide the wire into position. The abrasion-resistant, flared, nylon-sleeve insulation ensures a positive grip and has a stepped design for mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Suitable for use in a terminal block
  • Stud size #6
  • Accommodates wire sizes 22 to 18 AWG
  • Electrolytic copper construction offers good conductivity
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case
