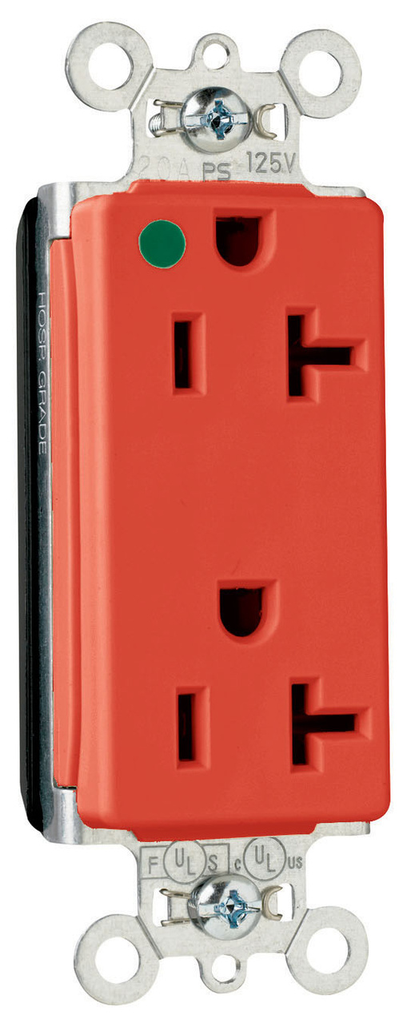

Product image for Pass & Seymour PT26362-HGRED PlugTail 20 Amp 125 Volt Red Hospital Grade Duplex Decorator Receptacle
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour PT26362-HGRED PlugTail 20 Amp 125 Volt Red Hospital Grade Duplex Decorator Receptacle

Manufacturer: Pass & Seymour / Legrand | Catalog # PT26362HGRED | Cooper Electric Part # 153233
$54.82/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure
PlugTail® Decorator Hospital Grade Receptacles, 20A, 125V PlugTail® devices and connectors mean that device installation is the same regardless of skill level of the installer. The UL-Listed connectors are keyed to ensure proper wiring installation into each receptacle.

Technical Information

Amperage
20 Amp
Applications
For Commercial Applications
Capacity
Duplex
Conductor Size
12 AWG
Contact Material
Brass
Dielectric Strength
2000 V
Grade
Hospital
Material
Nylon
Mounting Type
Wall
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.5 L x .625 W x 3.281 H In
Style
Decorator
Temperature Rating
-40 degrees C
Type
Decorator
Voltage
125 Volt
Wire Size
12 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
PlugTail®

General Product Info

12-Digit UPC
785007309720
Color
Red
Finish
Matte
GTiN
00785007309720
Product Series
PlugTail
Product UPC
78500730972
UNSPSC
39121406

Dimensions

Depth
5/8 Inch
Height
2-3/4 Inch
Width
1.5 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • .036 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Plated steel wrap strap design for maximum durability and corrosion resistance.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • Crimped and welded contacts.
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6\"\" leads, stripped, solid or stranded, for use with PlugTail Receptacles only
Certifications
  • cULus Listed
  • Federal Spec Listed
