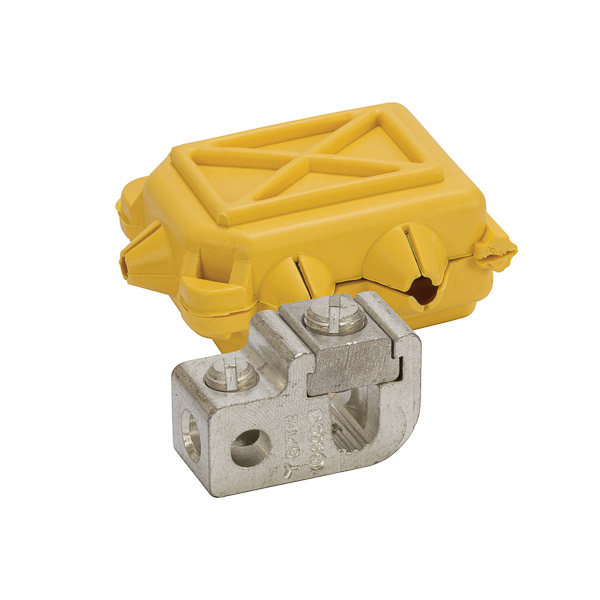

Product image for NSI GP-2WC 2-12 STR Main 4-14 Tap
Email

NSI GP-2WC 2-12 STR Main 4-14 Tap

Manufacturer: NSi | Catalog # GP-2WC | Cooper Electric Part # 1529475
$2,162.45/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet
2 AWG Parallel "T" Tap Connector With Cover Excellent for tapping off main conductor without cutting due to lay-in feature. Perpendicular tap allows for parallel or "T" tap configuration. Flexible cover allows for either parallel or "T" tap wire entry. Secure snap cover eliminates need for taping. Electro-tin plated for low contact resistance. Rated 600V. Temperature rating 90 degrees C.

Technical Information

Applications
Wire Termination
Conductor Size
12-2 AWG/14-4 AWG
Material
Aluminum
Max Temperature
90 degrees C
Number of Conductors
2
Number of Poles
1 Pole
Size
L=2.25 - W=1.37 - H=1.11 IN
Standard
UL486B
Temperature Rating
90 degrees C
Type
Aluminum Tap Connector With Cover
Voltage
600 Volt
Wire Size
12-2/14-4 AWG
Wire Type
AL/CU

Manufacturer Information

Brand
NSI Industries
Sub Brand
Mechanical Connector

General Product Info

12-Digit UPC
662381003010
Color
Yellow
Environmental Conditions
90 degrees C
Finish
Tin Plated
GTiN
00662381003010
Product UPC
66238100301

Dimensions

Height
1.11 Inch
Length
2-1/4 Inch
Warranty Length
1 yr
Width
1.37 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Features
  • Excellent for tapping of main conductor due to lay-in feature
  • Perpendicular tap allows for parallel or \"T\" tap configuration
  • Flexible cover allows for either parallel or \"T\" tap wire entry
  • Secure snap cover eliminates need for taping
  • Electro-tin plated for low contact resistance
Certifications and Standards
  • CSA
  • cULus
  • UL Listed
  • UL 486A-486B
