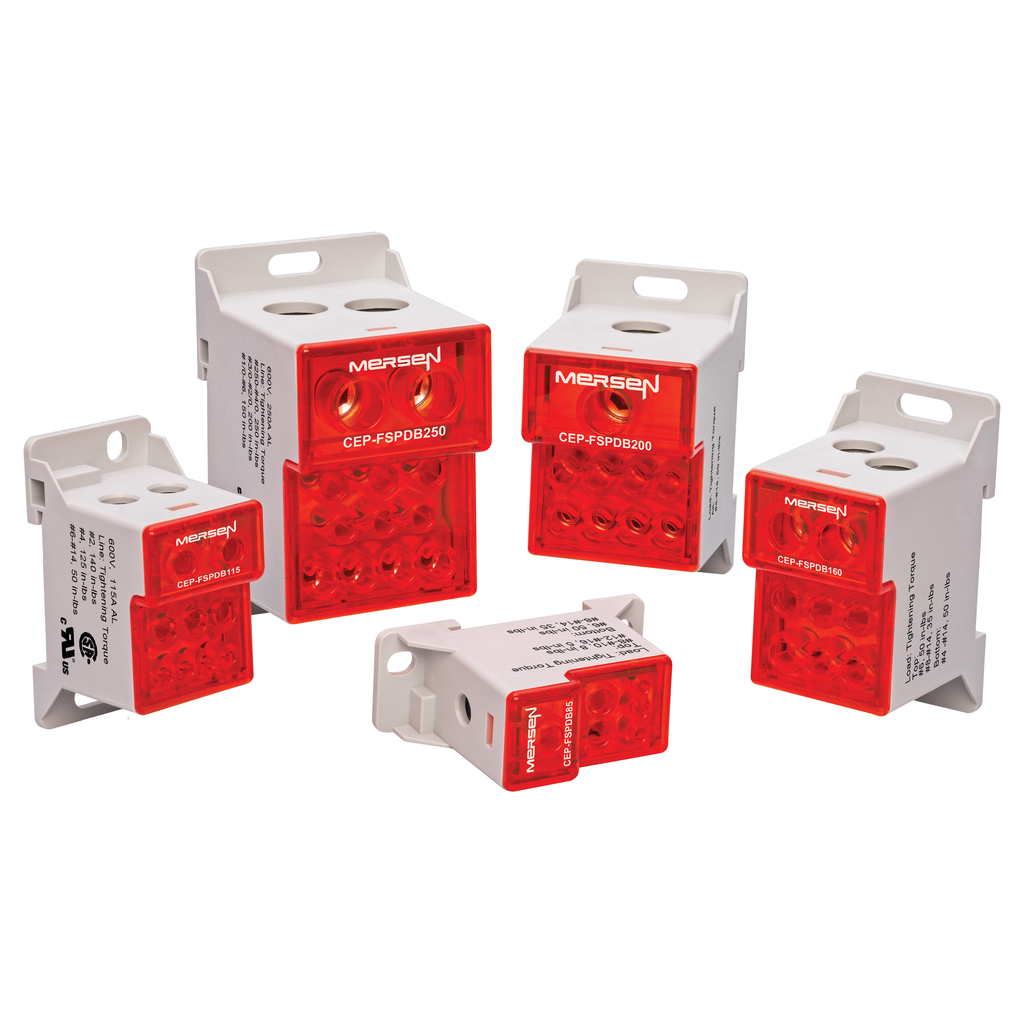

Product image for Mersen CEP-FSPDB115 FSPDB Series UL
Email

Mersen CEP-FSPDB115 FSPDB Series UL

Manufacturer: Mersen | Catalog # CEP-FSPDB115 | Cooper Electric Part # 1528201
$66.59/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
18 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
Product Spec Sheet
Mersen's finger safe IP20-rated Power Distribution Blocks are part of the new Compact EP® line of products. The compact footprint allows space savings in panels, contributing to reduced panel size when compared to traditional power distribution blocks.The Compact PDB is ideal for low voltage applications. Rated for UL-600V, ampere range of 85-250A, it can accommodate wire ranges AWG 18-3/0, catering to a wide range of low voltage applications. The PDBscan be DIN rail mounted, are dual wire rated, and are capable of DLO wire acceptance allowing ease of installation. Translucent covers allow visual inspection of wire termination points and wiring configurations.

Technical Information

Amperage
115 Amp
Connection Type
Box
Connector Material
Tin-plated Aluminum
Max Operating Temperature
40 degrees C
Min Operating Temperature
-10 degrees C
Mounting Type
DIN Rail,Screw Mount
Number of Poles
1 Pole
Rated Voltage AC
600 V
Short Circuit Current Ratng
10000 A
Voltage
600 Volt

Packaging

Pkg Qty
3

Manufacturer Information

Brand
Mersen

General Product Info

12-Digit UPC
782001499037
GTiN
70782001499036
Product UPC
78200149903
Weight
0.17 lb

Dimensions

Height
1.79 Inch
Length
2.71 Inch
Width
1.31 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • Recessed termination screws and wire openings provide IP20 grade protection and qualify as fingersafe per IEC 529
  • Translucent cover allows for visual inspection of wire termination
  • Can also accept DLO wires.
Certifications
  • UL recognized, UL File # E73571
  • CSA certified: Class 6228
