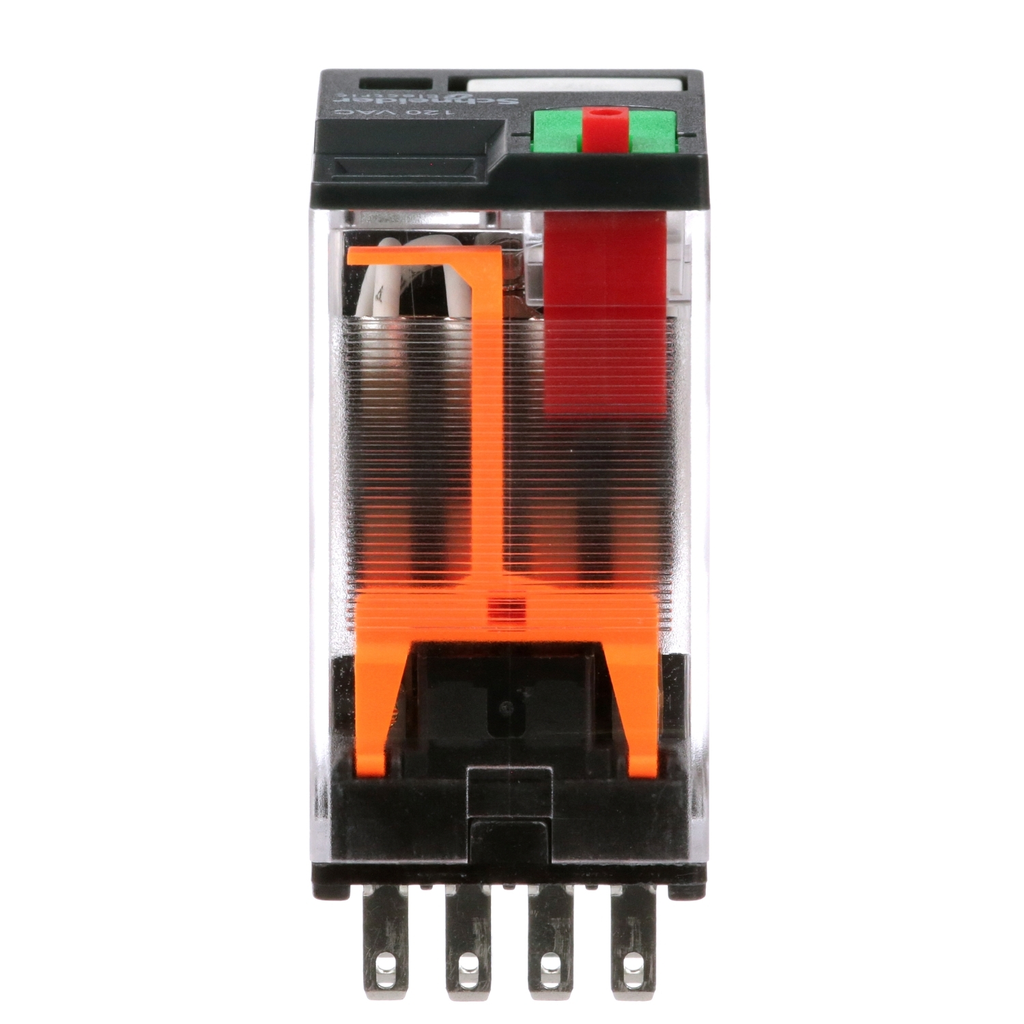

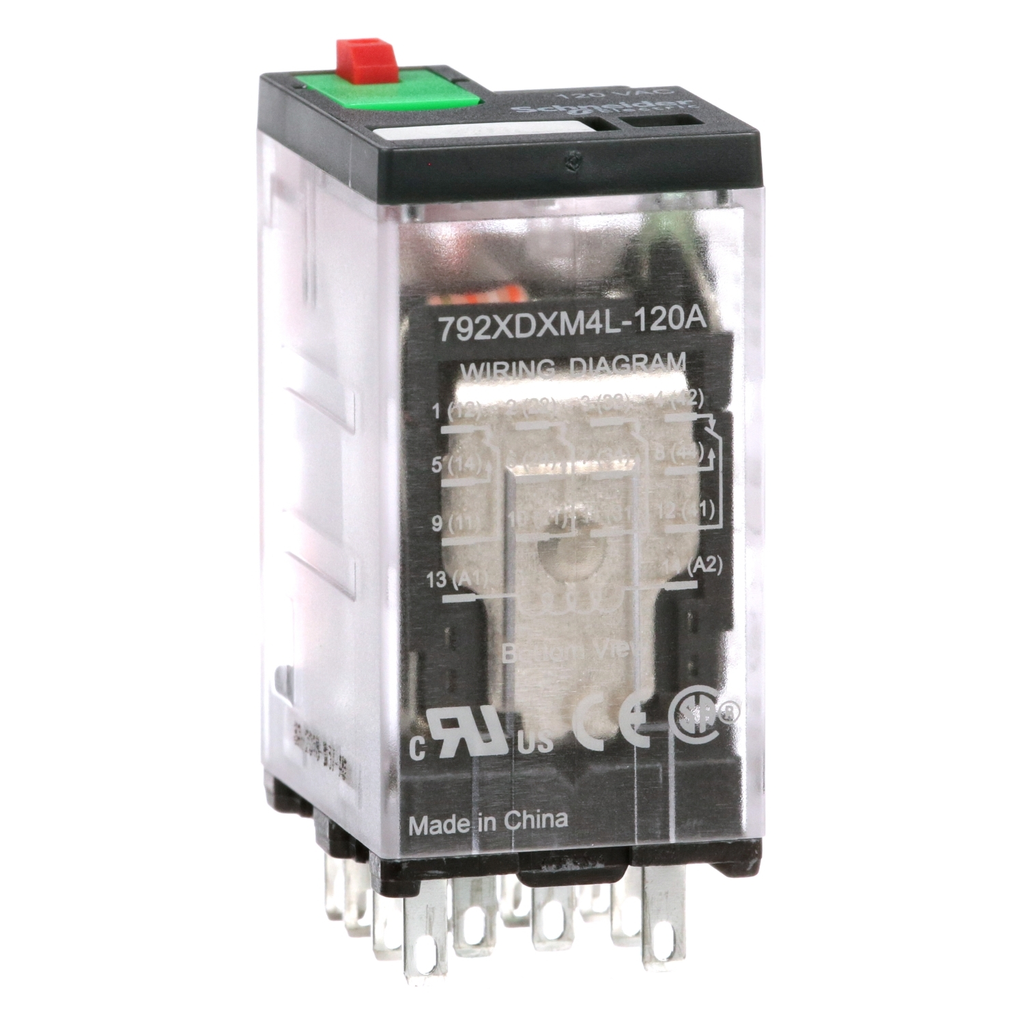

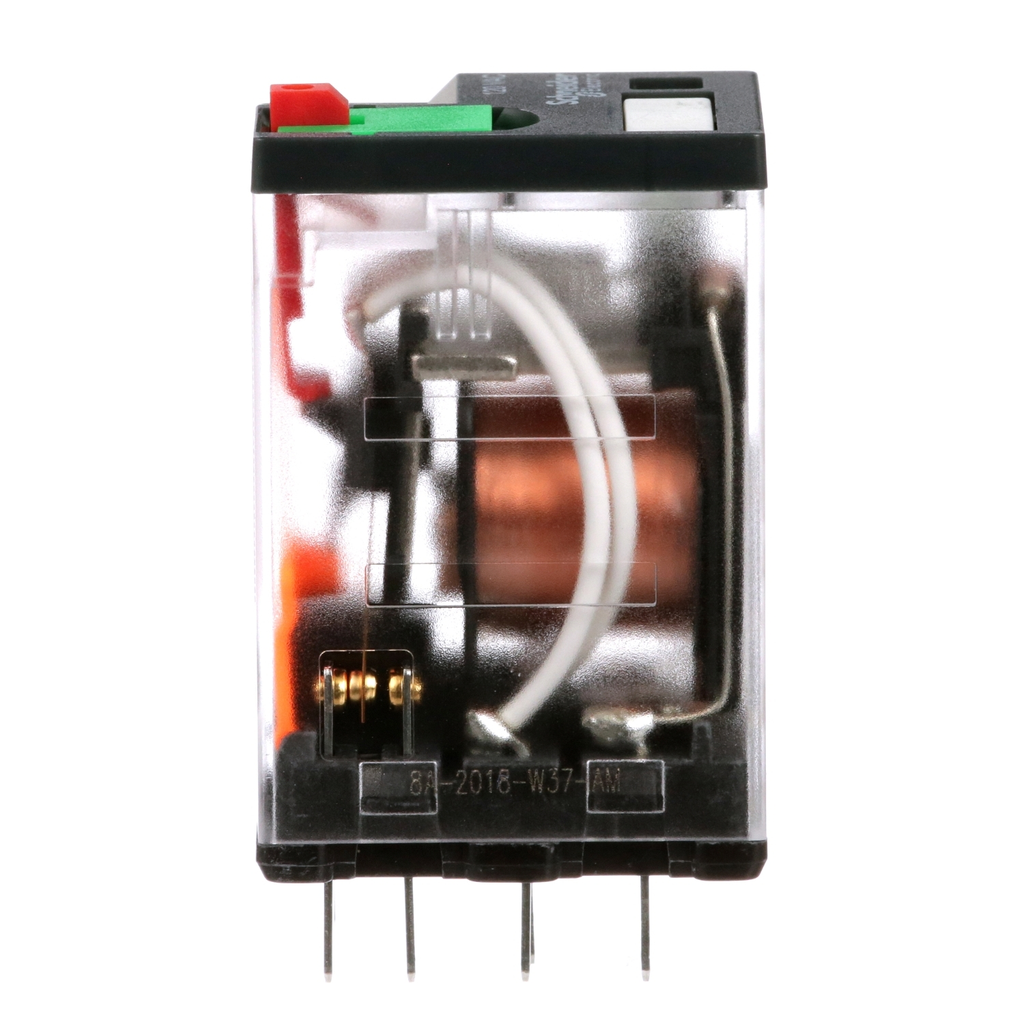

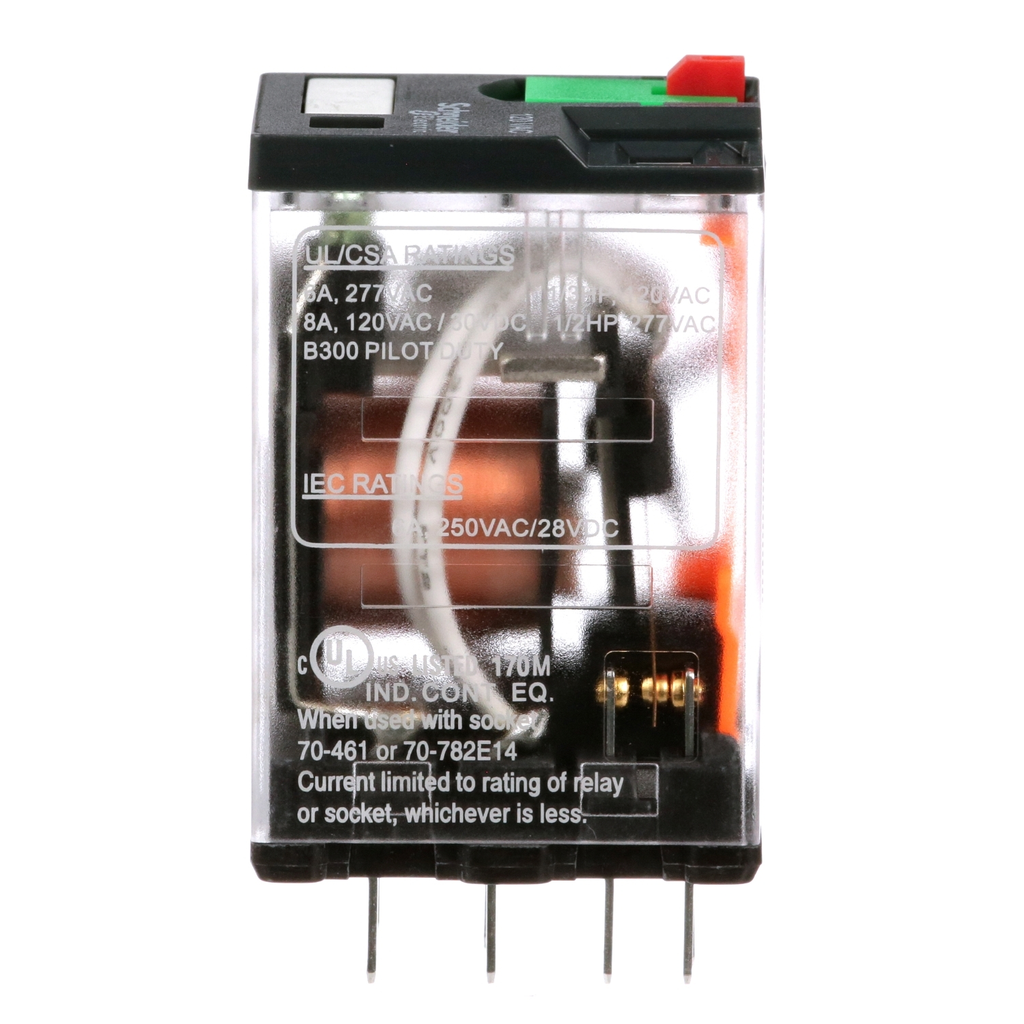

Product image for Square-D 792XDXM4L120A Power Relay, Legacy, 4PDT, 6A, 120 VAC, Cover w/ Locking Push Button & LED
Image thumbnail 0
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Square-D 792XDXM4L120A Power Relay, Legacy, 4PDT, 6A, 120 VAC, Cover w/ Locking Push Button & LED

Manufacturer: Square-D / Schneider | Catalog # 792XDXM4L120A | Cooper Electric Part # 1527444
$45.59/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
The SE Relays 792R series , plug-in general purpose control relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover with LED indication and locking push button option. Contacts rated as 6A resistive at 277VAC, motor 1/3hp at 120VAC, 1/2hp at 277VAC with nominal coil voltage 120VAC , makes relay to be an ideal choice for automation panels and controls. Gold flashed contact 4PDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option, blade terminal style simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Mechanical standard flag indicator displays the relay status during testing or operation.

Technical Information

Contact Material
Silver With Gold Flashed Contacts
Dielectric Strength
1300 V
Input Voltage
120 V
Net Weight
37 g
Operating Temperature
-40-55 degrees C
Storage Temperature
-40-85 degrees C

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
606480781509
GTiN
03606480781506
Product UPC
60648078150
Weight
37 g

Dimensions

Depth
27.2 mm
Height
40 mm
Width
21 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA,UL
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • 70-461-1
  • 70-782D14-1
  • 70-782EL14-1
  • 70-378-1
  • 70-379-1
  • 16-782PC-1
  • 16-700DIN
  • 16-DCLIP-1
  • 16-782C1
  • 70-BSMM-120
