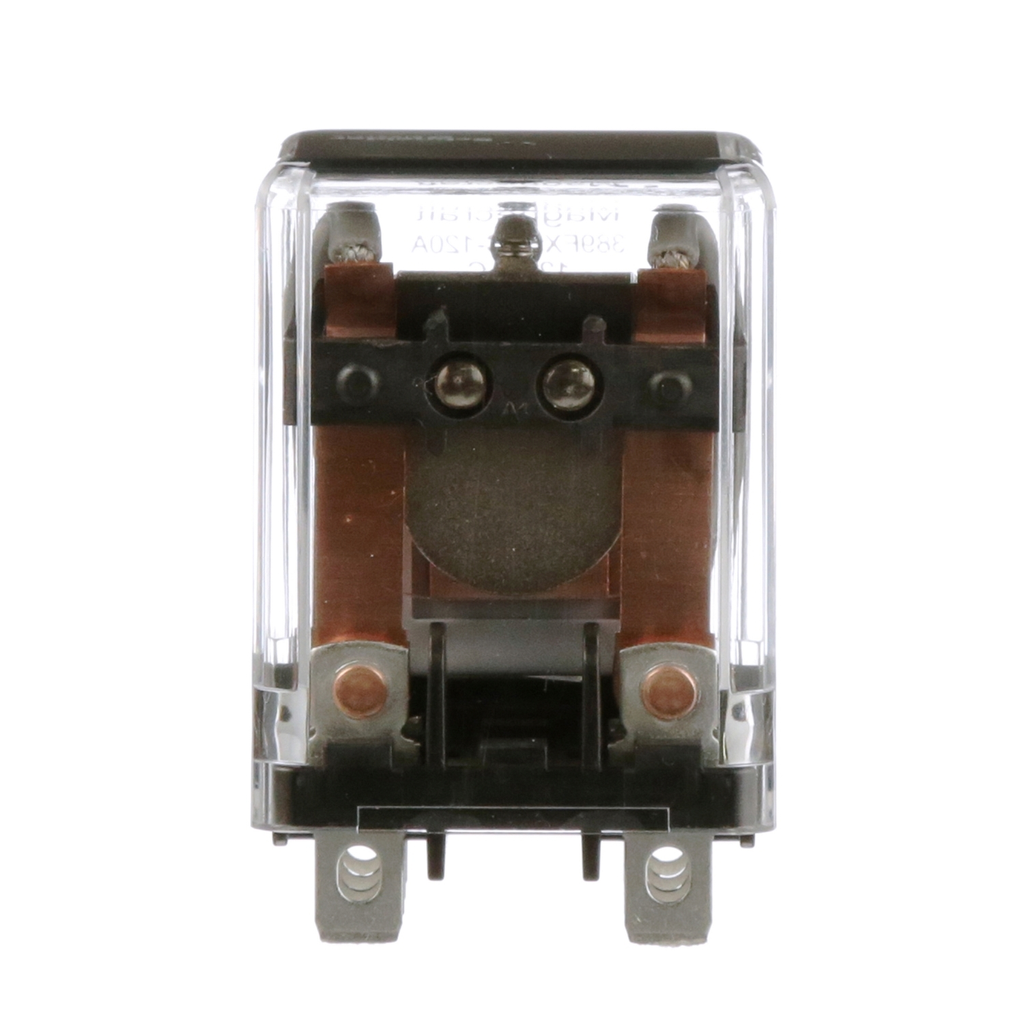

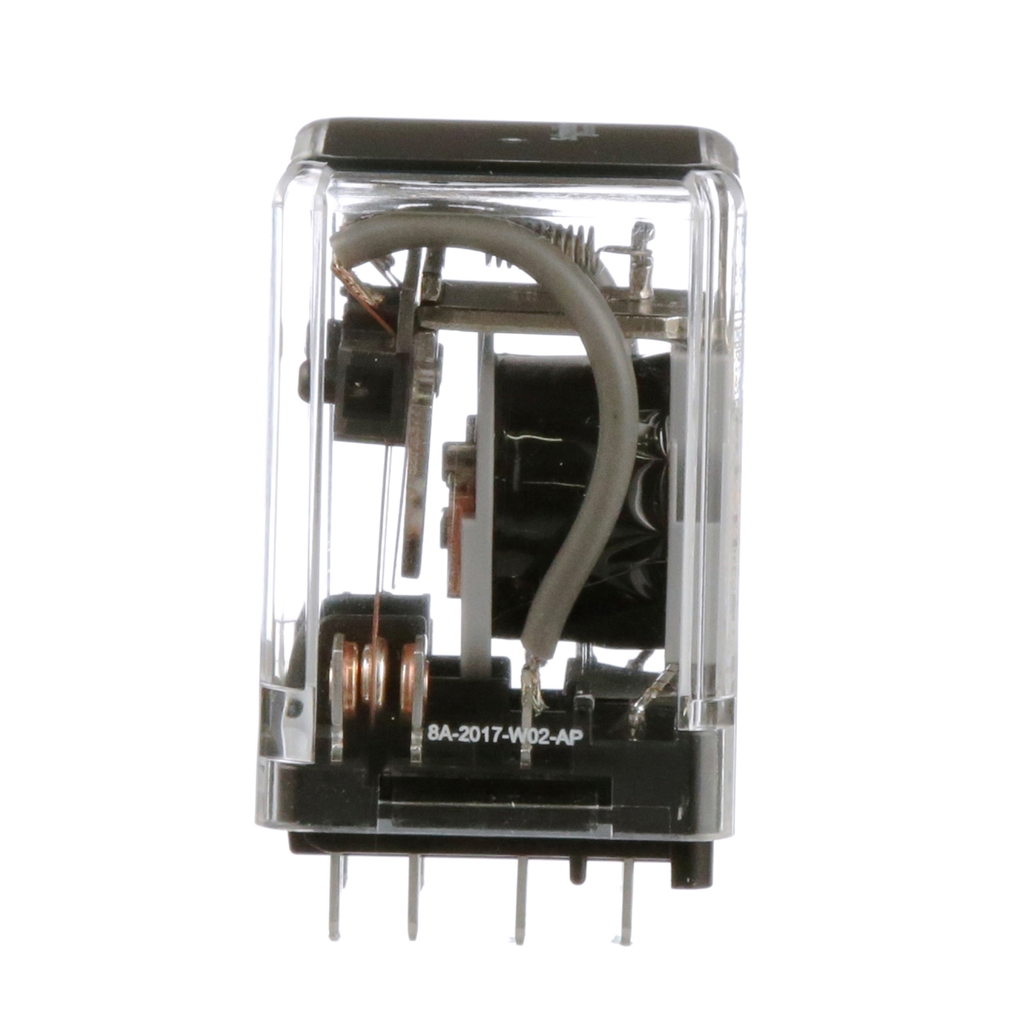

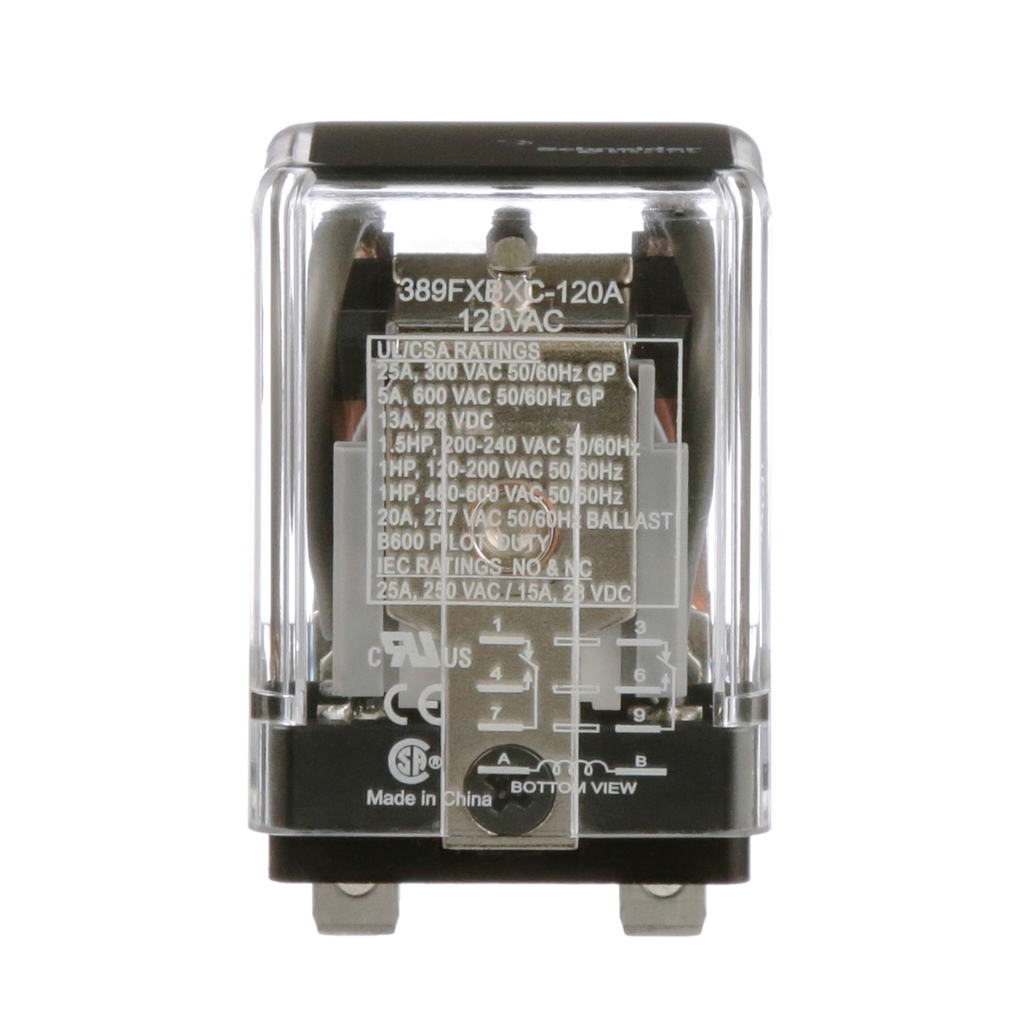

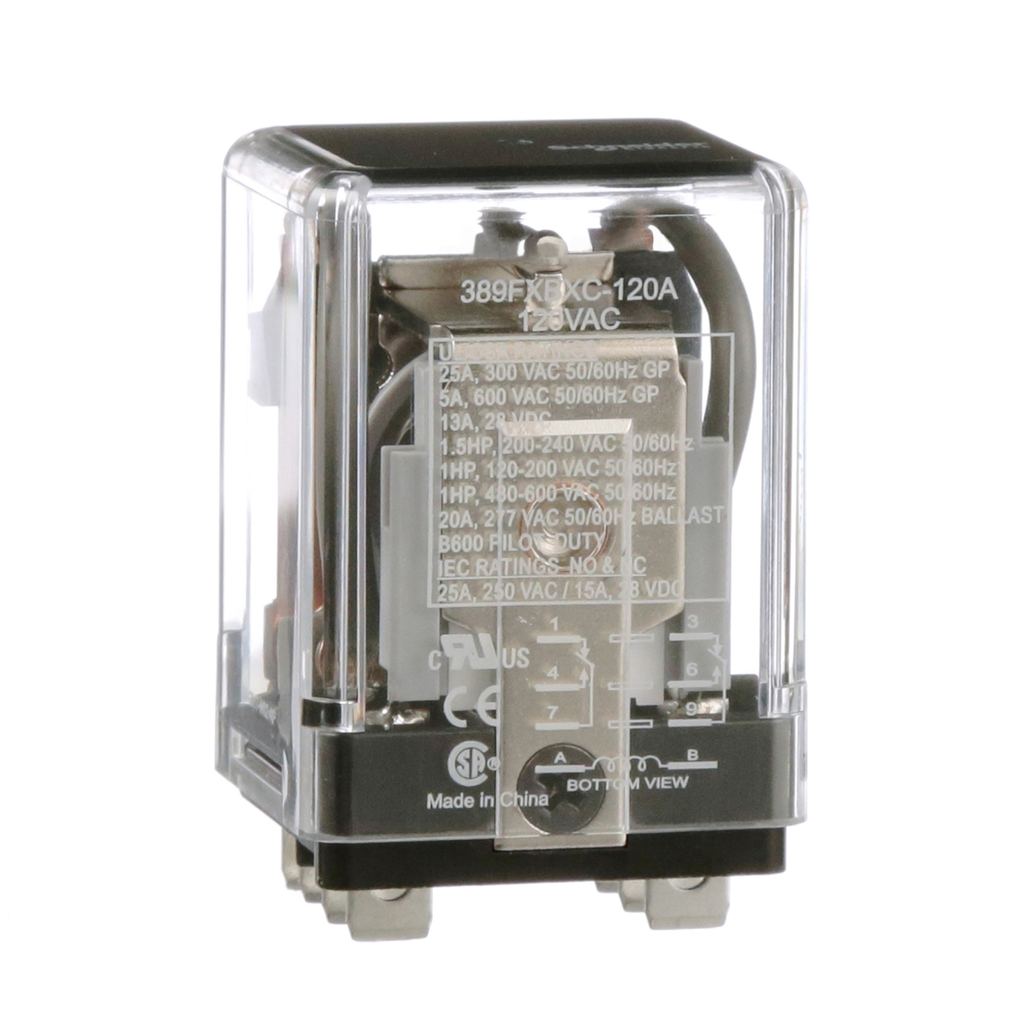

SQD 389FXBXC-120A Power relay, SE R

Manufacturer: Square-D / Schneider | Catalog # 389FXBXC-120A | Cooper Electric Part # 1527435
$106.21/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
The 389F series power relay, 389FXBXC-120A , offers high contact rating of 20 A at 300 VAC with ability to hold motor loads up to 1.5 hp at 200 to 240 VAC with nominal coil voltage 120 VAC . Maximum switching voltage 600 V makes relay suitable for high-power switching applications. Supported ballast load contact rating perfectly suits for lighting controls. Silver alloy DPDT contact configuration makes an ideal solution for variety of application requirements. Plug-in (socket) mounting option with wide range of accessories helps increase design and installation flexibility. Environmentally friendly design is compliant with the European Restriction of Hazardous Substances directive (RoHS).

Technical Information

Contact Material
Silver Alloy
Dielectric Strength
1600 V
Input Voltage
120 V
Net Weight
84 g
Operating Temperature
-22131 degrees F (-3055 degrees C)
Short Circuit Current Ratng
3 kA
Storage Temperature
-30-85 degrees C

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
606480276821
GTiN
03606480276828
Product UPC
60648027682
Weight
84 g

Dimensions

Length
8 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA,CURus
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • 70-788EL11-1
  • 70-ASMR-110-240
  • 16-788C1
  • 16-700DIN
  • 16-DCLIP-1
