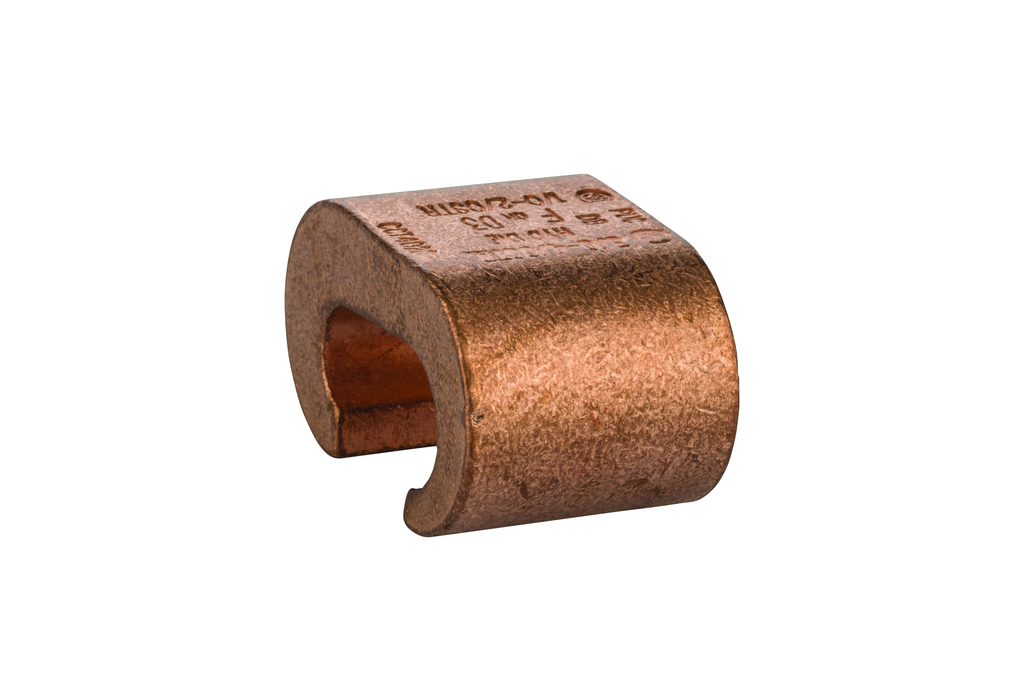

Product image for NSI CTH-4020 Copper C Tap 3/0-4/0 M
Image thumbnail 0

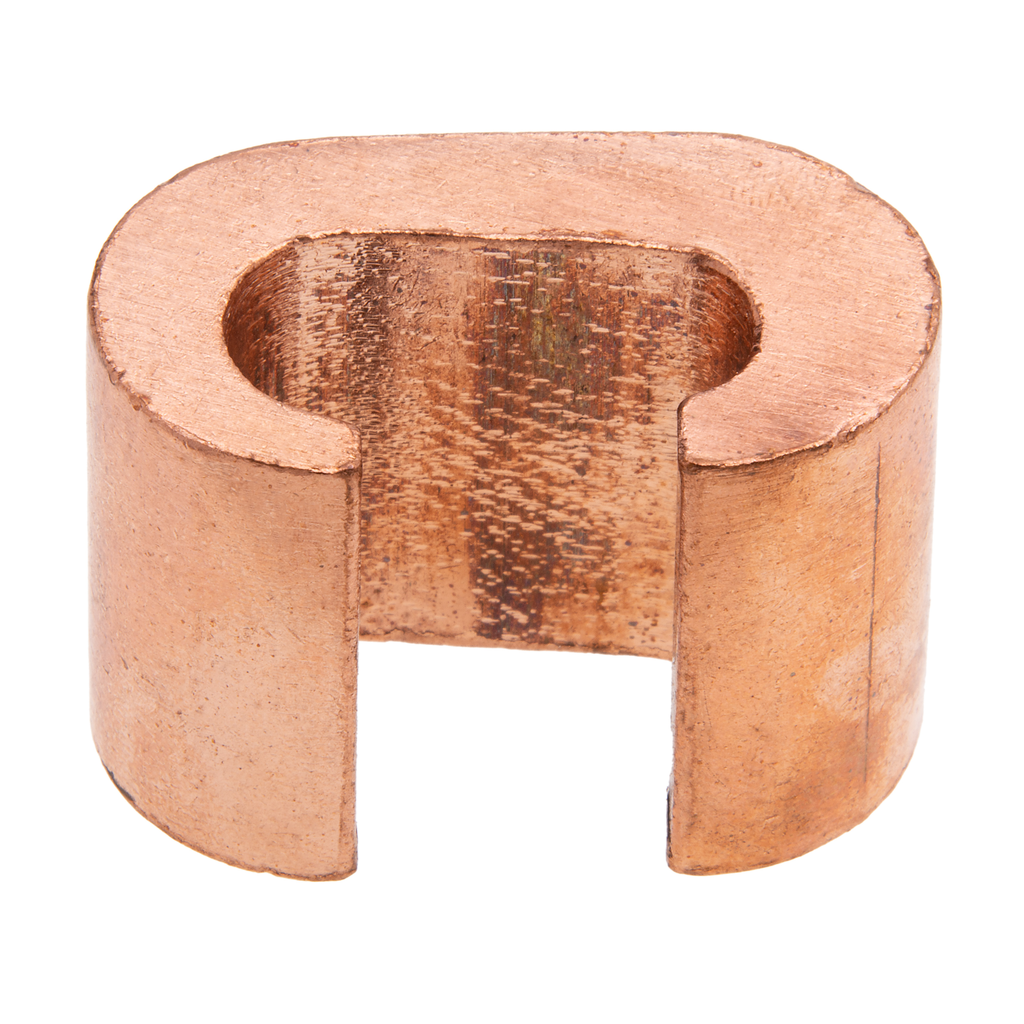

Image thumbnail 1

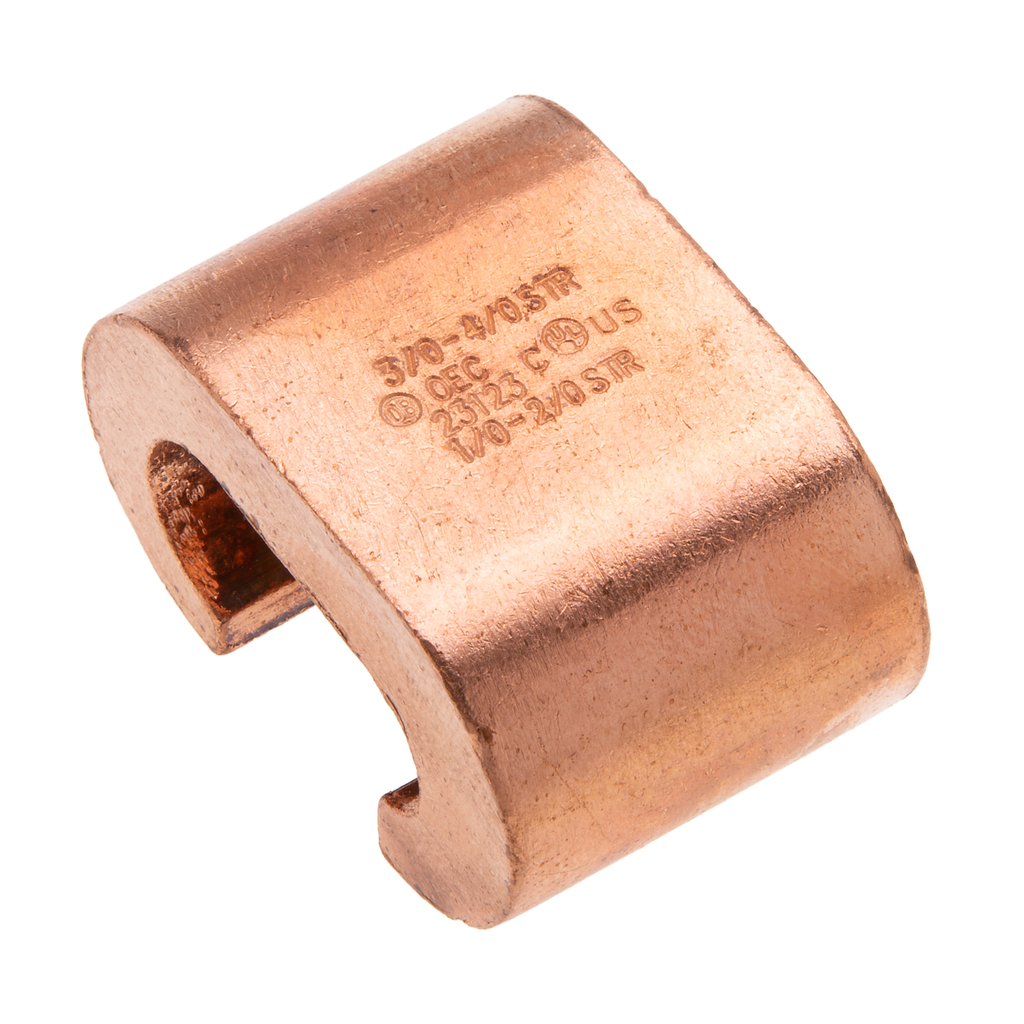

Image thumbnail 2

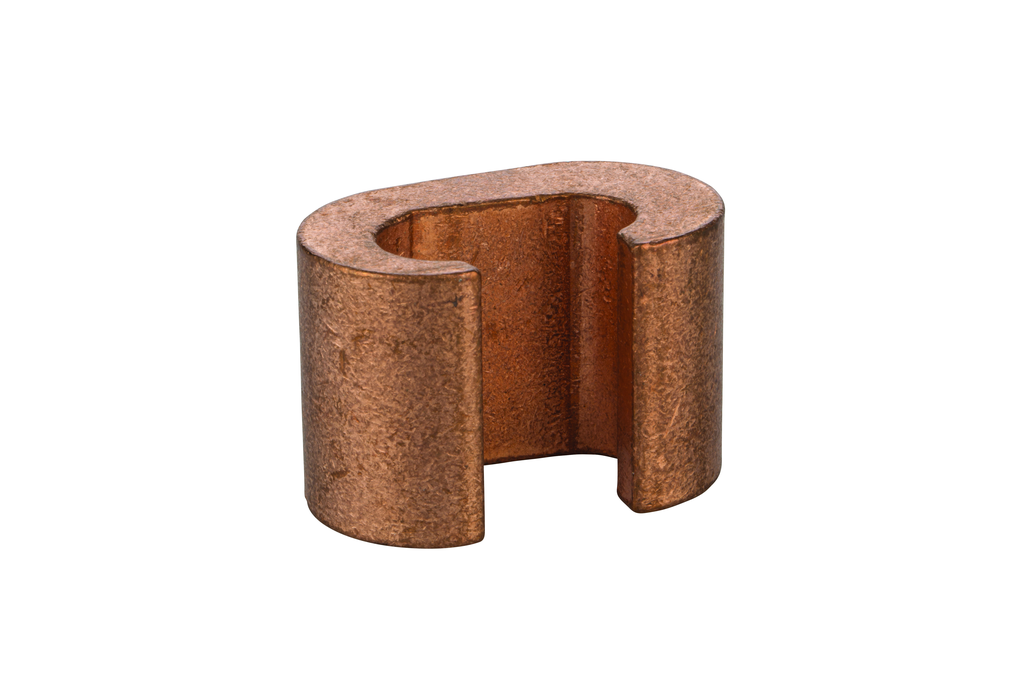

Image thumbnail 3

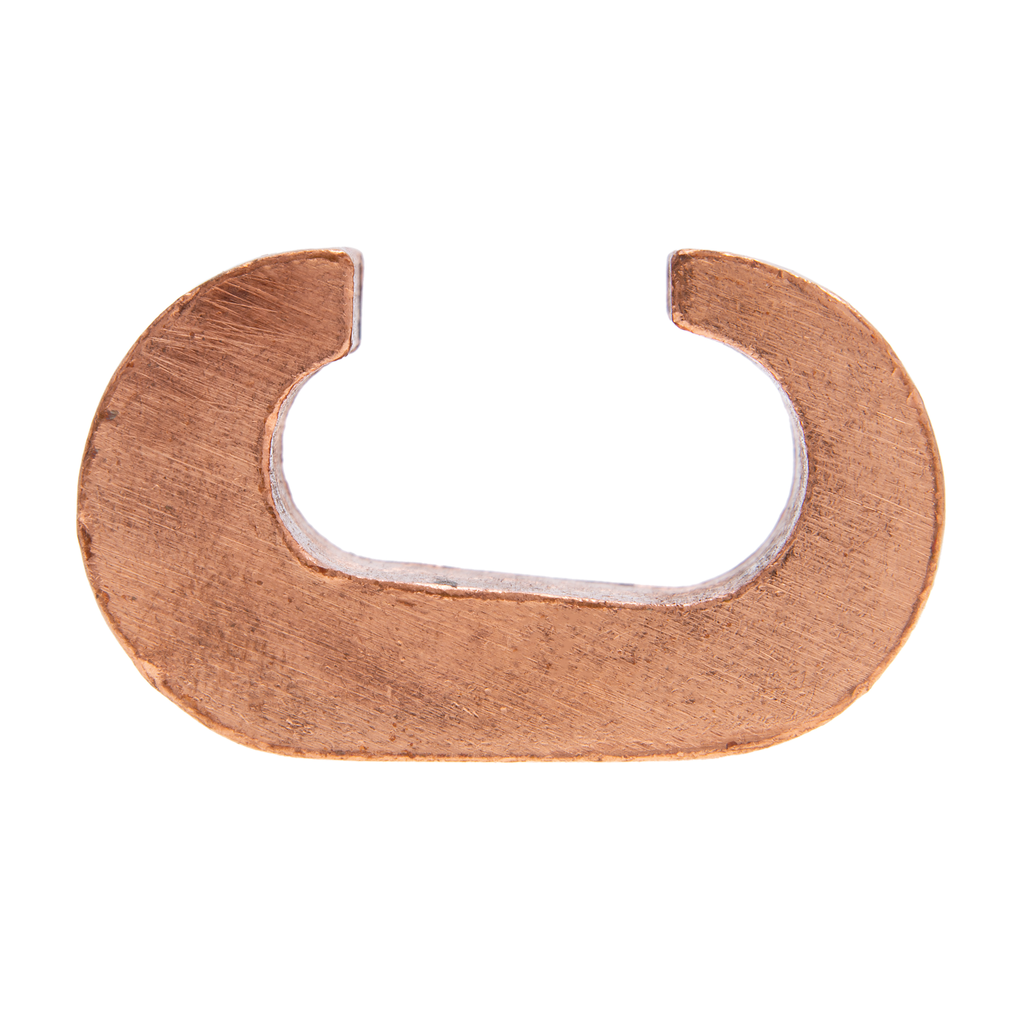

Image thumbnail 4
Email

NSI CTH-4020 Copper C Tap 3/0-4/0 M

Manufacturer: NSi | Catalog # CTH-4020 | Cooper Electric Part # 1526733
$3,008.63/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Heavy Duty Copper C Tap Grounding Connector for 3/0 to 4/0 AWG APPLICATIONS: Copper "C" Taps are range-taking compression connectors made from high conductivity copper alloy. Ideal for making tap or parallel copper connections from 8 SOL to 4/0 STR conductors. Provides consistent reliability with heavy wall construction that prevents relaxation of the joint after installation. Installation time is reduced because of its "C" shape. UL CU486A, 467 suitable for direct burial and CSA rated Electrical and Grounding.

Technical Information

Applications
Terminate-Splice-Tap
Conductor Size
3/0-4/0 AWG
Material
Copper
Max Temperature
194 degrees F
Size
L=.687 - W=1.00 - H=.625 IN
Tap Size
1/0-2/0 STR
Temperature Rating
90 degrees C
Type
Copper C Taps
Voltage
600 Volt

Manufacturer Information

Brand
NSI Industries
Sub Brand
Utilities

General Product Info

12-Digit UPC
662381022196
Color
Copper
Environmental Conditions
90 degrees C
Finish
Copper
GTiN
00662381022196
Product UPC
66238102219

Dimensions

Warranty Length
1 yr

Certifications and Compliance

Country of Origin
India
Additional Notes
  • FOR TOOL/DIE CRIMPING INFORMATION, PLEASE SEE TABLE ON PAGE 89
Features
  • Range-taking compression connectors made from high conductivity copper alloy
  • Ideal for making tap or parallel copper connections from 8 SOL to 4/0 STR conductors
  • Provides consistent reliability with heavy wall construction that prevents relaxation of the joint after installation
  • Installation time is reduced because of its \"C\" shape
Certifications and Standards
  • cULus
  • UL Listed
  • UL 486A, UL 467
