Panduit PUP6004WH-W Copper Cable, Cat 6, 23 AWG, UTP, CMP, White

Manufacturer: Panduit Corp | Catalog # PUP6004WH-W | Cooper Electric Part # 1526181
$1,475.76/m (1000 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Installation / Instruction Manual

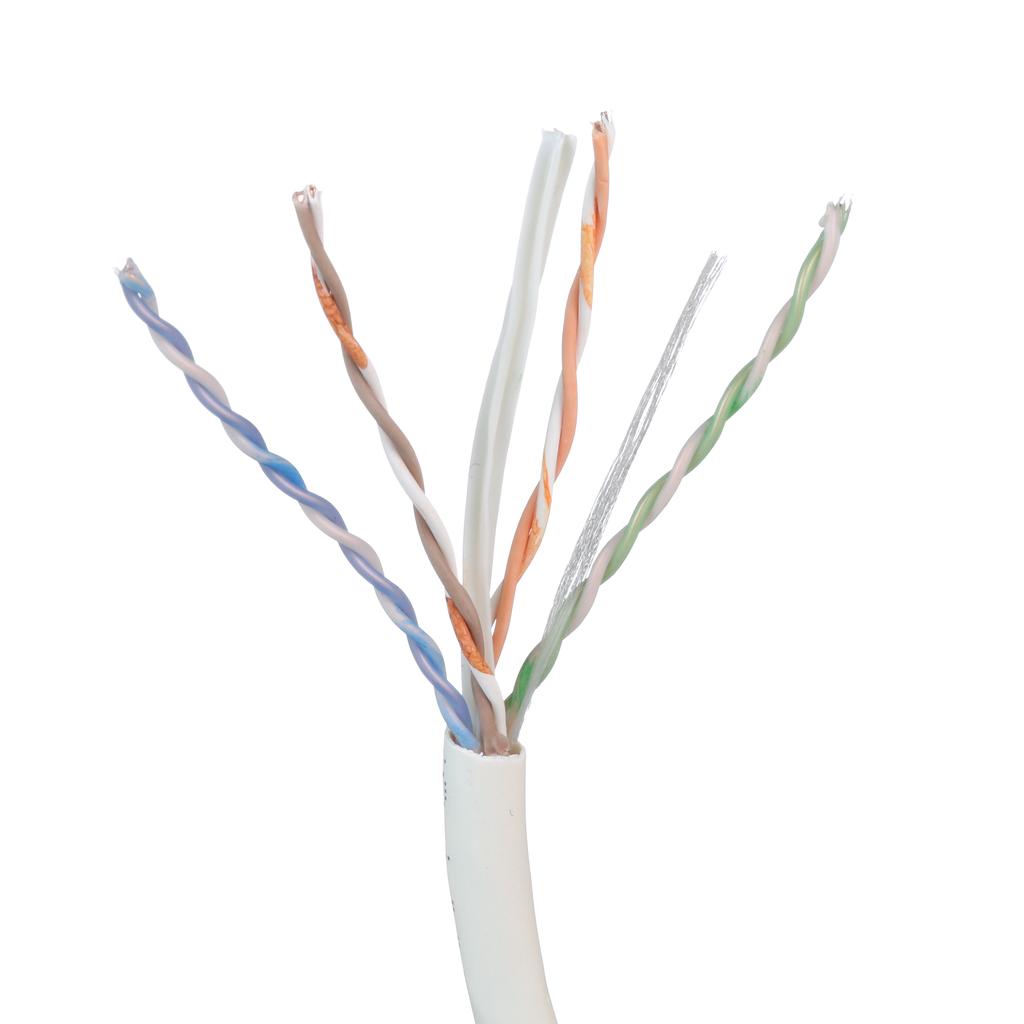

The TX6000™ Enhanced Cat 6 U/UTP copper cable is constructed of 23 AWG copper conductors with FEP/HDPE insulation. The conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a PVC flame-retardant jacket. The white, plenum (CMP) cable is supplied 1,000 feet (305 meters) to an easy pay-out carton.

Technical Information

Applications
For Indoor Use
Cable Type
U / UTP
Conductor Material
Copper
Conductor Size
23 AWG
Conductor Type
Solid
Insulation Material
Fluorinated Ethylene Propylene
Max Operating Temperature
167 degrees F
Min Operating Temperature
-20 degrees C
Number of Conductors
4
Number of Pairs
4
Performance Level
Category 6/Class E
Resistance
Flame Retardant
Temperature Rating
-20 to 60 degrees C
Type
UTP, Enhanced
Voltage
8.63 Volt

Packaging

Pkg Qty
1000

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
PanNet

General Product Info

12-Digit UPC
074983669110
Cable Color
White
Color
White
Construction
U/UTP
Environment
Indoor
GTiN
00074983669110
Jacket Color
White
Jacket Material
PVC
Product Type
Copper Cable
Product UPC
07498366911
Weight
30 lb/1000 ft

Dimensions

Length
1000 Foot
Outer Diameter
0.23 in
Outside Diameter
5.7 mm
Overall Length
1000 ft

Certifications and Compliance

ARRA Compliant
Yes
Buy American Compliant
Y
CE Compliant
No
Country of Origin
USA
Hazmat Flag
No
Standards and Certifications
  • Standards Met: Exceeds ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E with Channel Headroom Guarantee, NFPA 262 and CSA FT-6, meets IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt for PoE applications, RoHS Compliant.
