NSI IPL4-4C POLARIS Vision Tap 4 4

Manufacturer: NSi | Catalog # IPL4-4C | Cooper Electric Part # 1525807
$55.16/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet

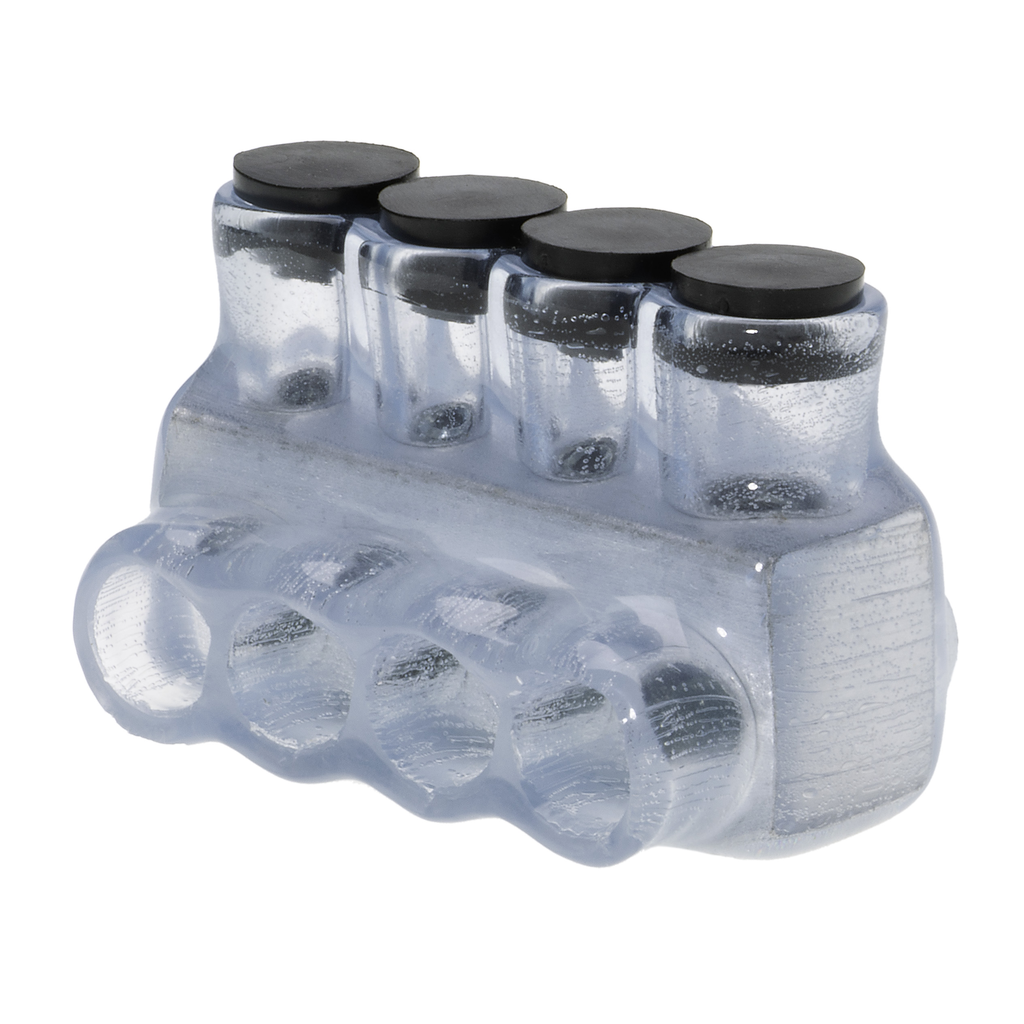

The Polaris IPL4-4C Multi-Tap Single Side Entry Vision Tap Connector features 4 ports sized for 4 - 14 AWG wires. The clear body allows users to see their conductor placement and is wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

Technical Information

Applications
Wire Termination
Conductor Size
14-4 AWG
Enclosure
Clear Plastisol
Material
Aluminum
Number of Conductors
4
Number of Poles
1 Pole
Size
L=1.970 - W=1.188 - H=1.375 IN
Temperature Rating
90 degrees C
Type
Single Sided Entry
Voltage
600 Volt
Wire Size
14-4 AWG
Wire Type
B,C

Manufacturer Information

Brand
NSI Industries
Sub Brand
Polaris Vision Tap

General Product Info

12-Digit UPC
662381996534
Color
Clear
Finish
Plastisol Insulated
GTiN
00662381996534
Product UPC
66238199653
Weight
1.2 lb

Dimensions

Height
1.36 in
Length
2.06 in
Warranty Length
1 yr
Width
1.24 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Certifications and Standards
  • cULus
  • Meets NEC 230.46 Suitable for Line Side of Service
  • UL 486A/B
Additional Notes
  • Dual Rated for use with copper and or aluminum cables. Not for use with fine-stranded, flexible cables
