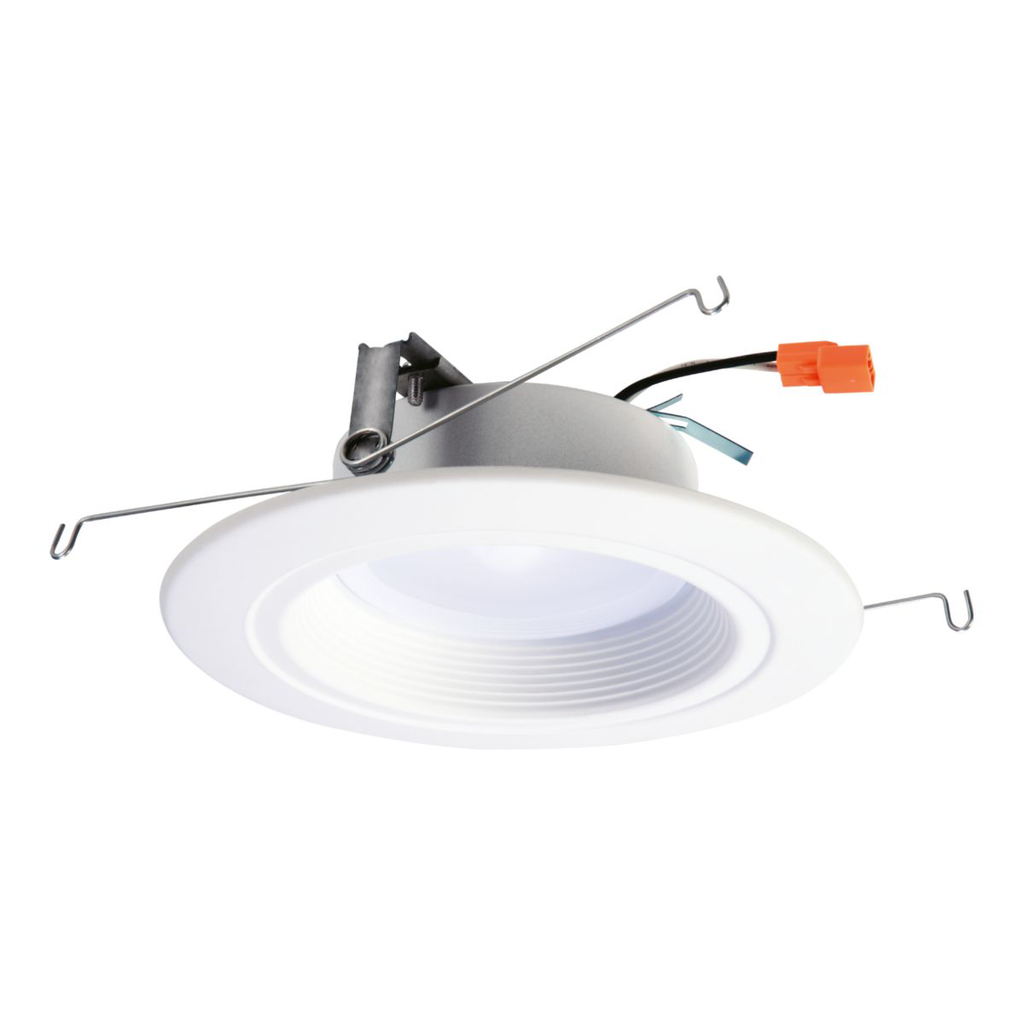

Product image for Halo RL560WH6930R 5"/6" Retrofit Baffle - Trim LED Module, 90CRI, 3000K, Matte White
Email

Halo RL560WH6930R 5"/6" Retrofit Baffle - Trim LED Module, 90CRI, 3000K, Matte White

Manufacturer: Cooper Lighting | Catalog # RL560WH6930R | Cooper Electric Part # 1525397
$48.13/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Installation / Instruction Manual Product Brochure
The Halo RL56 Series is a complete LED Baffle-Trim Module for 5. and 6. aperture recessed downlights. RL56 is designed for use in new construction, remodel and retrofit installation in Halo, All-Pro, and other compatible 5. and 6. housings. The integral LED driver offers 120 volt dimming capability. The RL56 lens provides uniform illumination and wet location listing. Precision designed to make any housing AIR-TITE™ for added HVAC savings and code compliance. Compliant with NFPA® 70, NEC® Section 410.16 (A) (3) and 410.16 (C)(5).

Technical Information

Amperage
68m Amp
Applications
Lighting
Color Temperature
3000 K
Correlated Color Temp
3,000 K
Lamp Type
LED
Lumens
1,200 Lumen
Mounting Type
Recessed
Type
RL56 LED
Voltage
120 Volt
Wattage
8 Watt

Manufacturer Information

Brand
Halo
Sub Brand
RL56 Series

General Product Info

12-Digit UPC
080083690565
Finish
White
GTiN
00080083690565
Product UPC
08008369056
Weight
0.93 lb

Dimensions

Diameter
5/6 Inch
Height
8 Inch
Length
2.8 Inch
Width
7.4 in

Certifications and Compliance

ARRA Compliant
No
Country of Origin
China
Features
  • ENERGY STAR certified
  • 90 CRI: 2700K, 3000K, 3500K, 4000K, or 5000K CCT
  • Retrofits existing 5 or 6 inch housings w screwbase adapter included
  • Use with 5 and 6 inch LED housings - new construction and remodel
  • Dimmable
  • Damp location and Wet location shower listed
  • LED connector is CA Title-24 high efficacy compliant and cULus Listed
