SQUARED ATV320U22N4WS variable spee

Manufacturer: Square-D / Schneider | Catalog # ATV320U22N4WS | Cooper Electric Part # 1525307
$1,341.88/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times

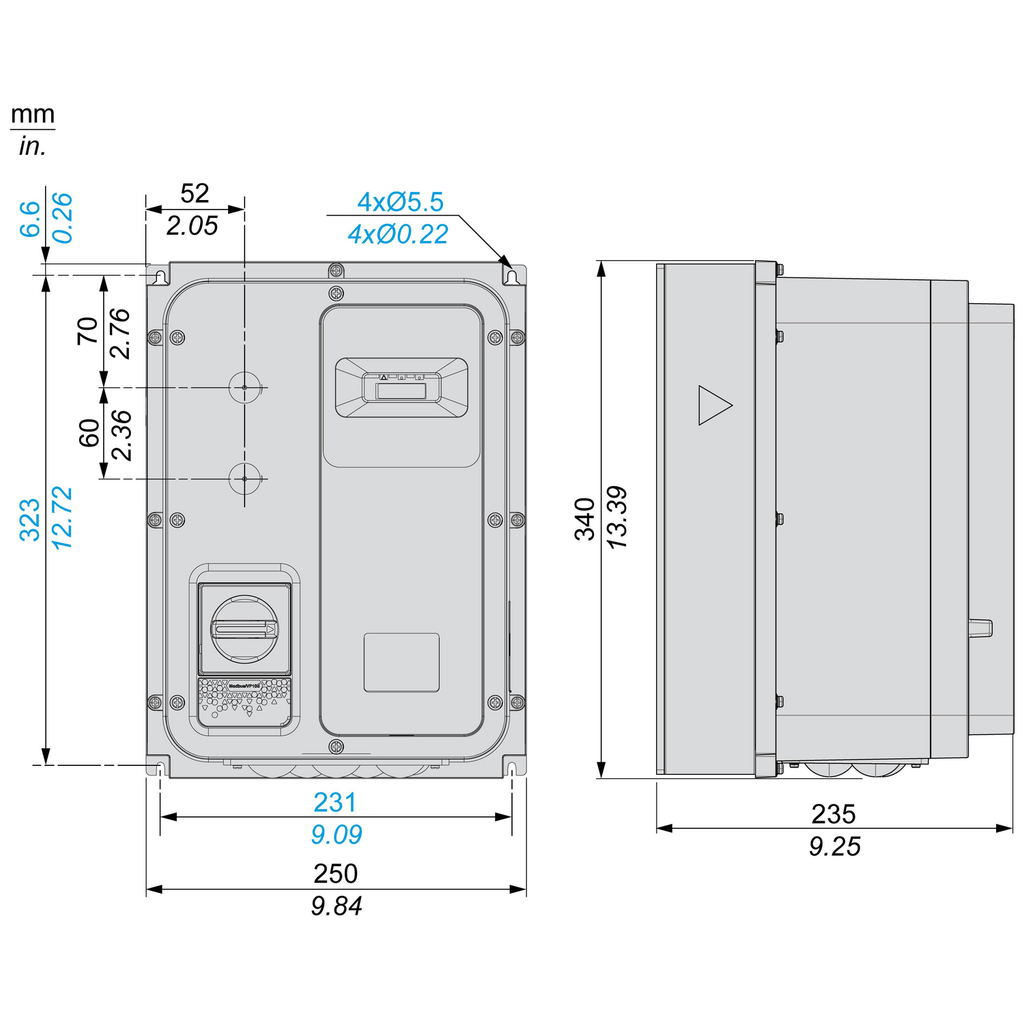

CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Altivar Machine ATV320 range is an offer of variable speed drives designed for Original Equipment Manufacturers (OEMs). This ATV320 drive can feed 3-phase synchronous and asynchronous motors. It works at a rated power up to 2.2kW, and a rated voltage fro

Technical Information

Mounting Type
Wall-Mounted
Net Weight
8.1 kg
Number of Phases
3 Phase
Standard
IEC 61800-5-1
Storage Temperature
-25-70 degrees C

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
606489548684
GTiN
03606489548681
Housing Material
Plastic
Product UPC
60648954868
Weight
8.1 kg

Dimensions

Depth
235 mm
Height
13.39 in
Width
9.84 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
ATEX,CE,EAC,GOST,KC,NOM,RCM
Country of Origin
Indonesia
Environmental Class During Storage
  • class 1C3 according to EN 60721-3
  • class 1S2 according to EN 60721-3
US Rated Supply Voltage
  • 380...500 V - 15...10 %
Analogue Input Type
  • AI1 voltage 0...10 V DC 30 kOhm 10 bits
  • AI2 bipolar di
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Analogue Output Type
  • software-configurable current AQ1 0...20 mA 800 Ohm 10 bits
  • software-confi
Communication
  • VW3A3608
  • VW3A3616
  • VW3A3627
  • VW3A3618
  • VW3A3628
  • VW3A3601
  • VW3A3607
Carbon Footprint Of The Installation Phase A5
  • 0.1 kg CO2 eq.
  • 0.137459785
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 2.2975319626
  • 2 kg CO2 eq.
Discrete Input Type
  • STO safe torque off, 24 V DC1.5 kOhm
  • DI1...DI6 logic inputs, 24 V DC 30 V)
  • DI1...DI6 logic inputs, 24 V DC
Related Products
  • VW3A7730
  • VW3A4552
  • VW3A4422
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 76 kg CO2 eq.
  • 76.0798411215
Method Of Access
  • slave CANopen
Line Current
  • 8.7 A 380 V heavy duty)
  • 6.6 A 500 V heavy duty)
Motor Slip Compensation
  • automatic whatever the load
  • adjustable 0...300 %
  • not available in voltage/frequency ratio (2 or 5 points)
Maximum Switching Current
  • relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC
  • re
Relay Output Type
  • configurable relay logic R1A 1 NO 100000 cycles
  • configurable relay logic R1B 1 NC 100000 cycles
  • configurable r
Protection Type
  • input phase breaks drive
  • overcurrent between output phases and earth drive
  • overheating protection drive
  • short-circuit between motor phases drive
  • short
Sampling Duration
  • 2 ms AI1, AI2, AI3) - analog input
  • 2 ms AQ1) - analog output
Linearity Error
  • AI1, AI2, AI3 +/- 0.2...0.5 % of maximum value analog input
  • AQ1 +/- 0.3 % analog output
  • AQ1 +/- 0.3 % anal
Environmental Class During Operation
  • class 3C3 according to IEC 60721-3-3
  • class 3S2 according to IEC 60721-3-3
Option Card
  • communication module, CANopen
  • communication module, EtherCAT
  • communication module, Profibus DP V1
  • communication module, PROFINET
  • communication module, PROFI
Persona Type Names
  • End User
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
Motor Power KW
  • 2.2 kW heavy duty
Refresh Time
  • logic input DI1...DI4)8 ms
  • relay output R1A, R1B, R1C)2 ms
  • relay output R2A, R2C)2 ms
  • relay output R2A, R2C)2
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 2 354 kg CO2 eq.
  • 2354.4367044492
Electromagnetic Compatibility
  • electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
  • radiated radio-frequency electro
Apparent Power
  • 5.7 kVA 500 V heavy duty)
Persona Type Ids
  • EU
  • OM
  • OM8
Environmental Class During Transport
  • class 2C3 according to EN 60721-3
  • class 2S1 according to EN 60721-3
Carbon Footprint Of The Distribution Phase A4
  • 1.4024331776
  • 1 kg CO2 eq.
Minimum Switching Current
  • relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
Asynchronous Motor Control Profile
  • voltage/frequency ratio, 5 points
  • flux vector control without sensor, standard
  • voltage/frequency ratio - Energy Saving, quadratic U/f
  • flux vector control without sensor - Energy Saving
  • voltage/frequency ratio, 2 points
Transient Overtorque
  • 170-200 % of nominal motor torque
Discrete Output Type
  • open collector DQ+ 0-1 kHz 30 V DC 100 mA
  • op
Power Dissipation In W
  • self-cooled 74.0 W 380 V 4 kHz
Ambient Air Temperature For Operation
  • -10-40 °C without derating
  • 40-60 °C with derating factor
Speed Accuracy
  • +/- 10 % of nominal slip 0.2 Tn to Tn
Switching Frequency
  • 2...16 kHz adjustable
  • 4...16 kHz with derating factor
