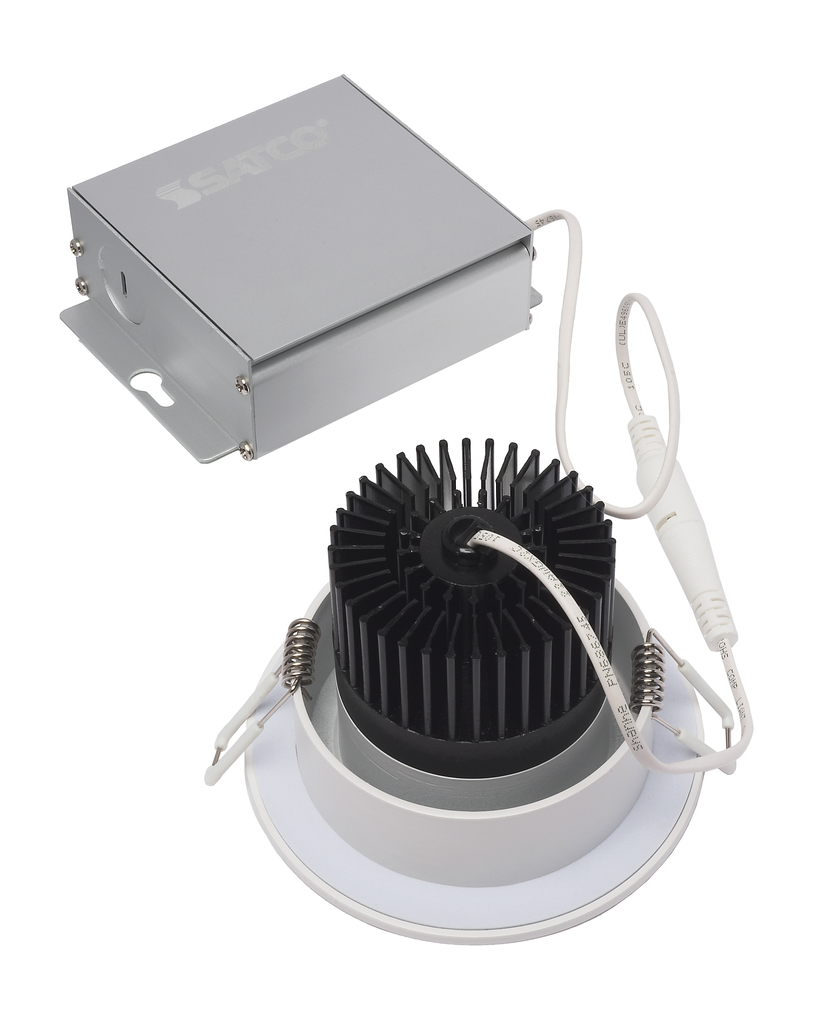

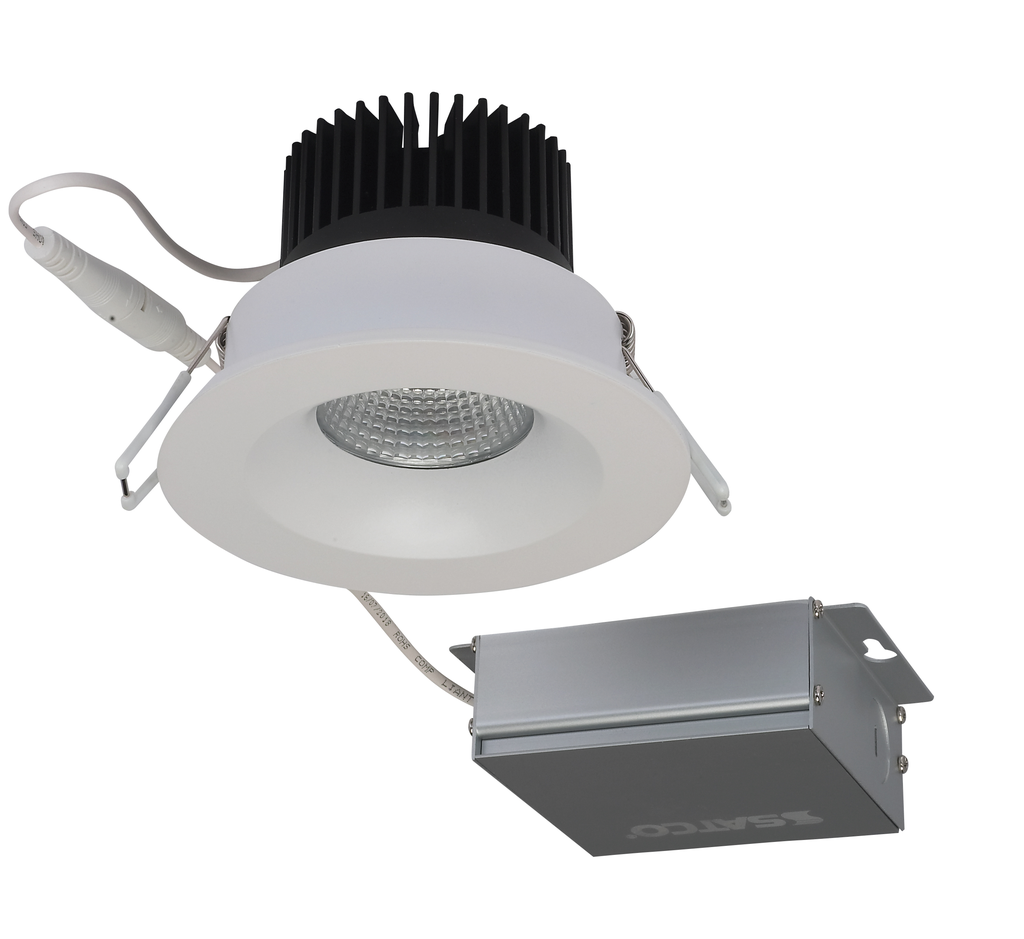

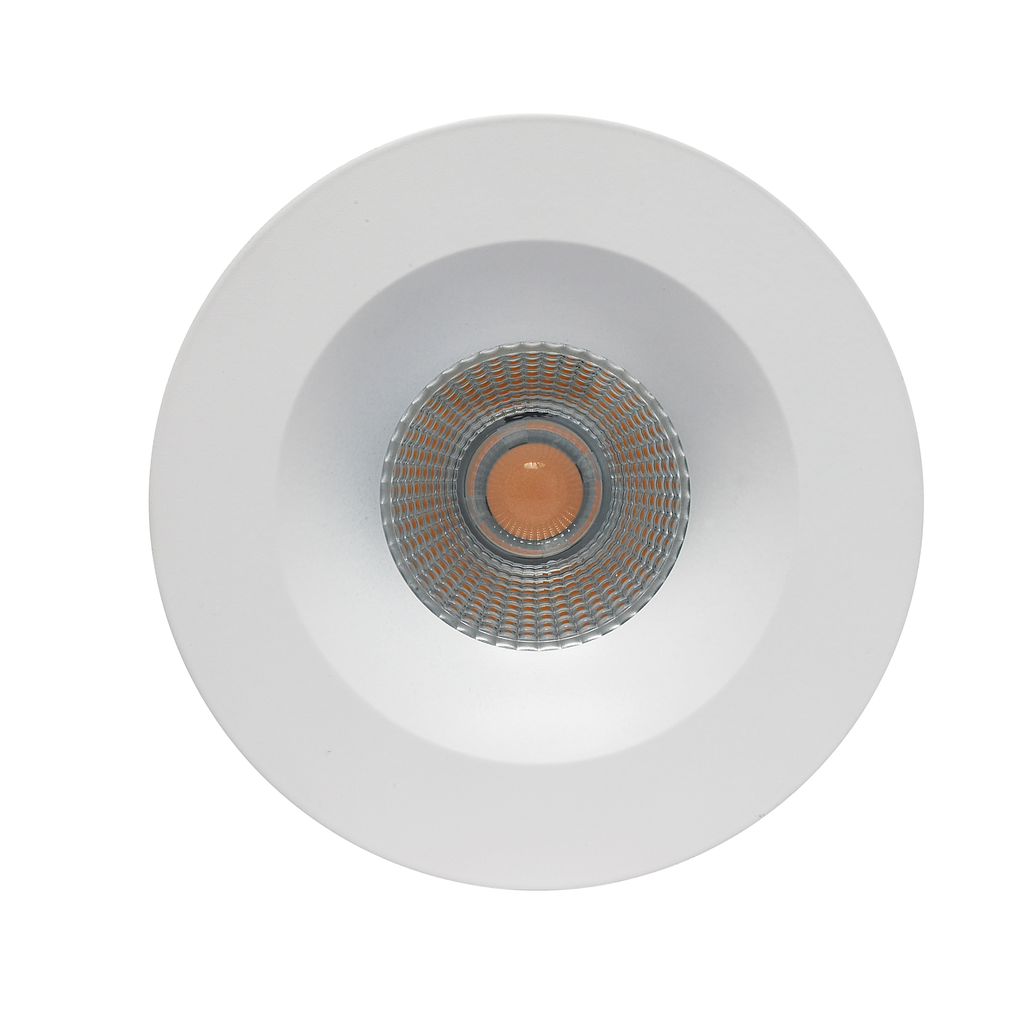

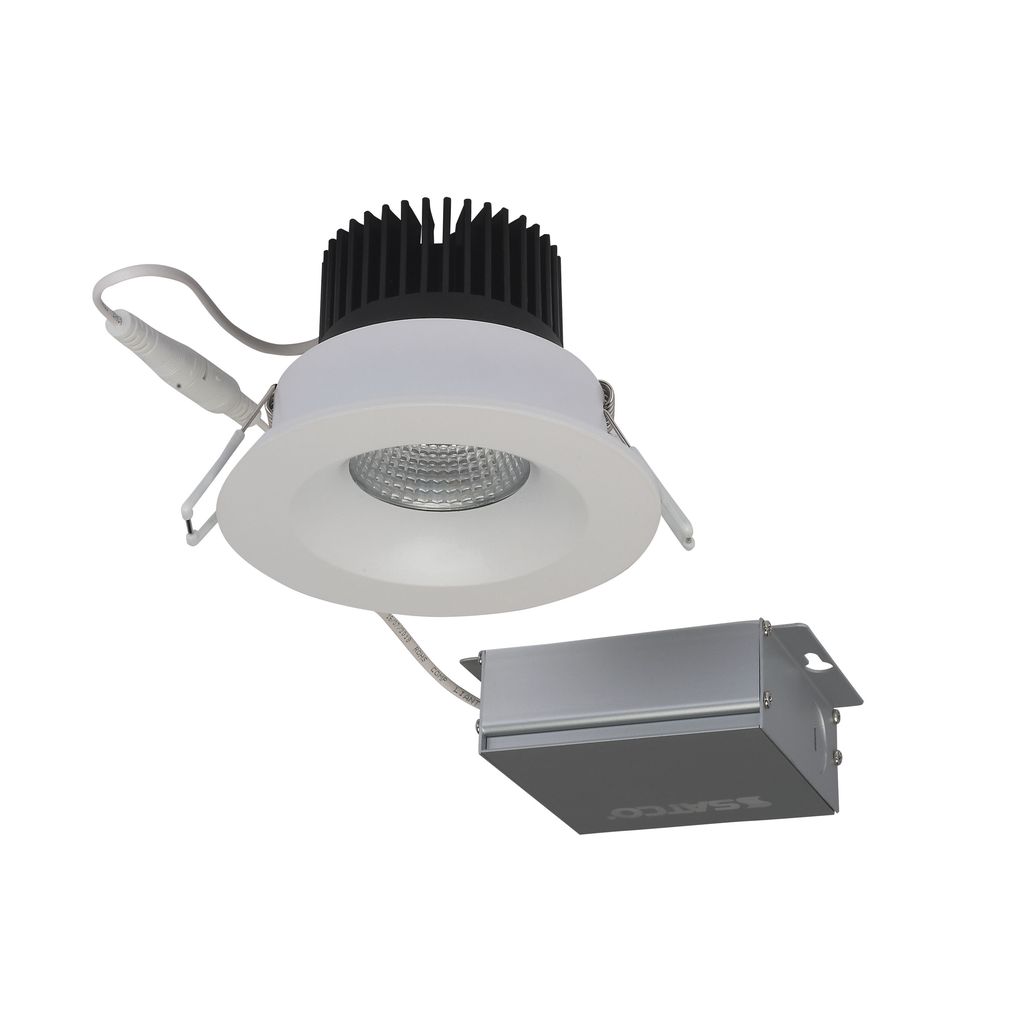

Product image for Satco S11630 12 watt LED Direct Wire Downlight; 3.5 inch; 3000K; 120 volt; Dimmable; Round; Remote Driver; White
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Satco S11630 12 watt LED Direct Wire Downlight; 3.5 inch; 3000K; 120 volt; Dimmable; Round; Remote Driver; White

Manufacturer: Satco | Nuvo | Catalog # S11630 | Cooper Electric Part # 1522151
$36.98/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
12 watt LED Direct Wire Downlight; 3.5 inch; 3000K; 120 volt; Dimmable; Round; Remote Driver; White

Technical Information

Average Rated Life
50000 hr
Beam Angle
40
Beam Spread
40
Color Accuracy
90
Color Rendering Index
90
Color Temperature
Warm White
Correlated Color Temp
3000 K
Dimmable?
Yes
Incandescent Equivalent
75 W
Indoor Outdoor
Indoor
Lens Color
Clear
Lens Material
Glass,Polycarbonate
Lumens
840 Lumen
Material
Aluminum
Number of Lamps
1
Operating Temperature
-20 degrees C
Power Factor
0.98
Style
Utility
Technology Type
LED
Type
Remote Driver LED Downlight
Voltage
120 Volt
Wattage
12 Watt
Wet Location
Wet

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco

General Product Info

12-Digit UPC
045923116308
Finish
White
Fixture Type
Round
Product UPC
04592311630
Shape
Round
Weight
1.09 lb

Dimensions

Diameter
4.38 Inch
Height
3 Inch
Warranty Length
5 yr
Width
4.38 in

Certifications and Compliance

CA Prop65 Warning
Lead
Country of Origin
China
Features
  • Diameter: 4.38 inches, Height: 3.00 inches
  • Dimmable
  • Wet location rated for indoor use
  • 3000K Warm White Light
  • Superior 90 CRI light quality
  • 5 year limited warranty
  • 840 lumens
  • Rated for 50,000 hours
  • FCC and RoHS compliant
  • Integrated j-box for direct wire installation
Prop 65
  • Lead
Installation Notes
  • **If you purchase The 5W Emergency Driver (S8000) or the 10W Emergency Driver (S8002), you must also purchase the Emergency Driver Enclosure (80-973)
