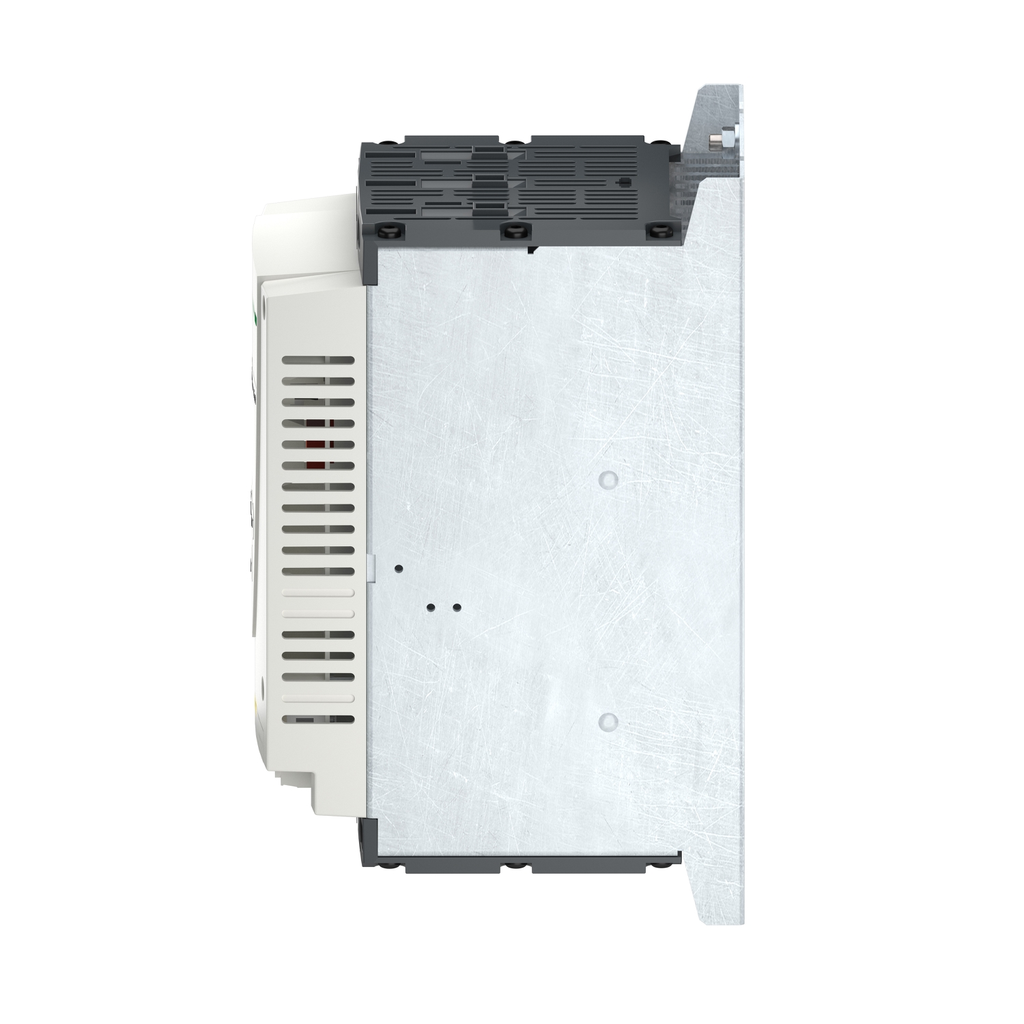

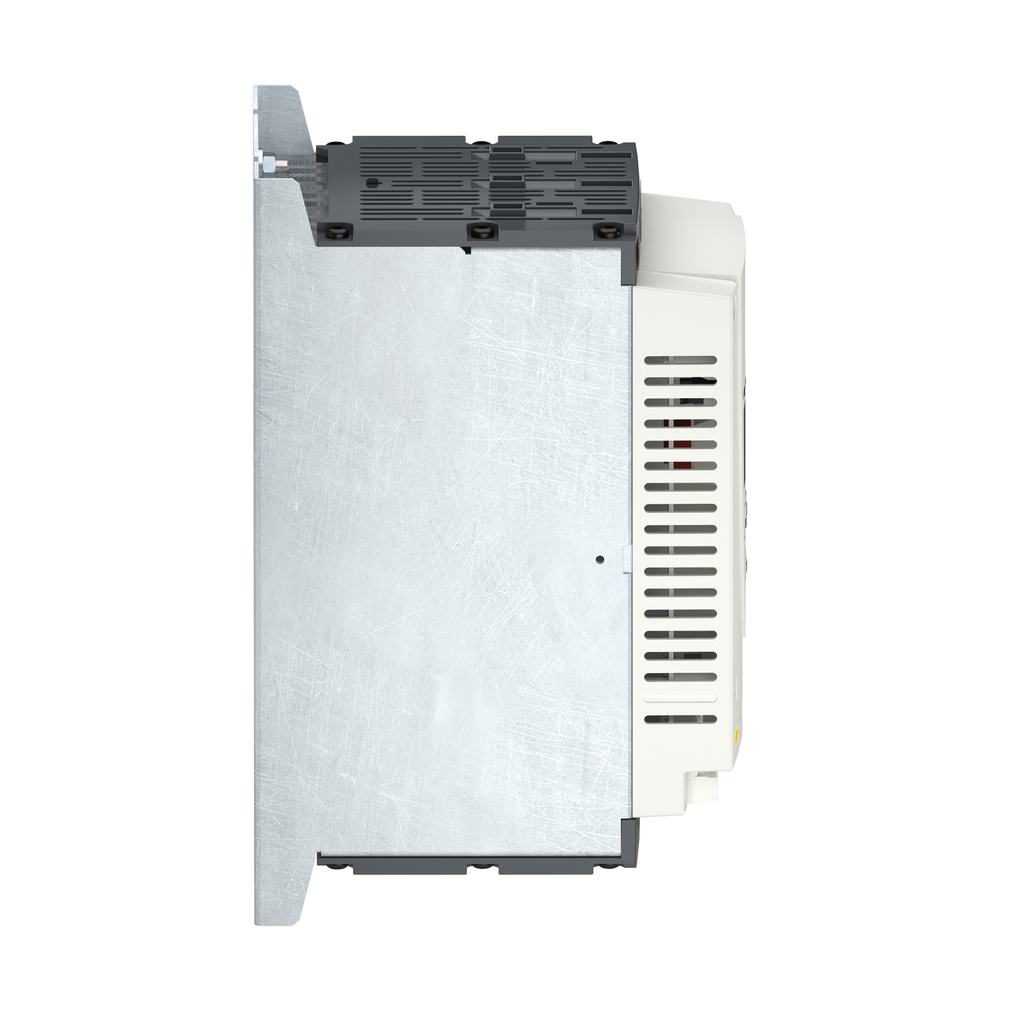

SQD ATS22D17Q soft starter for asyn

Manufacturer: Square-D / Schneider | Catalog # ATS22D17Q | Cooper Electric Part # 1521486
$830.20 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line connection. It has a rating of 17A and 230V to 440V, a rated power up to 7.5kW (400V to 440V in supply line) and up to 15kW (440V in motor delta connection). It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.

Technical Information

Amperage
14.8 Amp
Applications
ASYNCHRONOUS MOTORS,PUMPS AND FANS
Connection Type
1 RJ45
Net Weight
7 kg
Number of Phases
3 Phase
Operating Temperature
-10-40 Adegrees C WITHOUT)-40-60 Adegrees C WITH CURRENT DERATING 2.2 PER Adegrees C)
Power Supply
230...440 V - 15...10 ,50...60 HZ - 10...10
Size
130 MM,169 MM,265 MM
Standard
IEC 60947-4-2
Storage Temperature
-25-70 degrees C
TC Connection
1 RJ45,4800, 9600 OR 19200 BPS,IN THE MOTOR SUPPLY LINE-TO THE MOTOR DELTA TERMINALS,SERIAL
Type
SOFT STARTER
Wattage
39 Watt FOR STANDARD APPLICATIONS

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
064801671883
GTiN
03606480167188
Product UPC
60648016718
Weight
7 kg

Dimensions

Depth
6.65 in
Height
10.43 in
Warranty Length
18 mth
Width
5.12 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
C-Tick,CCC,CSA,GOST,UL
Country of Origin
Indonesia
Uc Control Circuit Voltage
  • 230 V - 15...10 % 50/60 Hz
Power Range
  • 4-6 kW 200-240 V 3 phase
  • 7-11 kW 380-440 V 3 phase
Icl Starter Rating
  • 17 A connection in the motor supply line for standard applications
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Discrete Input Type
  • LI1, LI2, LI3) logic, 5 mA 4.3 kOhm
Device Connection
  • in the motor supply line
  • to the motor delta terminals
Maximum Switching Current
  • 5 A 250 V AC resistive 1 relay outputs
  • 5 A 30 V DC resistiv
Protection Type
  • phase failure line
  • thermal protection motor
  • thermal protection starter
Discrete Input Voltage
  • 24 V <= 30 V
Vibration Resistance
  • 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6
  • 1.5 mm (f= 2-13 Hz) conforming to IEC 60068-2-6
  • 1.5 mm (f= 2-1
Electromagnetic Compatibility
  • conducted and radiated emissions level A conforming to IEC 60947-4-2
  • damped oscillating waves level 3 conforming to
Supply Frequency
  • 50...60 Hz - 10...10 %
Relative Humidity
  • 0-95 % without condensation or dripping water IEC 60068-2-3
Us Rated Supply Voltage
  • 230...440 V - 15...10 %
Minimum Switching Current
  • 100 mA 12 V DC relay outputs)
Operating Altitude
  • <= 3280.84 ft (1000 m) without derating
  • > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m
  • > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % p
Motor Power Kw
  • 4 kW 230 V
  • 7.5 kW 400 V
  • 7.5 kW 440 V
Discrete Input Logic
  • positive logic LI1, LI2, LI3 < 5 V <= 2 mA > 11 V, >= 5 mA
  • positive logic LI1
Output Current
  • 0.4...1 Icl adjustable
Discrete Output Type
  • relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
  • relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, rea
Shock Resistance
  • 15 gn 11 ms IEC 60068-2-27
Power Dissipation In W
  • 39 W for standard applications
Ambient Air Temperature For Operation
  • -10-40 °C (without derating)
  • 40-60 °C (with current derating 2.2 % per °C)
Product Certifications
  • UL
  • GOST
  • CSA
  • CCC
  • C-tick
