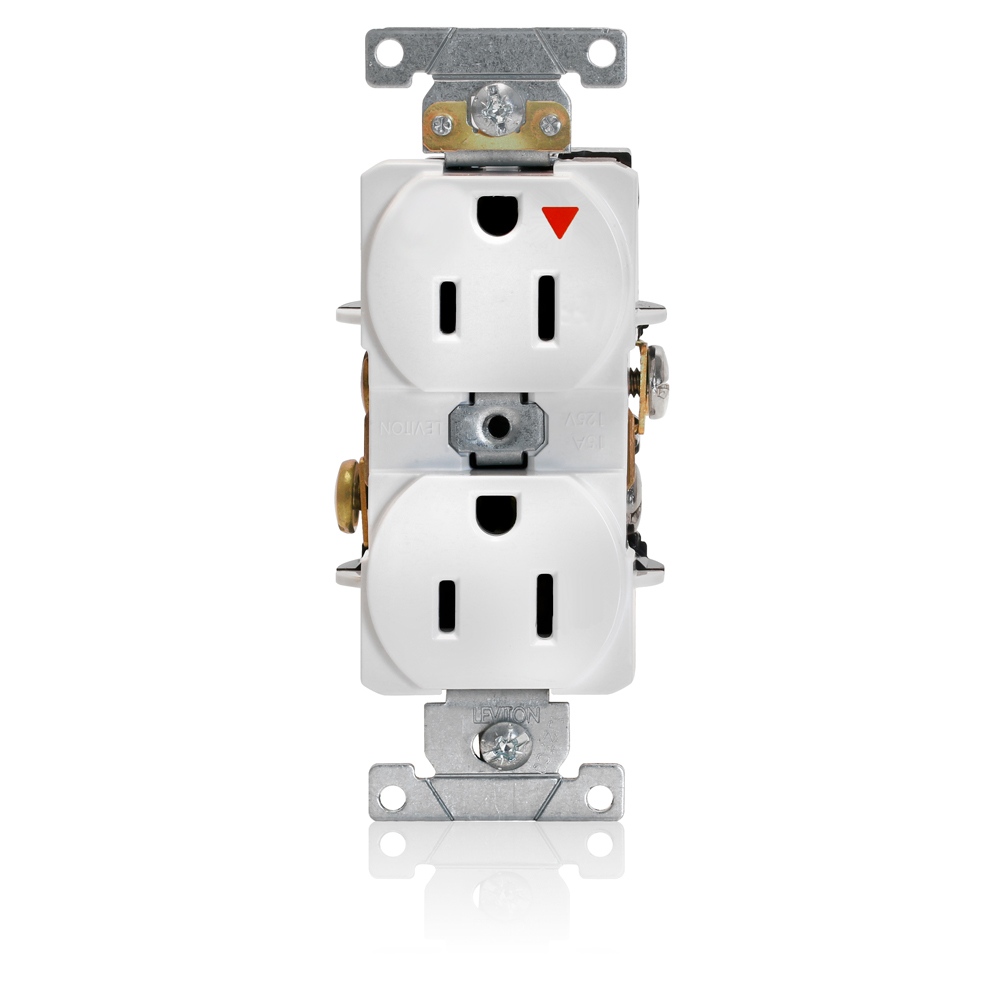

Product image for Leviton 5262-IGW 125 Volt 15 Amp 2-Pole 3-Wire NEMA 5-15R 1/2 Hp White Thermoplastic Nylon Straight Blade Duplex Receptacle
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Leviton 5262-IGW 125 Volt 15 Amp 2-Pole 3-Wire NEMA 5-15R 1/2 Hp White Thermoplastic Nylon Straight Blade Duplex Receptacle

Manufacturer: Leviton Mfg Co | Catalog # 5262-IGW | Cooper Electric Part # 151835
$58.24/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
Isolated Ground Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face,15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - White

Technical Information

Amperage
15 Amp
Applications
Industrial
Body Material
Nylon
Conductor Size
14-10 AWG
Connection Type
Back and Side Wire
Device Type
Duplex Receptacle Outlet
Dielectric
2000 V
Dielectric Strength
2000 V
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grade
Hospital
Grounding
Self-Grounding
Horsepower
1/2 hp
Material
Thermoplastic
Mounting Type
Wallbox, Flush
NEMA
WD-6
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
46 H x 1.33 W x 1.12 D IN
Standard
ANSI C-73
TC Connection
Back & Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Termination Type
Back Wire,Side Wire
Torque
14 lb-in
Type
Outlet, Isolated Ground
Voltage
125 Volt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Industrial Receptacles

General Product Info

12-Digit UPC
078477053072
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Finish
Matte
GTiN
00078477053072
Product UPC
07847705307

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
NEMA
  • 5-15R
Features
  • Levitons line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
