Caddy CSBS1A Steel Flange Adapter Assembly for 1/4"-3/4" Flange electrogalvanized

Manufacturer: Erico, Inc | Catalog # CSBS1A | Cooper Electric Part # 1517386
$9,852.82/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure

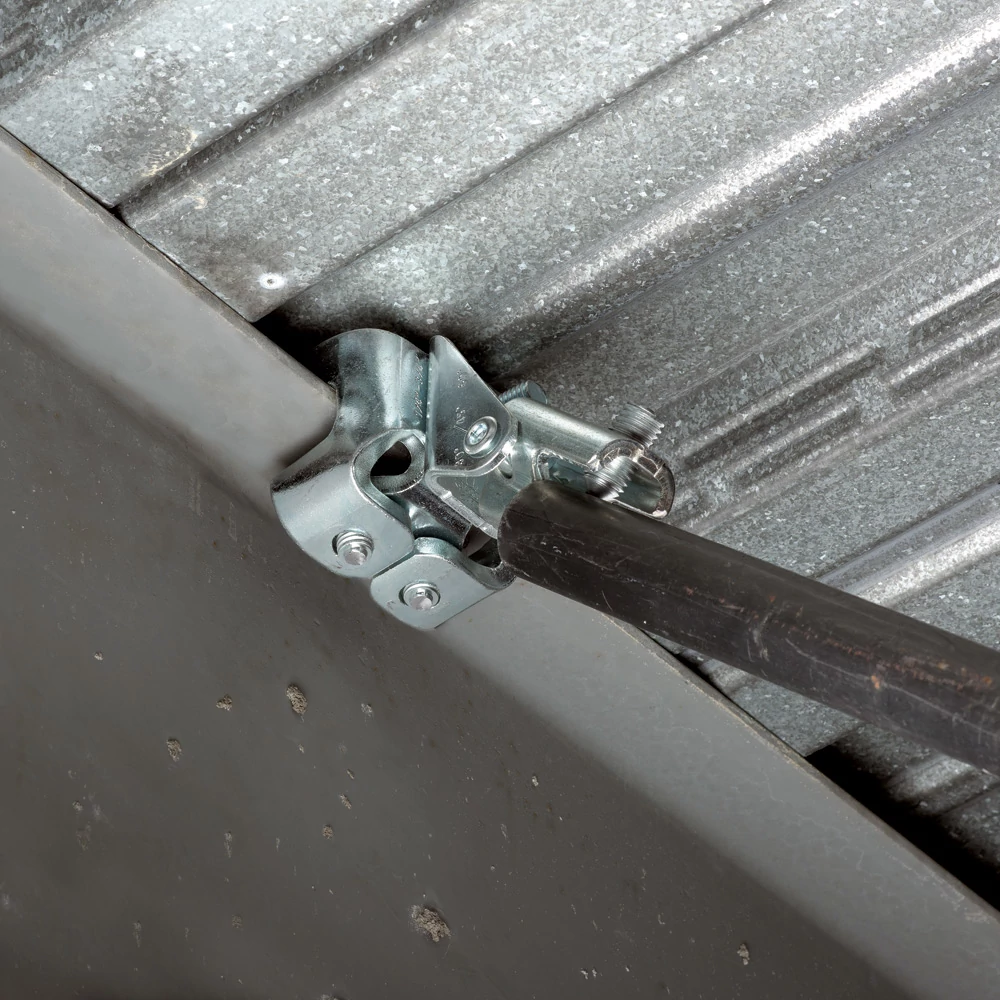

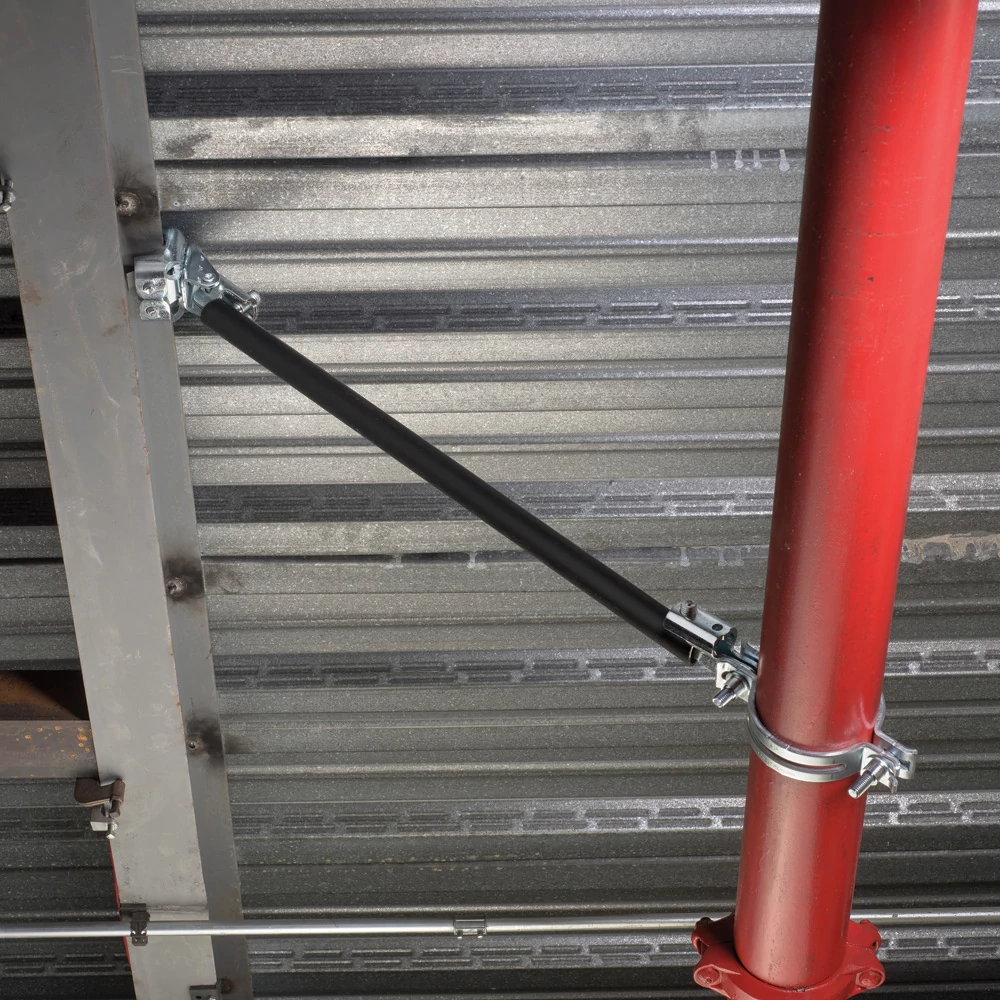

Preassembled adapter used to fasten a seismic brace to a steel flange. Installs on top or bottom flange of I-beam or bar joist. Thumb spring retainer for easy positioning. Snap-off bolt head for easy inspection.

Technical Information

Angle
45 degrees
Applications
Fire Sprinkler; Seismic Bracing
Material
Steel
Type
Structural Attachments for Rigid Bracing

Packaging

Standard Packaging Qty
5 pc

Manufacturer Information

Brand
nVent Caddy

General Product Info

12-Digit UPC
782856920090
Finish
Electro Galvanized
GTiN
00782856920090
Product UPC
78285692009
Weight
1.65 kg

Dimensions

Height
2-5/8 Inch
Width
3 5/8 in

Certifications and Compliance

Certifications
CULus,FM,FM Tested,OSHPD
Features
  • Steel Flange Adapter and Universal Structural Bracket are preassembled, limiting work required in the field
  • Installs on top or bottom flange of I-beams? or bar joists
  • Low profile easily fits between metal deck and steel structure
  • Thumb spring retainer allows for ease of positioning
  • Integrated angle gauge easily displays brace member angle of installation
  • Snap-off bolt head helps enable easy installation and inspection of seismic sway braces
  • Works with 1\" through 2\" brace pipes to reduce inventory
  • Meets NFPA® 13 as pre-qualified for seismic applications
  • FM Approved with the following brace members: 1-2 in Sch40 Pipe
  • FM Specification Tested with the following brace members: 1-2 in Sch40 Pipe
Certifications
  • FM Tested ANSI/FM 1950
  • cUL ULC/ORD-C203A
  • UL UL 203A
  • FM Approved, Seismic FM 1950-2013
