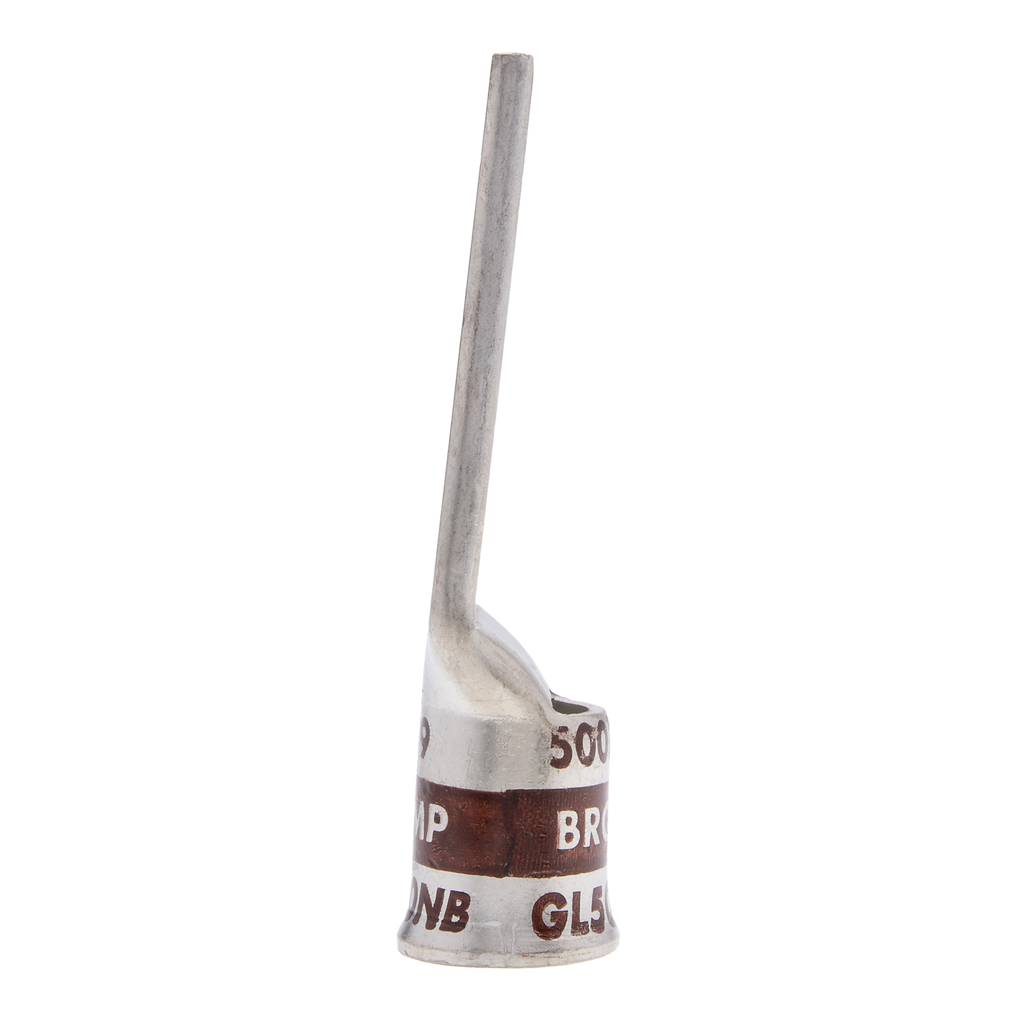

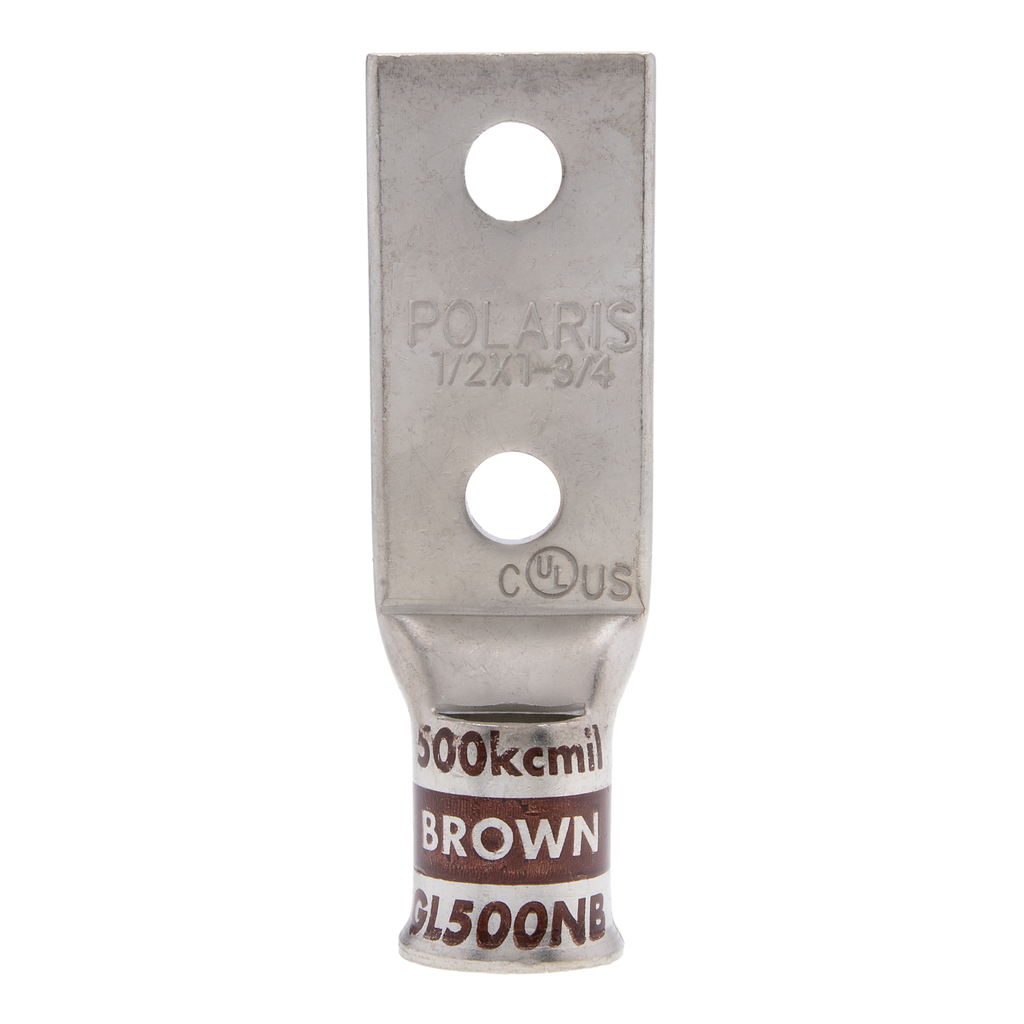

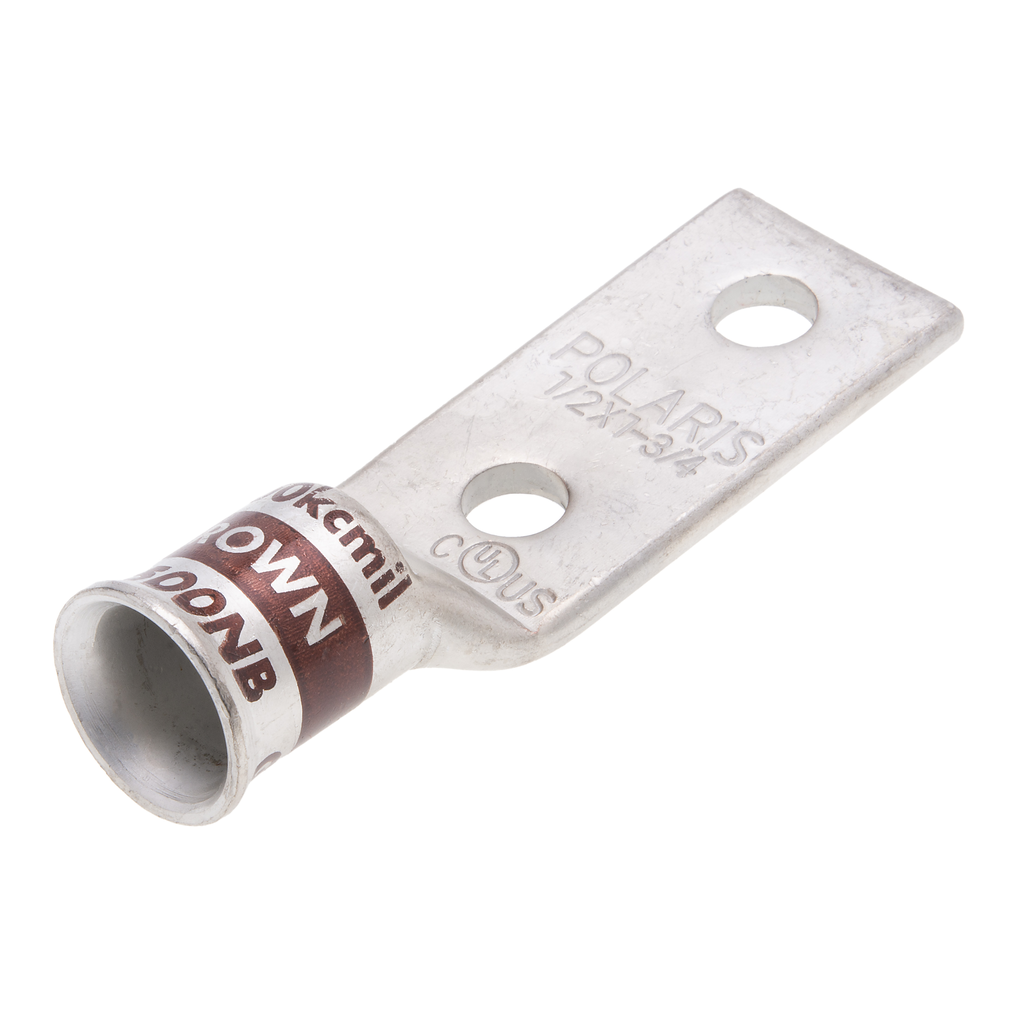

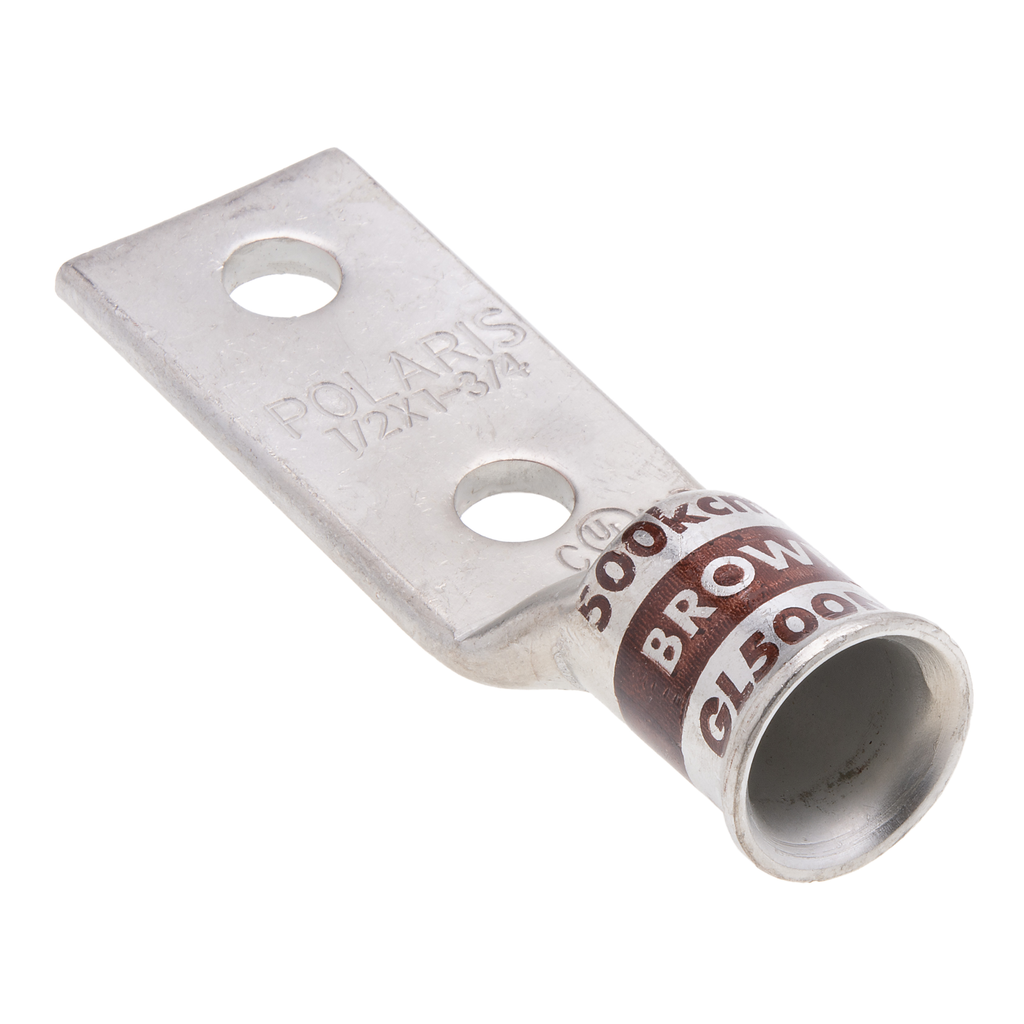

Product image for NSI GL500NB CU CMP Lug Short 500 MC
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

NSI GL500NB CU CMP Lug Short 500 MC

Manufacturer: NSi | Catalog # GL500NB | Cooper Electric Part # 1514927
$2,472.98/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
2Hole Short Barrel Copper Compression Lug for Flexible Copper Cable500 MCM- 1/2" Bolt Compression lugs for flexible copper cables are connects that have a gentle, continuous flared end to ensure ease of cable insertion of flexible and extra flexible cables such as locomotive, welding, mining cable and more. The flared end also reduces pressure on the cable strands after installation and protects them from chafing and breakage as a result of cable movement. Tin-plated for corrosion resistance. Rated 600 volts for copper cables only. Single mounting hole.

Technical Information

Applications
Terminate, Splice, Tap Power Connectors
Cable Size
500 MCM
Material
Copper
Max Temperature
194 degrees F
Mounting Type
1/2 Mounting Holes
Number of Holes
2 Hole
Size
L=4.88 - W=1.54 - OD=1.06 - ID=.840
Standard
UL486
Stud Size
1/2 in
Type
Short Barrel - Two Hole - Belled End
Voltage
600 Volt

Manufacturer Information

Brand
NSI Industries
Sub Brand
Copper Compression

General Product Info

12-Digit UPC
662381036858
Color
Brown
Environmental Conditions
90 degrees C
Finish
Tin Plated
GTiN
00662381036858
Product UPC
66238103685

Dimensions

Height
1.174 Inch
Length
4.882 Inch
Warranty Length
1 yr
Width
1.54 in

Certifications and Compliance

Country of Origin
India
Features
  • Connector end has a gentle, continuous flare to ensure ease of cable insertion of flexible and extra-flexible cables such as locomotive, welding, mining cable and more
  • The flared end also reduces pressure on the cable strands after installation and protects them from chafing and breakage as a result of cable movement
  • Tin-plated for corrosion resistance
  • NEMA spaced mounting holes (1-3/4\")
  • Wire connector rated for 35kV max, Class B/C compressed, concentric, and compact copper conductor only
Certifications and Standards
  • cULus
  • UL Listed
  • UL 486A
Additional Notes
  • EXPANDED WIRE RANGE when installed with NSI N12ID dieless compression tool. UL Listed with other tools: FOR TOOL/DIE CRIMPING INFORMATION, PLEASE SEE TABLE ON PAGE 87
