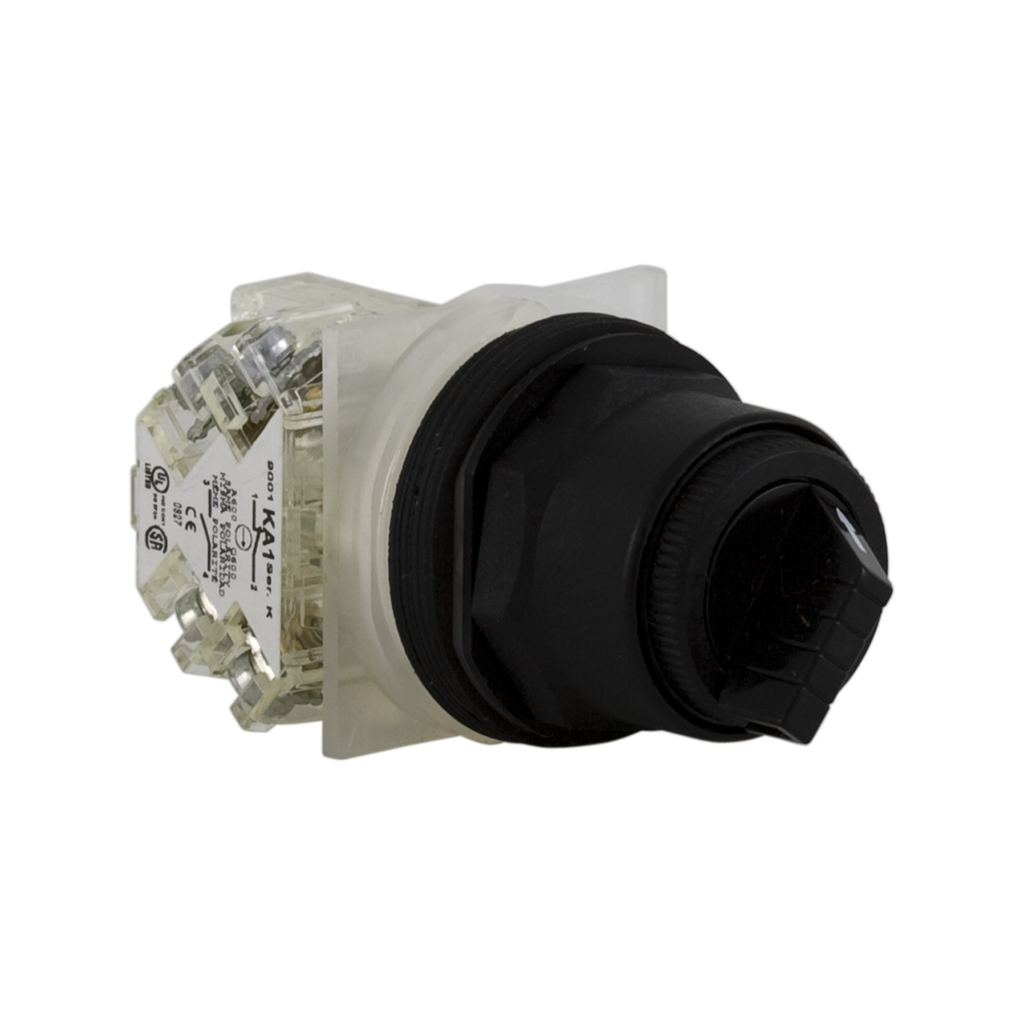

Product image for Square D 9001SKS11BH13 30 mm 10 Amp 600 VAC/VDC 1NO 1NC 2-Position Round Knob Non-Illuminated Selector Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2

Email

Square D 9001SKS11BH13 30 mm 10 Amp 600 VAC/VDC 1NO 1NC 2-Position Round Knob Non-Illuminated Selector Switch

Manufacturer: Square-D / Schneider | Catalog # 9001SKS11BH13 | Cooper Electric Part # 151273

$116.87/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
1 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
This Harmony 9001SK, black selector switch with E cam has 2 positions and operates with a stay-put mechanism. It has a double insulated plastic bezel and uses screw-clamp terminals and has 1 x NO + 1 x NC contacts. This selector switch provides a versatile interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with simple screw-clamp connections. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.

Technical Information

Action
STAY PUT
Actuator
2 positions
Amperage
10 Amp
Applications
9001KA1 SIDE 1 OR 2
Bezel Material
Plastic
Contact Configuration
1 C/O
Contact Rating
AC15 - DC13
Enclosure
NEMA 1/2/3/3R/4/4X/6/12/13
Operating Temperature
-25-70 Adegrees C
Size
30 mm
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP
Type
Selector switch
Voltage
600 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
9001SK

General Product Info

12-Digit UPC
785901043393
Color
Black
Environmental Conditions
WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
GTiN
00785901043393
Product UPC
78590104339

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA LR24590 Class 3211 03,UL Listed File E42259 CCN NKCR
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • 9001KA1
  • 9001KA2
  • 9001KA3
  • 9001KA5
Spare Part Products
  • 9001KA1
  • 9001SKS11B
