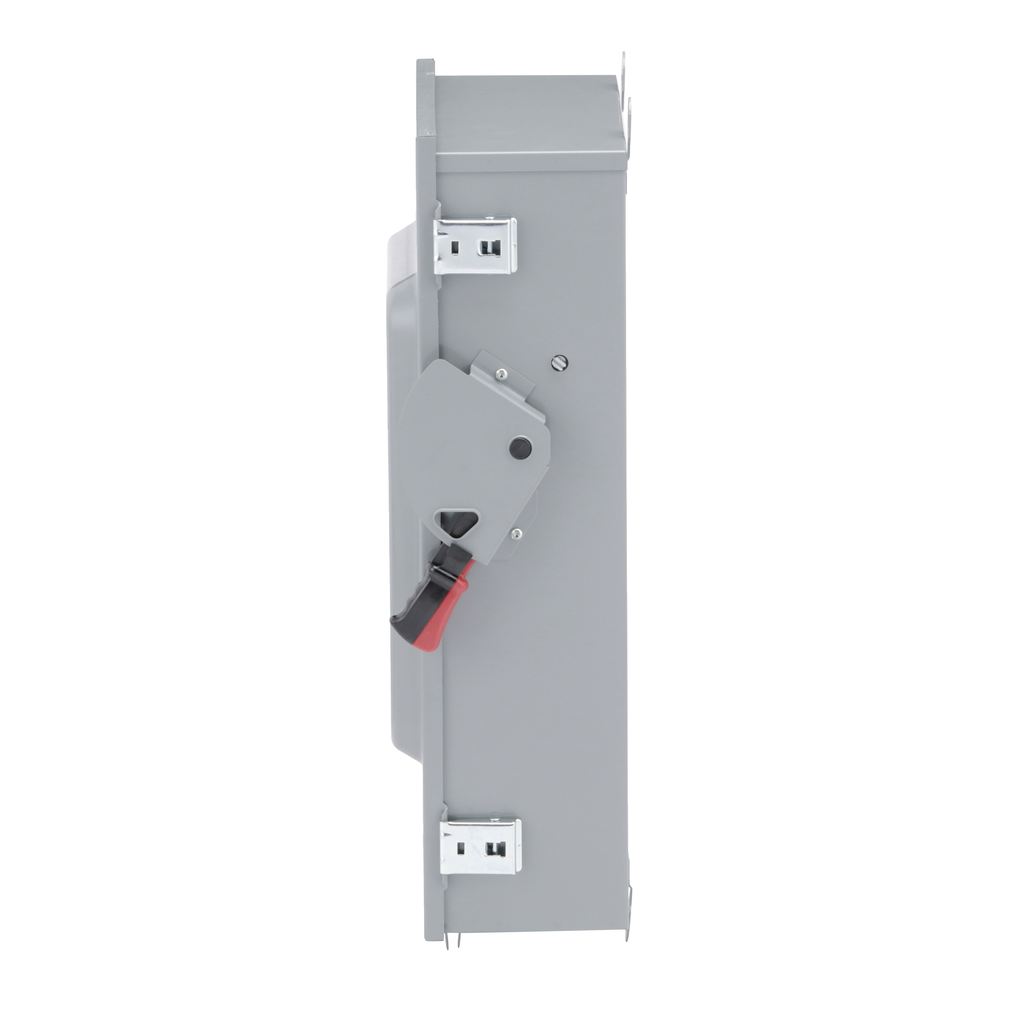

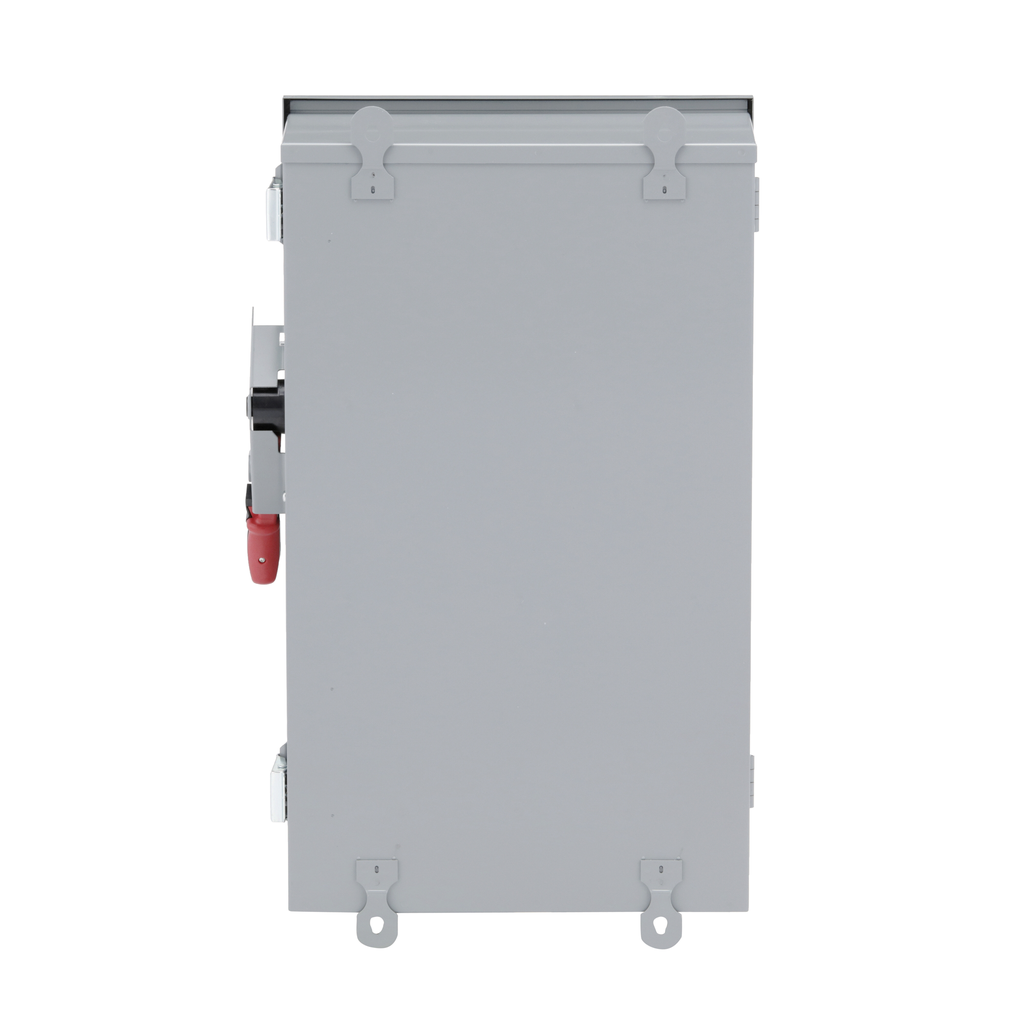

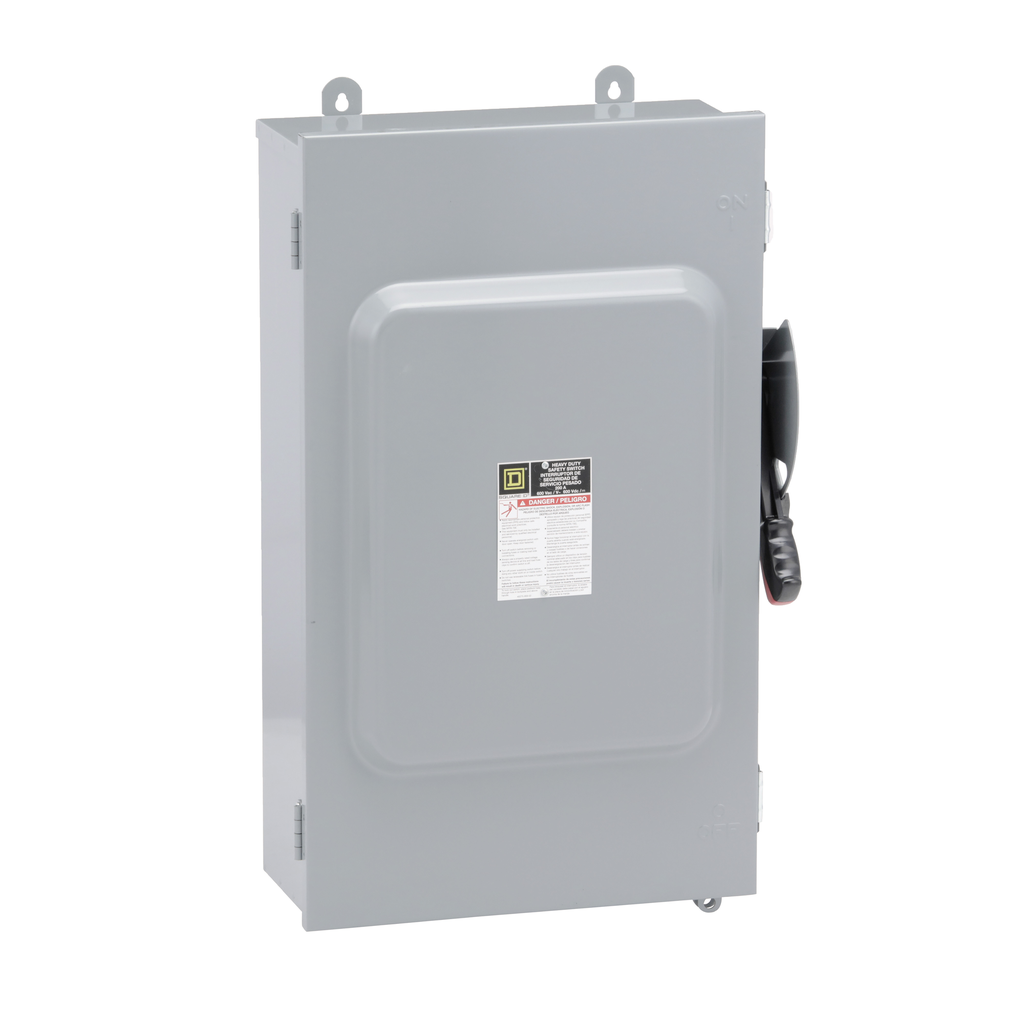

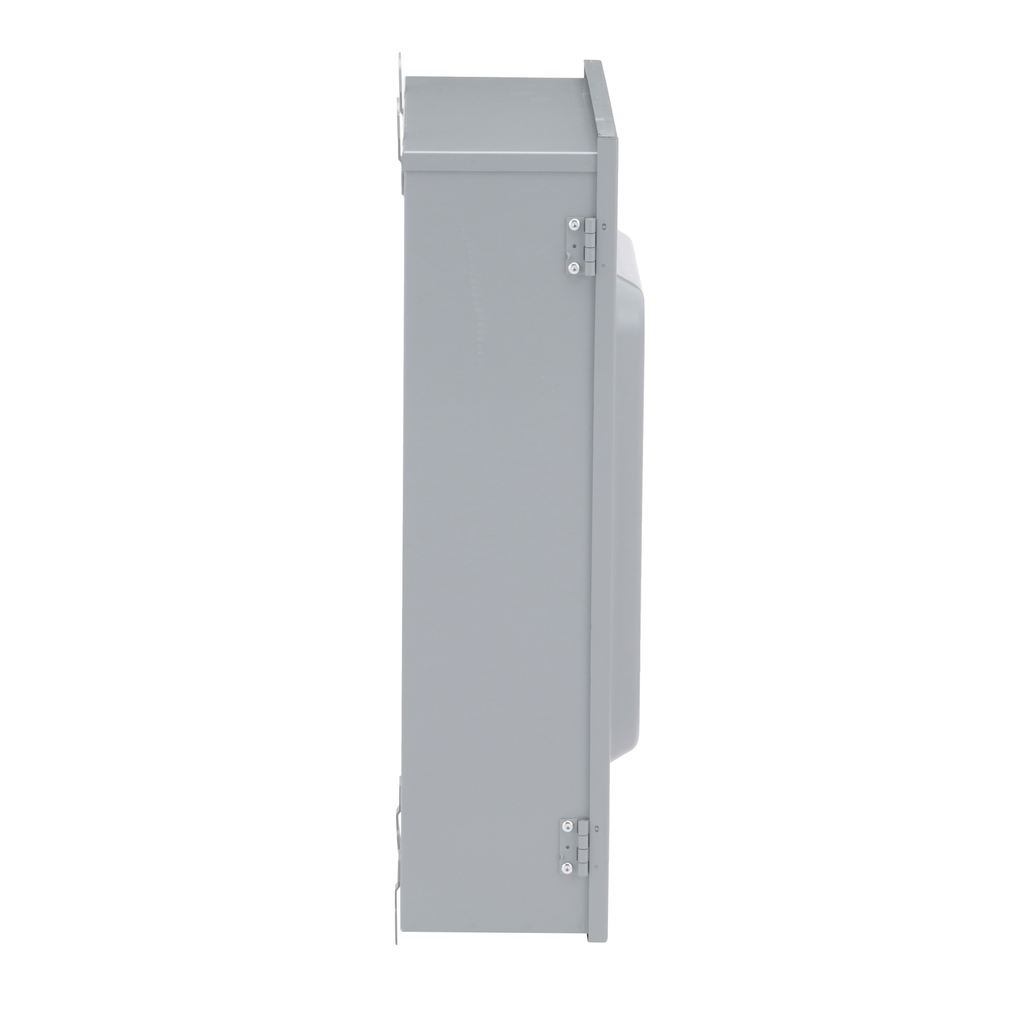

Square D H364AWK 600 VAC 200 Amp 3-Pole Class H/J/K/L/R Fusible Heavy Duty Safety Switch

Manufacturer: Square-D / Schneider | Catalog # H364AWK | Cooper Electric Part # 150951
$2,400.00 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Brochure Product Catalog Page Product Spec Sheet CAD Drawing #1
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance

Technical Information

Action
SINGLE THROW
Amperage
200 Amp
Applications
HEAVY DUTY
Conductor Size
6 AWG-250 kcmil
Current
200 Amp
Disconnect Type
Fusible disconnect NULL
Duty Rating
Heavy duty NULL
Enclosure
12,3R
Enclosure Material
Stainless Steel
Enclosure Rating
NEMA 3R/12 galvannealed steel
Fuse Type
H Or K,R Or J
Line Rated Current
200 A
Material
Steel
Mounting Type
Surface
NEMA Size
12,3R
Net Weight
24.95 kg
Number of Phases
3 Phase
Number of Poles
3 Pole
Short Circuit Current
10 kA
Size
18.63 IN,29 IN,8.75 IN
TC Connection
AWG 6...250 KCMIL COPPER OR ALUMINIUM,LUGS
Type
SINGLE THROW SAFETY SWITCH,FUSIBLE DISCONNECT
Voltage
600 Volt
Wire Size
AWG 6...250 kcmil copper or aluminium

Manufacturer Information

Brand
Square D
Sub Brand
HEAVY DUTY

General Product Info

12-Digit UPC
785901482369
Environmental Conditions
RAINPROOF, SLEET/ICE PROOF AND DUST TIGHT (INDOOR/OUTDOOR)
GTiN
00785901482369
Product UPC
78590148236
Weight
55.01 lb

Dimensions

Depth
8-3/4 Inch
Height
29 Inch
Warranty Length
18 mth
Width
18.63 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL Listed File E2875
Country of Origin
USA
Motor Power Hp
  • 50 hp at 480 V AC 50-60 Hz for 3 phase motors
  • 125 hp at 480 V AC 50-60
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 1.0483488278764748
  • 1 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 54 kg CO2 eq.
  • 53.500471523609065
Ue Rated Operational Voltage
  • 600 V AC/DC
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 111 kg CO2 eq.
  • 111.30466951801301
Nema Degree Of Protection
  • NEMA 3R/12 galvannealed steel
Accessories
  • EIK1
  • EIK2
  • HRK1020
  • SN20A
  • SN20C
  • PKOGTC2
  • SS20
  • LOGK2
  • CL20F
Short Circuit Current
  • 10 kA for H or K
  • 200 kA for R or J
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 58 kg CO2 eq.
  • 58.18838986968248
Accessory Products
  • EIK1
  • EIK2
  • HRK1020
  • SN20A
  • SN20C
  • PKOGTC2
  • SS20
  • LOGK2
  • CL20F
Carbon Footprint Of The Distribution Phase A4
  • 7.199716587499898
  • 7 kg CO2 eq.
Tightening Torque
  • 275-275 lbf.in 13.3-127 mm² (AWG 6...250 kcmil)
AWG Gauge
  • AWG 6...250 kcmil copper or aluminium
Fuse Type
  • H or K
  • R or J
