SQD SSL1A12BDR plug in relay, Harmo

Manufacturer: Square-D / Schneider | Catalog # SSL1A12BDR | Cooper Electric Part # 1507248
$18.04/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure

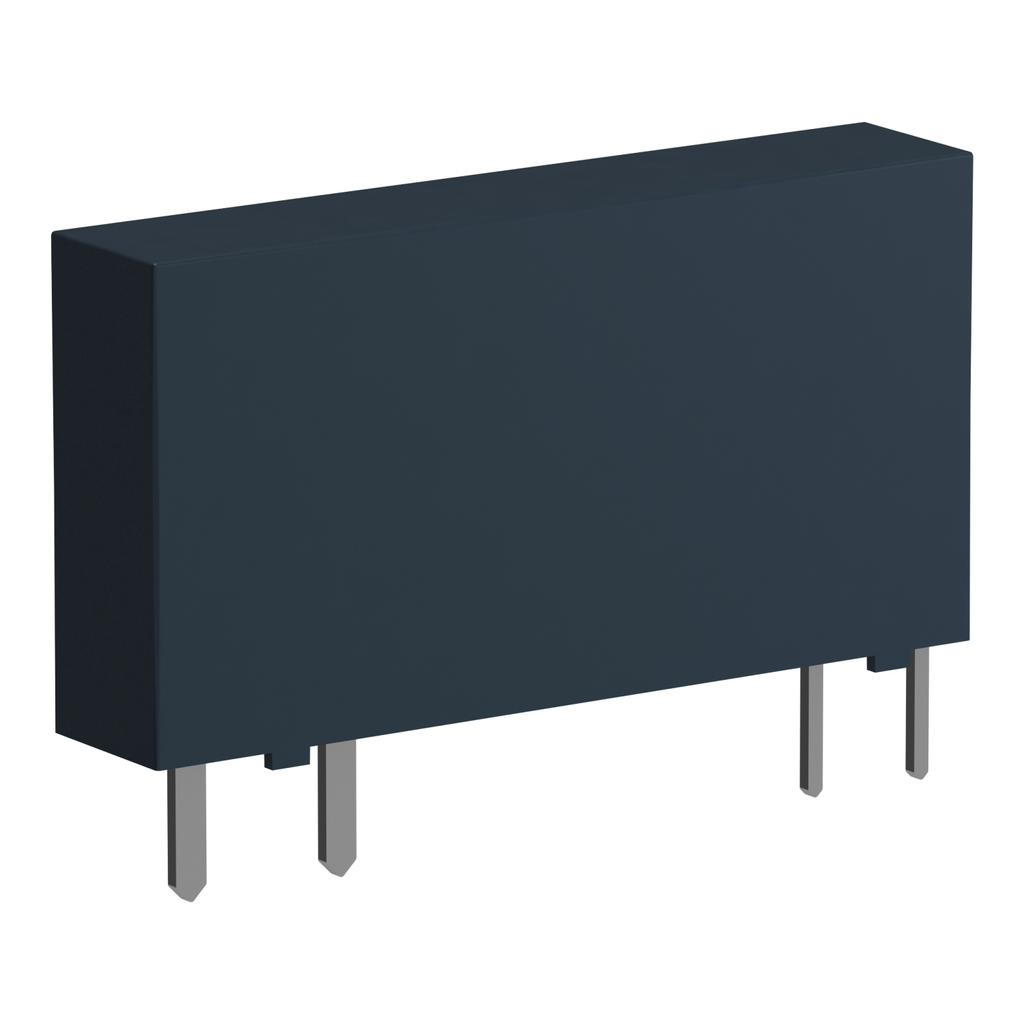

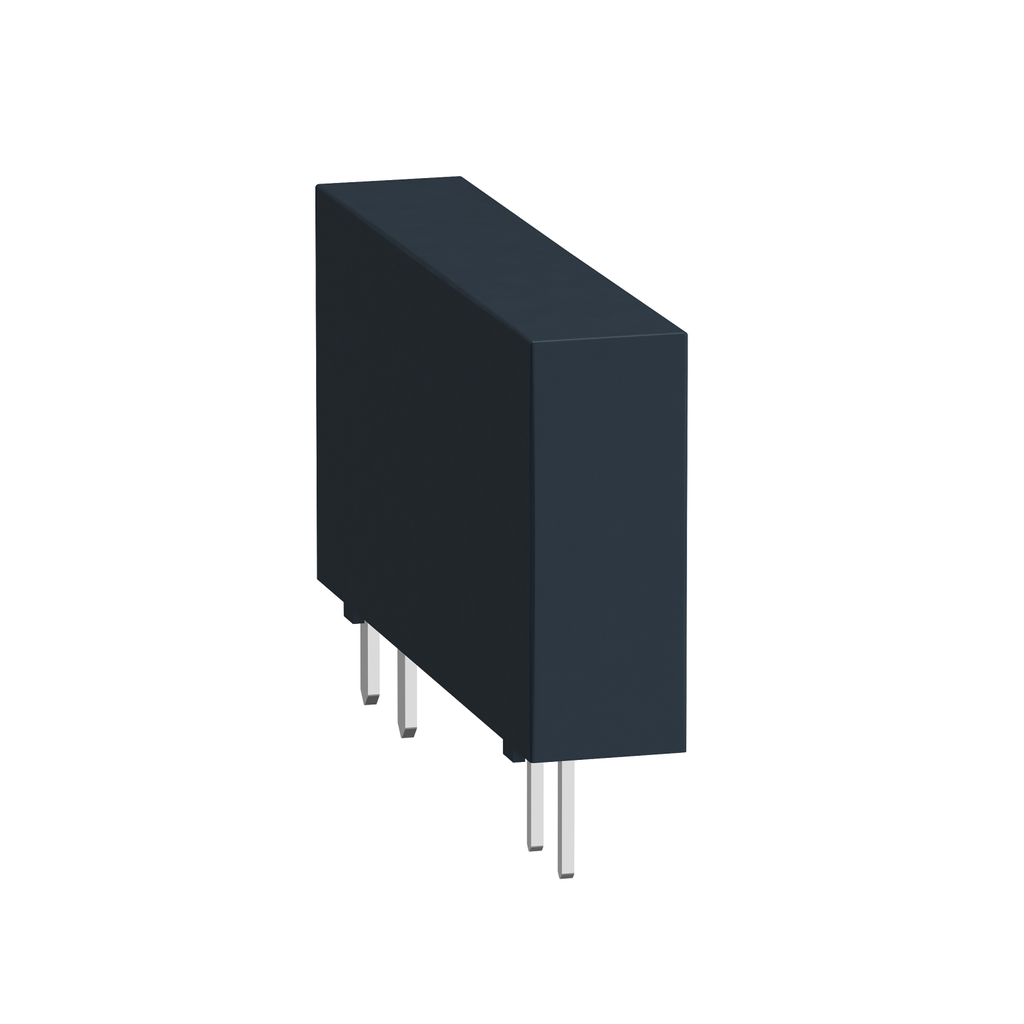

This Harmony SSL slim interfacing solid state plug-in relay is rated 2A, is controlled with a 15V to 30V DC input, has a rated load voltage of 24V to 280V AC with random voltage switching, ideal for inductive loads. It is 6mm width, including socket, to save space in your control cabinets. It is also silent and reliable thanks to the absence of moving contacts. It is shock, vibration and pollution resistant thanks to its IP67, it makes it ideal for harsh industrial environments. 0 0 0 0 0 0 0 0 0 0 0 0

Technical Information

Amperage
2 Amp
Applications
ZELIO RELAY
Dielectric Strength
2500 V
Impedance
3500 ohm
Line Rated Current
2 A
Maximum Load Current
0.072 A
Net Weight
0.004 kg
Number of Phases
1 Phase
Operating Temperature
-20-80 Adegrees C
Output Voltage
24-280 V
Response Time
0.5 cycle (turn-off);0.1 ms (turn-on)
Short Circuit Current Ratng
5000 A
Size
15 MM,28 MM,5 MM
Storage Temperature
-20-85 degrees C
Type
SOLID STATE RELAY

Manufacturer Information

Brand
Schneider Electric
Sub Brand
SSL

General Product Info

12-Digit UPC
606480579731
GTiN
03606480579738
Product UPC
78590164102
Weight
0.004 kg

Dimensions

Depth
15 mm
Height
28 mm
Width
5 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL
Country of Origin
China
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • SSLZVA1
  • RSLZ5
